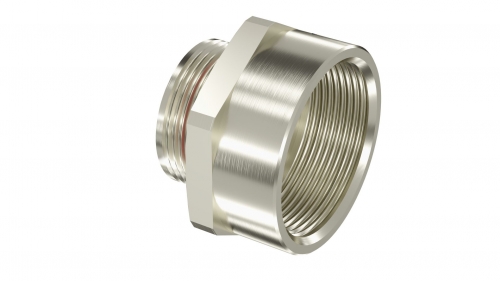

Explosion-proof Ex d e reduction male-female. Type B. ""Male"" M25x1,5 - ""Female"" M50x1,5. Stain-less steel AISI316L. IP66/67/68"
Code:
EXDR-M25M50SX
Code:
EXDR-M25M50SX
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Material quality | Stainless steel others |
| Thread type | Metric |
| For Ex-Zone dust | 21, 22 |
| Shock resistant | Yes |
| Surface protection | Untreated |
| Type of sealing | Sealing ring |
| Pitch thread, mm | 1.5 |
| Flat cable coupling | No |
| Nominal thread size metric/PG | 25 |
| Suitable for cable diameter, mm | 20...20 |
| Material | Stainless steel AISI316L |
| Product type | To change to different types of thread |
| External thread | М25х1,5 |
| Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
| Inside diameter of the through hole, mm | М50х1,5 |
| Temperature range during operation, °С | From -65 to +130 |
