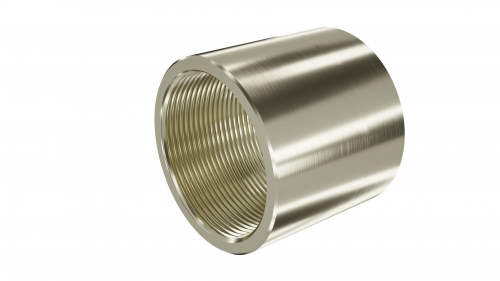

Explosion-proof Ex e coupling.М40x1,5. Nickel-plated brass. IP66/67

Code: EX6003-40

Explosion-proof Ex e coupling.М40x1,5. Nickel-plated brass. IP66/67

Code: EX6003-40
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust 21, 22
Shock resistant Yes
Material Nickel plated brass
Accessory The connection of the two couplings
External thread M40х1,5 Metric
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
Temperature range during operation, °С From - 45 to +85
Product type For connecting steel pipes with external threads
Inside diameter of the through hole, mm 40
