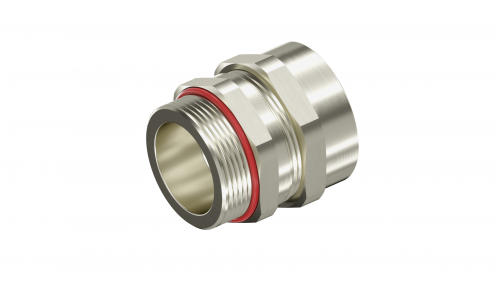

ANS explosion-proof cable gland for unarmoured cable, single sealing M20x1,5 D5,5-13mm. Stain-less steel AISI316L. IP66/68

Code: 6018ANSBKGM2SX
Type of a cable gland for: unarmored cable
type of thread M20х1,5 Metric
Diameter of cable, mm from 5,5 to 13
Marking II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db
Ambient temperature range during operation, ° C from - 65 to +130
Material Stainless steel
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
