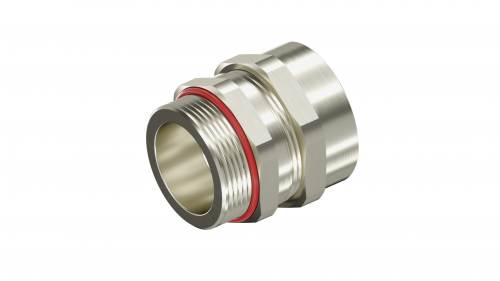

ANS explosion-proof cable gland for unarmoured cable, single sealing M16x1,5 D5-10mm. Stain-less steel AISI316L. IP66/68
Code:
6018ANSAKGM1SX
Code:
6018ANSAKGM1SX
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Material quality | Stainless steel others |
| Thread type | Metric |
| For Ex-Zone dust | 20, 21, 22 |
| Shock resistant | Yes |
| Surface protection | Untreated |
| Type of sealing | Sealing ring |
| Pitch thread, mm | 1.5 |
| Flat cable coupling | No |
| Suitable for cable diameter, mm | 10...10 |
| Nominal thread size metric/PG | 16 |
| Type of a cable gland for: | unarmored cable |
| Threading | M16х1,5 Metric |
| Diameter of cable, mm | from 5 to 10 |
| Marking | II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db |
| Temperature range during operation, °С | from - 65 to +130 |
| Product type | Cable input for tubes |
| Type of a cable gland for: | unarmored cable |
| Material | AISI 316L |
