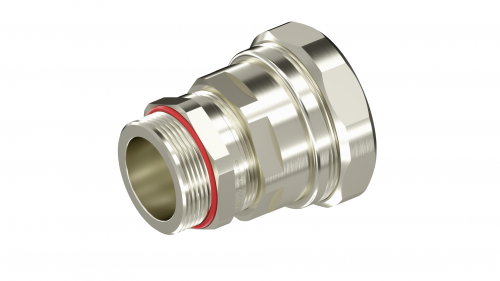

ANP explosion-proof cable gland for unarmoured cable into flexible tube, single sealing M20x1,5 D8-13mm, Dn20mm. Nickel-plated brass. IP66/68

Code: 6018ANP22BKM2SB
Code: 6018ANP22BKM2SB
  • To ask a question
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust 20, 21, 22
Shock resistant Yes
Type of sealing Sealing ring
Pitch thread, mm 1.5
Flat cable coupling No
Suitable for cable diameter, mm 5.5...13
Nominal thread size metric/PG 20
Type of a cable gland for: unarmored cable in a flexible conduit
Threading M20х1,5 Metric
Diameter of cable, mm from 8 to 13
Marking II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db
CF494428 20
Temperature range during operation, °С from - 65 to +130
Product type Cable input for tubes
Type of a cable gland for: unarmored cable in a flexible conduit
Material Nickel plated brass
