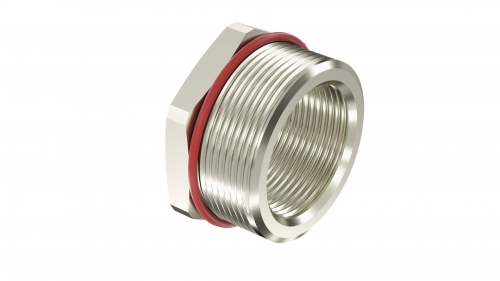

Explosion-proof Ex d e reduction male-female. Type A. ""Female"" M40x1,5 - ""Male"" M25x1,5. Stain-less steel AISI316L. IP66/67/68"
Code:
EXDR-M40M25SX
Explosion-proof Ex d e reduction male-female. Type A. ""Female"" M40x1,5 - ""Male"" M25x1,5. Stain-less steel AISI316L. IP66/67/68"
Code:
EXDR-M40M25SX
Material | Metal |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
Explosion-tested version | Yes |
Colour | Light grey |
Model | Straight |
Halogen free | Yes |
Material quality | Stainless steel others |
Thread type | Metric |
For Ex-Zone dust | 21, 22 |
Shock resistant | Yes |
Material | Stainless steel AISI316L |
Product type | To change to different types of thread |
Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
External thread | М40х1,5 |
Internal thread | М25х1,5 |
Temperature range during operation, °С | From -65 to +130 |
