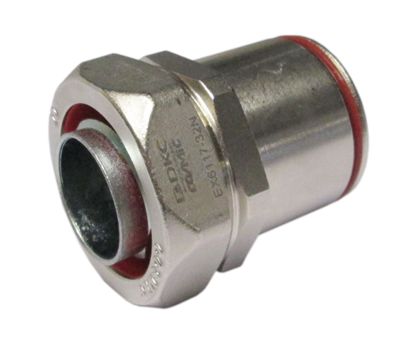

Accessory rigid conduit-flexible conduit connector, for metal conduit system Cosmec. Rigid conduit 32 mm. Flexible conduit 26,5.Nickel-plated brass. IP66/67
Material | Metal |
Degree of protection (IP) | IP66 |
For Ex-zone gas | 1, 2 |
Explosion-tested version | Yes |
Colour | Light grey |
Model | Straight |
Halogen free | Yes |
Surface protection | Nickel-plated |
Material quality | Brass |
Thread type | Gas-thread |
For Ex-Zone dust | 21, 22 |
Shock resistant | Yes |
Material | Nickel plated brass |
type of a coupling for: | The rigid conduit-the flexible conduit |
Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
CF494428 | 26 |
Nominal diameter of the rigid conduit, mm | 32 |
Temperature range during operation, °С | from - 45 to +85 |
Inside diameter of the through hole, mm | 24 |
Product type | Cable fitting |
