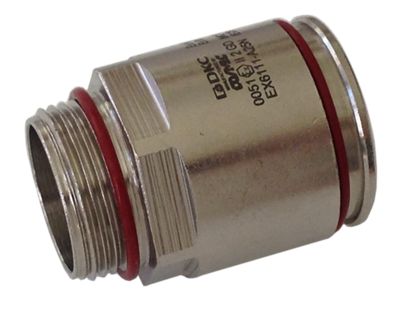

Explosion-proof Ex e conduit-box connector male thread. Diameter conduit 32 mm. Male thread M32x1,5. Nickel-plated brass. IP66/67
Code:
EX6111-A32N
Code:
EX6111-A32N
| Construction type | External thread |
| Nominal diameter, mm | 32 |
| Thread connection size | M32 x 1.5 |
| Model | Straight |
| Degree of protection (IP) | IP66/IP67 |
| Material | Nickel plated brass |
| type of a coupling for: | The rigid conduit - junction box |
| Threading | M32х1,5 Metric |
| Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
| Nominal diameter of the rigid conduit, mm | 32 |
| Temperature range during operation, °С | from - 45 to +85 |
| Inside diameter of the through hole, mm | 27.5 |
| Product type | Cable fitting |
| Inside diameter of the through hole, mm | 27.5 |
| Russian Classification of Products by Economic Activities (OKPD 2) | 25.99.29.190 |
| Commodity Nomenclature of Foreign Economic Activity | 7412200000 |
