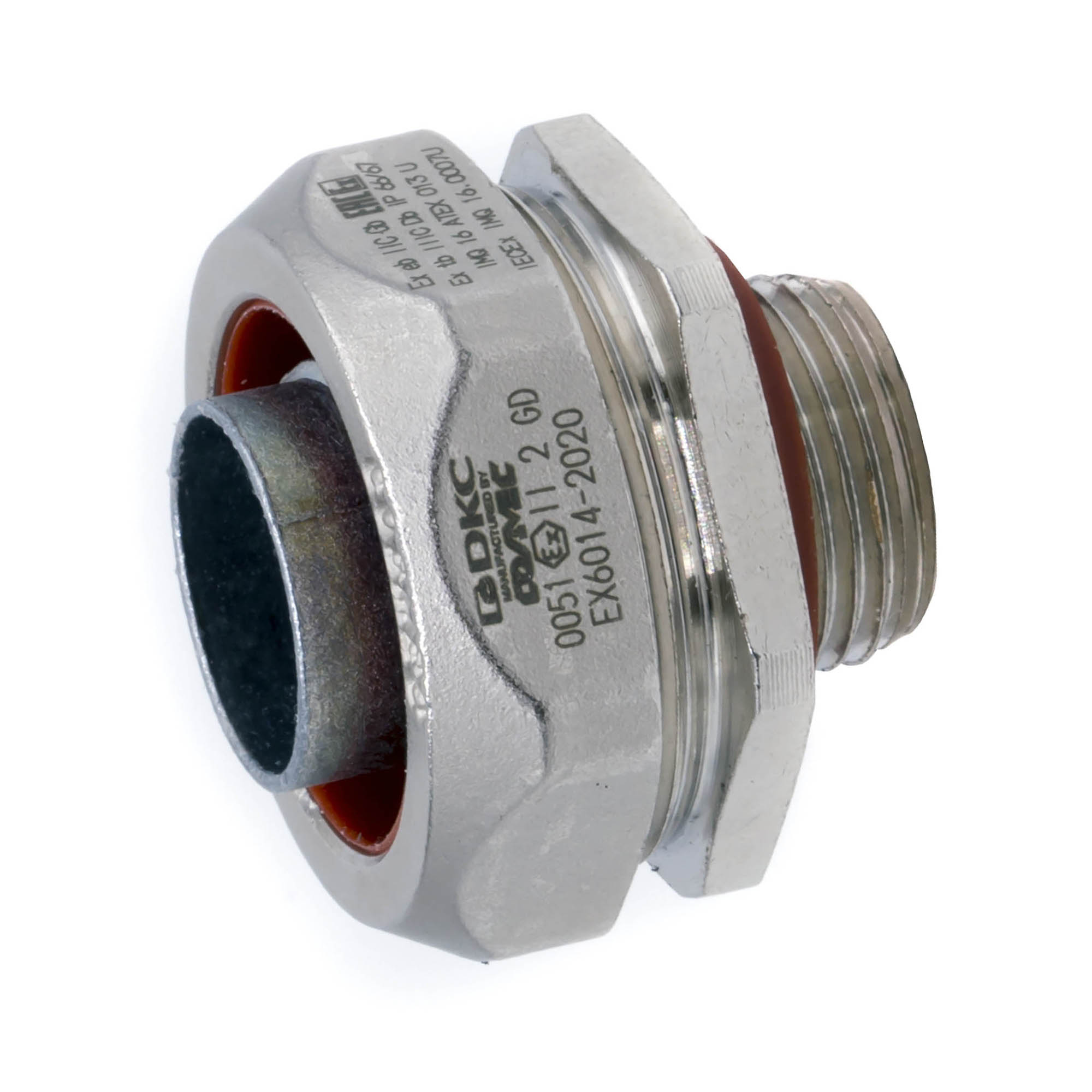

Explosion proof fitting flexible conduit-enclosure. DN40 mm. M40х1,5.Stainless steel AISI 316L. IP66/67
Code:
EX6014XX40A
Code:
EX6014XX40A
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Shock resistant | Yes |
| Surface protection | Untreated |
| Thread type | Metric |
| Material | Metal |
| Explosion-tested version | Yes |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Type of sealing | Sealing ring |
| Material quality | Stainless steel others |
| Pitch thread, mm | 1.5 |
| Flat cable coupling | No |
| Nominal thread size metric/PG | 40 |
| Suitable for cable diameter, mm | 35...35 |
| Material | AISI 316L |
| type of a coupling for: | The flexible conduit - junction box |
| Threading | M40х1,5 Metric |
| Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
| Nominal diameter of the flexible conduit, mm | 40 |
| Temperature range during operation, °С | from - 45 to +85 |
| Inside diameter of the through hole, mm | 34 |
| Product type | Cable fitting |
