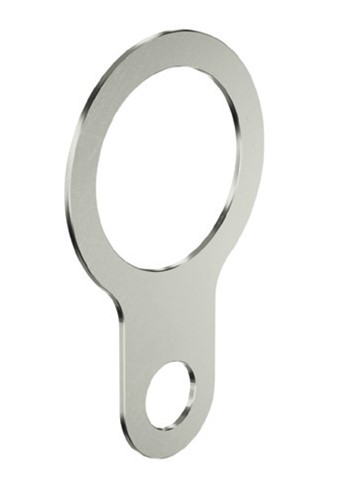

Earth tag for cable glands M20. Ni
Code: 6340.01.002015
Earth tag for cable glands M20. Ni
Code: 6340.01.002015
| Outer diameter, mm | 28.6 |
| Inner diameter, mm | 20.2 |
| Thickness, mm | 1.5 |
| Material | Stainless steel |
| Hardened | No |
| Hole for cable gland | М20х1,5 |
| Material | Stainless steel AISI 304 |
| Ground screw hole | 6,2 mm |
| Length | 53,6 mm |
| Type of accessories | Ground ring |
| Product type | Ground ring |
| Hole for cable gland, A | M20х1,5 |
| Ground screw hole, D | 6,2 mm |
| Length, E | 53,6 mm |
| Temperature range during operation, °С | From - 65 to +150 |
