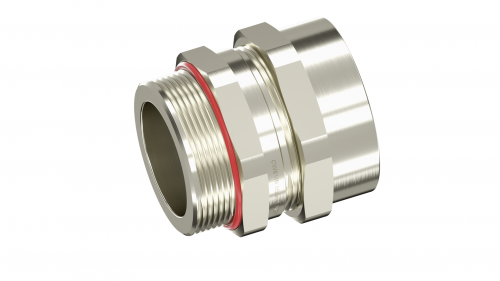

AAS explosion-proof cable gland for armoured cable, single sealing M32x1,5 D15-24mm. Stain-less steel AISI316L. IP66/68
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Material quality | Stainless steel others |
| Thread type | Metric |
| For Ex-Zone dust | 20, 21, 22 |
| Shock resistant | Yes |
| Type of a cable gland for: | armored cable, single seal |
| Threading | M32х1,5 Metric |
| Diameter of cable, mm | from 15 to 24 |
| Marking | II 2G Ex db IIC Gb / II 2G Ex eb II Gb / II 2D Ex tb IIIC Db |
| Temperature range during operation, °С | from - 65 to +130 |
| Product type | Cable input for tubes |
| Type of a cable gland for: | armored cable, single seal |
| Material | AISI 316L |
