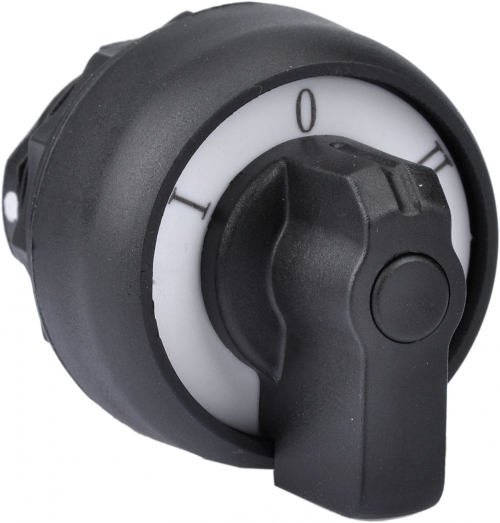

Explosion-proof operation head-switch. Marking "I-0-II". Direction ofkeyslot 0°.
Code:
2361.1804.622.04
Code:
2361.1804.622.04
| Hole diameter, mm | 30.6 |
| Number of switch positions | 3 |
| Number of command positions | 1 |
| Diameter cap, mm | 39 |
| Type of button | Other |
| Width opening, mm | 30.6 |
| Height opening, mm | 30.6 |
| Switching function latching | Yes |
| Colour front ring | Natural colour |
| Material front ring | Plastic |
| Colour button | Black |
| Degree of protection (IP), front side | IP66 |
| Suitable for illumination | No |
| Spring-return | No |
| Construction type lens | Other |
| Type of element | I–>0<–II |
| Marking | Ex e IIС Gb U; Ex tb IIIC Db U |
| Degree of protection | 66 |
| Color | Black |
| Temperature range | From –60 to +60 °C |
| Control element | Switch |
