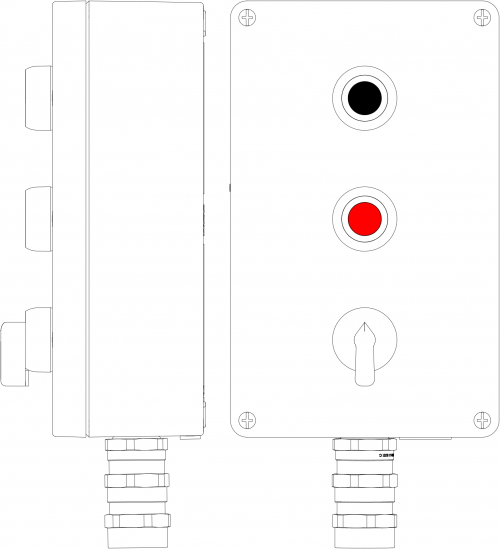

Aluminum terminal post 260x160x90мм 1Ex d e IIC Т4 Gb X / Ex tb IIIB T130°C Db X IP66 Temperature Classes Т4 55°C Quantity of control elements: Contact block 2NO + Button P1 Black 1 pcs. Contact block 2NC + Button P1 Red 1 pcs. Contact block 2NO + Switch
Code:
2201.181.20.00C
Code:
2201.181.20.00C
| Ex-class | IIC |
| Number of command positions | 3 |
| Suitable for emergency stop | No |
| Material housing | Metal |
| Number of push buttons | 4 |
| Number of selector switches | 1 |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as normally open contact | 4 |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Element controls 1 | Push-button |
| Type 1 element | 1 pc. x P1 Black 2NO |
| Element controls 2 | Push-button |
| Type 2 element | 1 pc. x P1 red 2NC |
| Element controls 3 | Switch |
| Type 3 element | 1 pc. x КВ «I-0-II» 2NO |
| Type of a cable gland for: | Armored cable |
| Installation side: C | 1 pc. x outer D: 9-17 mm / inner d: 5,8-12 mm |
| Material | Aluminium alloy |
| Ex | d e, tb |
| Electrical equipment group | IIC hydrogen |
| Geometric dimensions | 260x160x90 mm |
| Number of controls | 3 pcs. |
