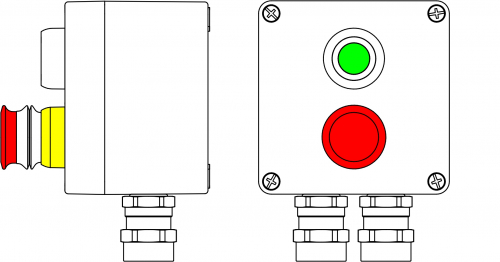

Aluminum terminal post 120x120x90мм (1Ex d e IIC T6 Gb X / Ex tb IIIB T80°C Db X / IP66)Temperature Classes Т6 40°CQuantity ofcontrol elements:Contact block 1NC/1NO + Danger button P3E Red 1 pcs.Contact block 1NC/1NO + Button P1 Green 1 pcs.Quantity ofcla

Code: 2201.121.19.03L
  • To ask a question
Operating temperature, °C -60…40
Explosion-tested version Yes
Degree of protection (IP) IP66
For Ex-zone gas 0, 1, 2
For Ex-Zone dust 20, 21, 22
Impact strength IK07
Material Aluminium alloy
Geometric dimensions, mm 120x120x90
Ex d e, tb
Electrical equipment group IIC hydrogen
