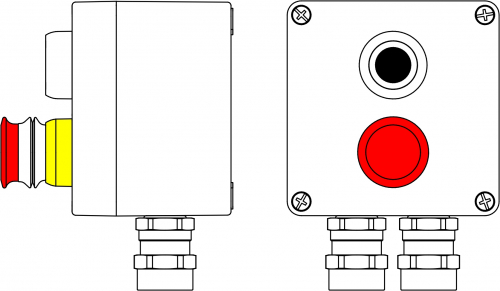

Aluminum terminal post 120x120x90мм (1Ex d e IIC T6 Gb X / Ex tb IIIB T80°C Db X / IP66)Temperature Classes Т6 40°CQuantity of control elements:Contact block 1NC/1NO + Danger button P3E Red 1 pcs.Contact block 1NC/1NO + Button P1 Black 1 pcs.Quantity of c

Code: 2201.121.19.03J
Aluminum terminal post 120x120x90мм (1Ex d e IIC T6 Gb X / Ex tb IIIB T80°C Db X / IP66)Temperature Classes Т6 40°CQuantity of control elements:Contact block 1NC/1NO + Danger button P3E Red 1 pcs.Contact block 1NC/1NO + Button P1 Black 1 pcs.Quantity of c
Aluminum terminal post 120x120x90мм (1Ex d e IIC T6 Gb X / Ex tb IIIB T80°C Db X / IP66)Temperature Classes Т6 40°CQuantity of control elements:Contact block 1NC/1NO + Danger button P3E Red 1 pcs.Contact block 1NC/1NO + Button P1 Black 1 pcs.Quantity of c
Code: 2201.121.19.03J
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Certificates
  • Promo
  • Viewed items
Ex-class IIC
Number of command positions 2
Suitable for emergency stop Yes
Material housing Metal
Number of push buttons 3
Number of mushroom-shaped push-buttons 1
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Element controls 1 Push-button
Type 1 element 1 pc. x P1 black 1NC+1NO
Element controls 2 Push-button
Type 2 element 1 pc. x emergency P3E 1NC+1NO
Type of a cable gland for: armored cable, single seal
Installation side: C 2 pcs. x outer D & inner d: 5,5-13 mm
Material Aluminium alloy
Ex d e, tb
Electrical equipment group IIC hydrogen
Geometric dimensions 120x120x90 mm
Number of controls 2 pcs.
