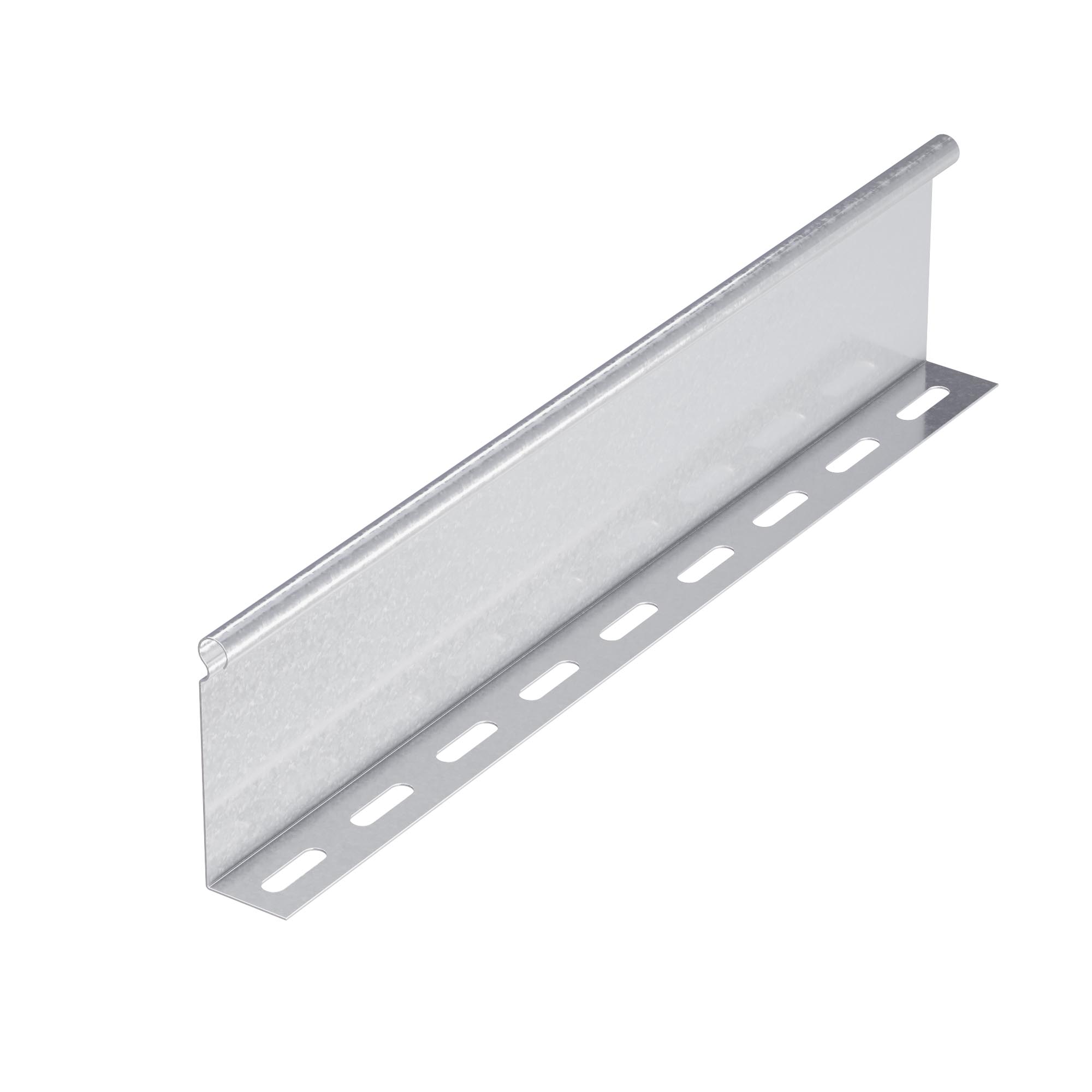

Code: SEP3035
No name
No name

No name

Code: SEP3035
Length, mm 3000
Material Steel
Type of fastening Screwable
Suitable for cable tray Yes
Partition height, mm 35
Mounting perforation Yes
Surface protection Sendzimir galvanized
Stainless steel, pickled Yes
Material quality Steel
Colour Light grey
Model L-profile
Suitable for wire mesh tray Yes
Product type Mounting accessories
Type of accessories Divider
Height 35 mm
Length 3000 mm
Thickness 0.7 mm
Material Pre-galvanized

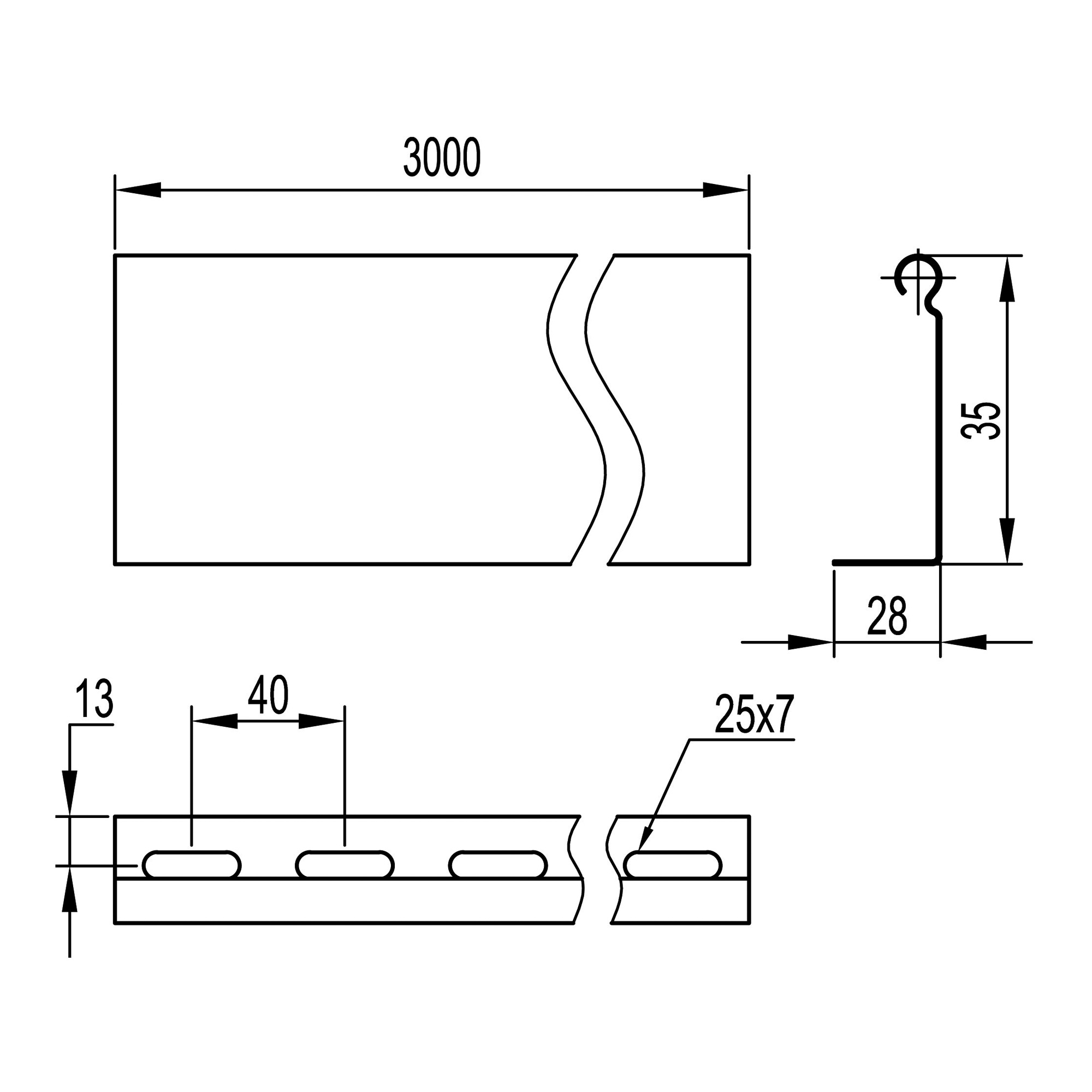

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
726.23 Kb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
16.42 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
11.67 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
5.28 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
11.99 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
17.15 Mb
