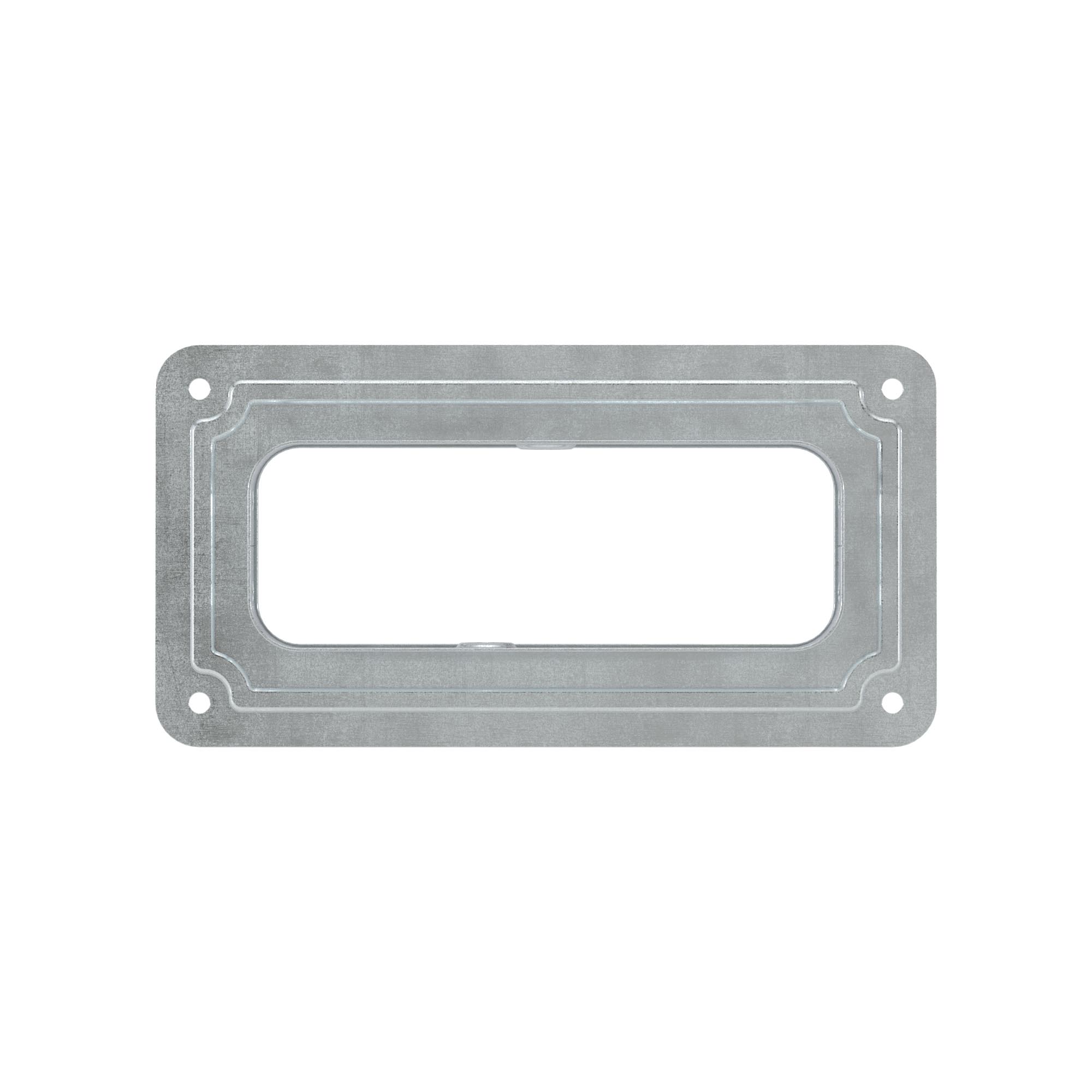

Connection Flange 100 x 80

Code: 37432
Connection Flange 100 x 80
Connection Flange 100 x 80

Connection Flange 100 x 80

Code: 37432
Colour Light grey
Surface protection Sendzimir galvanized
Material quality Steel
Material Steel
Cable tray width, mm 100
Cable tray height, mm 80
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Mounting accessories
Type of accessories Mounting accessories
Height 80 mm
Thickness 1 mm
Material Pre-galvanized
Width 100 mm
