Mounting angle plane 50 x 50

Code: 37410
Mounting angle plane 50 x 50
Mounting angle plane 50 x 50

Mounting angle plane 50 x 50

Code: 37410
Colour Light grey
Surface protection Sendzimir galvanized
Material quality Steel
Material Steel
Cable tray width, mm 50
Cable tray height, mm 50
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Mounting accessories
Type of accessories Mounting accessories
Height 50 mm
Thickness 1.0 mm
Material Pre-galvanized
Width 50 mm

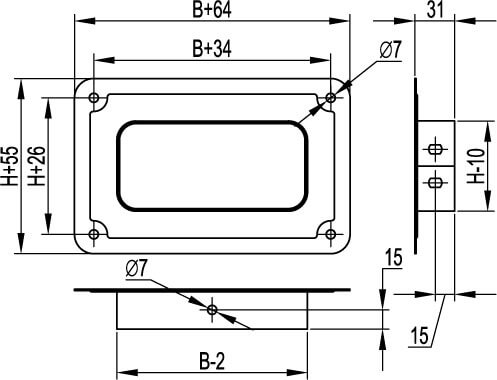

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
726.23 Kb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
16.42 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
11.67 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
5.28 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
RAR
11.99 Mb
Metal sheet trays - " S5 Combitech"
The system of metal trays of the "S5 Combitech"
ZIP
17.15 Mb
