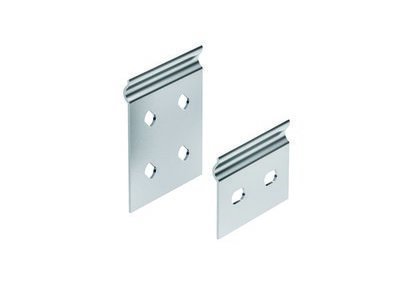

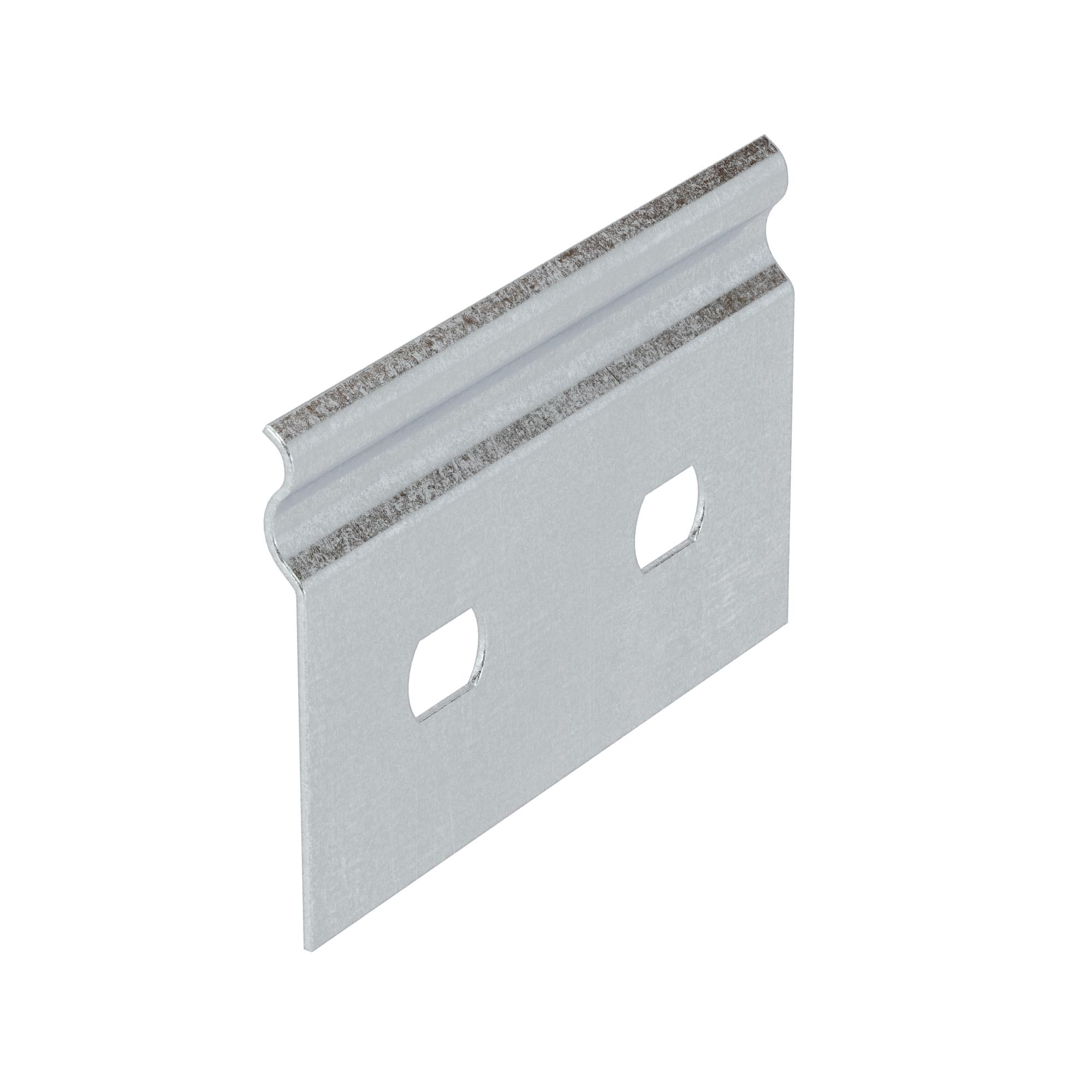

Joint Plate h. 50

Code: 37301
Joint Plate h. 50
Joint Plate h. 50
Material PVC
Height, mm 50
Thickness of metal sheet, mm 1
Surface protection Sendzimir galvanized
Material quality Other
Length, mm 65
Material Steel
Suitable for wire mesh tray No
Fitting for mesh cable tray filament, mm No
Suitable for cable ladder No
Suitable for cable duct Yes
Stainless steel, pickled No
Suitable for cable management system height, mm 50
Hinged joint horizontal No
Hinged joint vertical No
Suitable for circuit integrity No
Suitable for cable management system width, mm 50…600
Colour Light grey
Model Longitudinal joint
Type of connection Screw connector

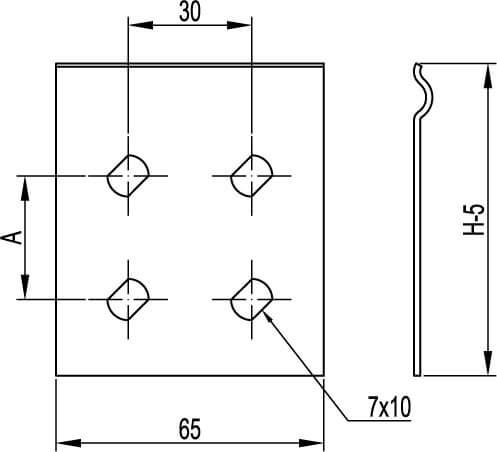

Drawings
