Mounting angle plate h 50

Code: 30199
Mounting angle plate h 50
Mounting angle plate h 50
Material PVC
Height, mm 30
Width, mm 30
Length, mm 30
Thickness of metal sheet, mm 1
Colour Light grey
Surface protection Sendzimir galvanized
Material quality Other
Material Steel
Cable tray width, mm 30
Cable tray height, mm 50
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No

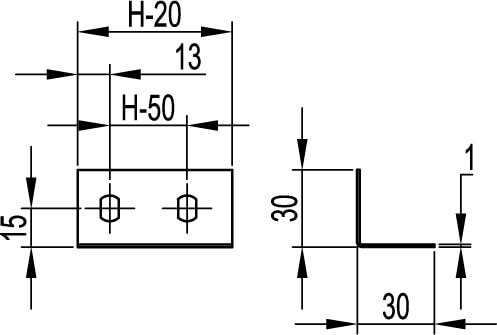

Drawings
