DL T-tapper 150x35, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: SFS3515KZL
DL T-tapper 150x35, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: SFS3515KZL
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Zinc lamellar coating |
| Material quality | Steel |
| Material | Steel |
| Inner radius, mm | 150 |
| Cable tray branch width, mm | 150 |
| Cable tray height, mm | 35 |
| NATO-mounting holes | No |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | Universal branch |
| Height | 35 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 150 mm |

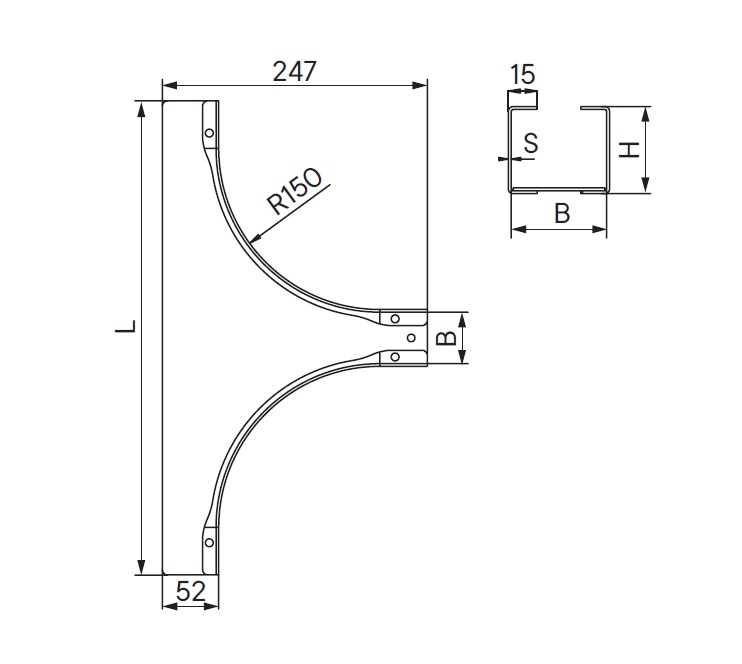

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
