Code: 37666KZL

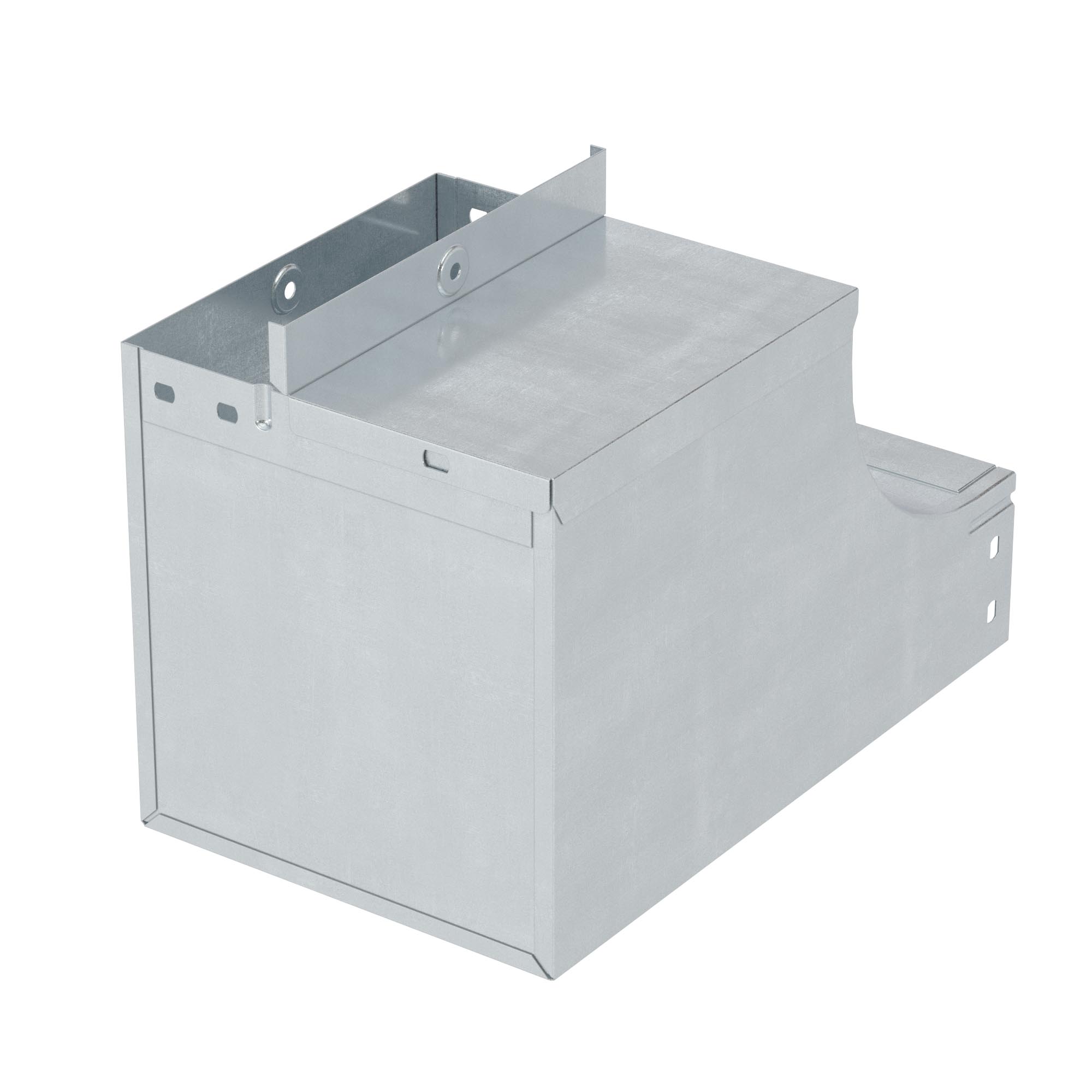

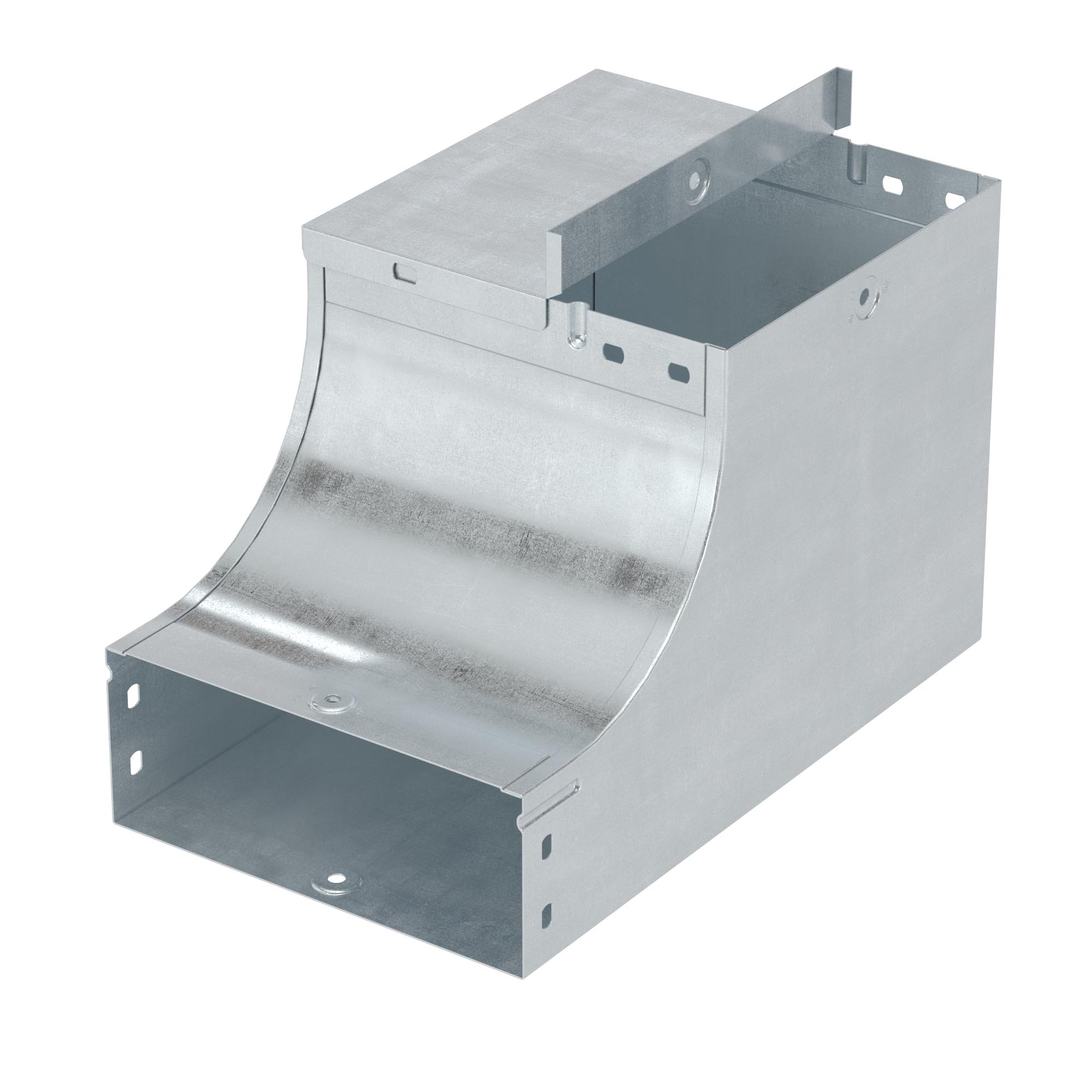

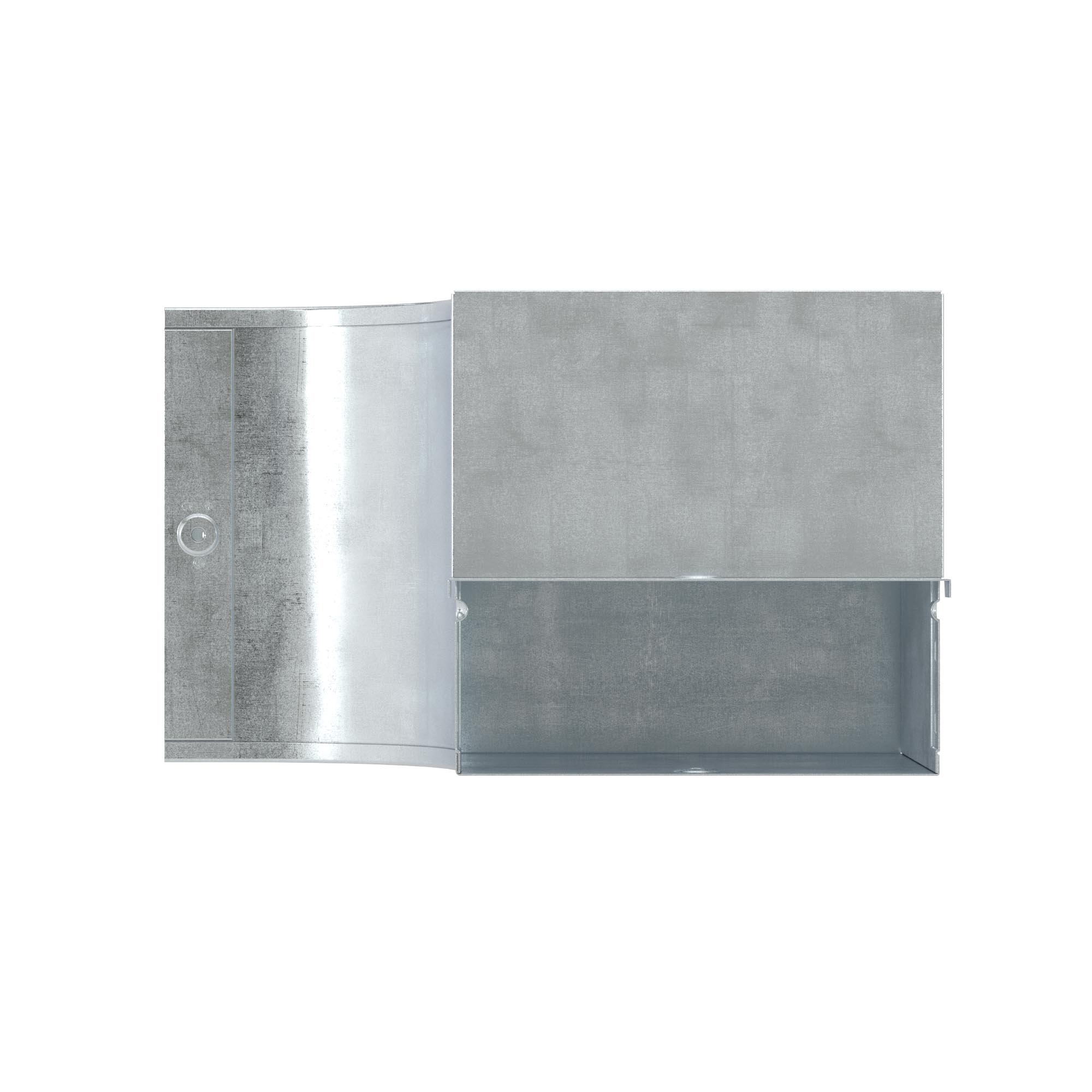

Internal vertical angle, CSSD 90 adapter 500x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal vertical angle, CSSD 90 adapter 500x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37666KZL
Removed from the product range . Proposed replacement: 37666KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

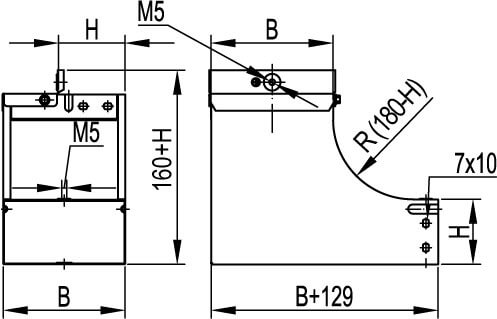

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 130
Cable tray width, mm 500
Cable tray height, mm 50
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Internal vertical angle, CSSD 90 adapter
Width 500 mm
Height 50 mm
Material Zinc-lamellated steel
