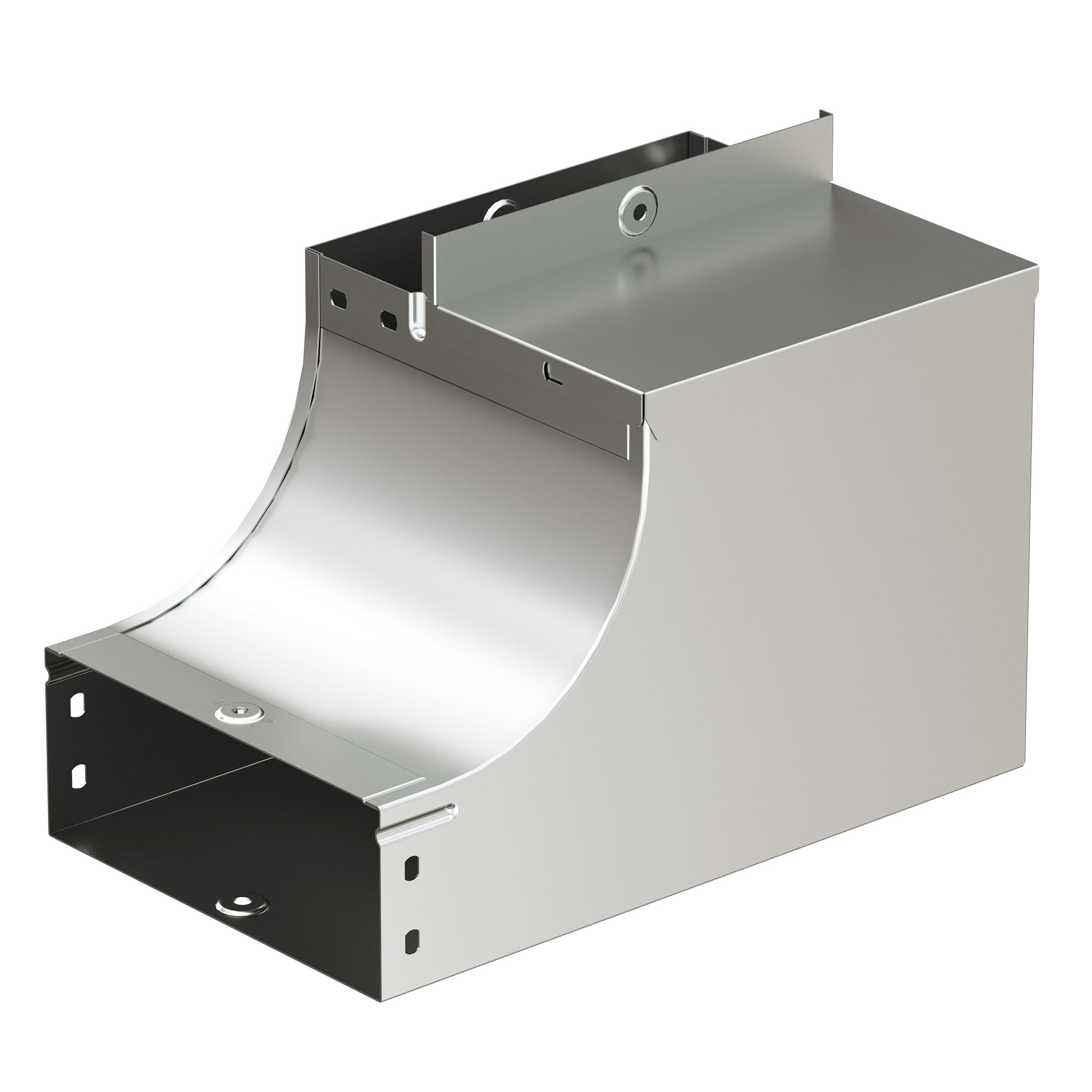

Internal vertical angle, 100x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37592KZL
Internal vertical angle, 100x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal vertical angle, 100x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37592KZL
Removed from the product range . Proposed replacement: 37592KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

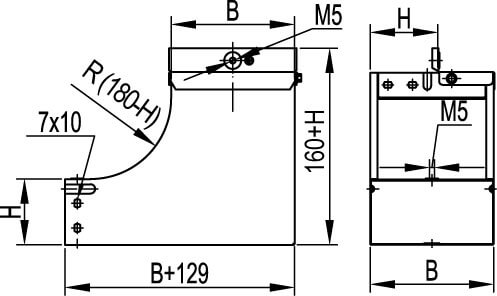

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 130
Cable tray width, mm 100
Cable tray height, mm 50
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Vertical inner angle, CSSD 90 adapter
Height 50 mm
Thickness 1.0 mm
Material Zinc-lamellated steel
Width 100 mm
