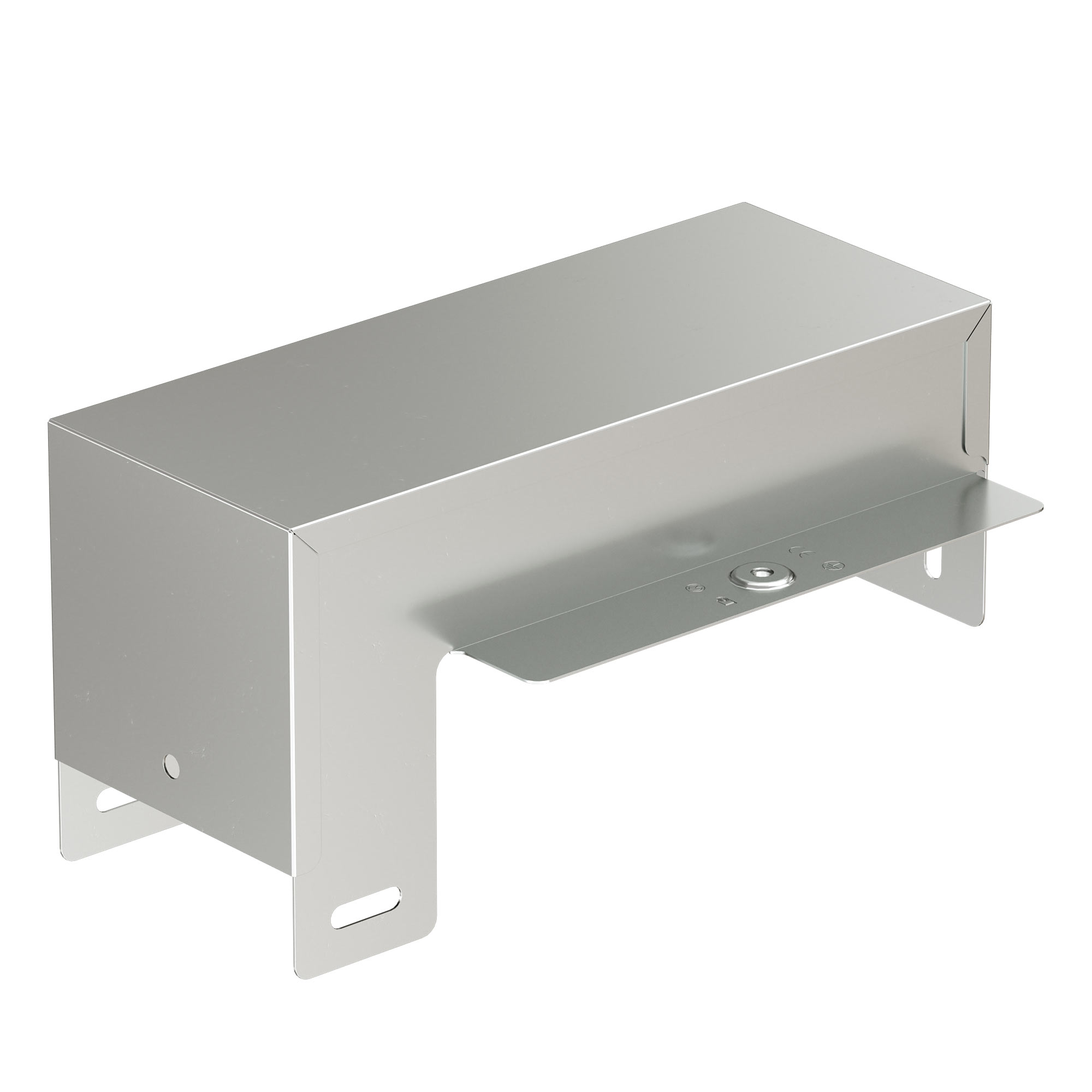

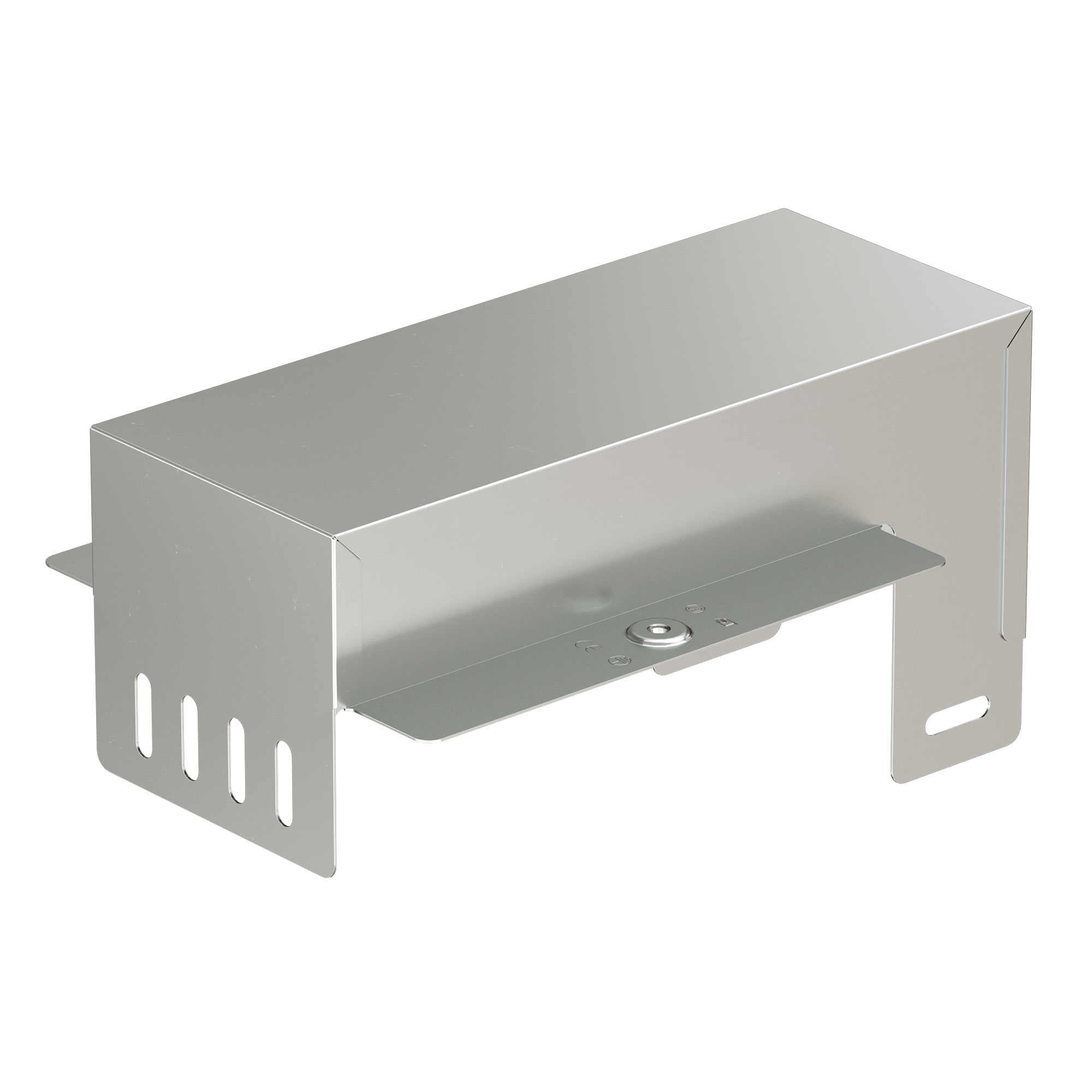

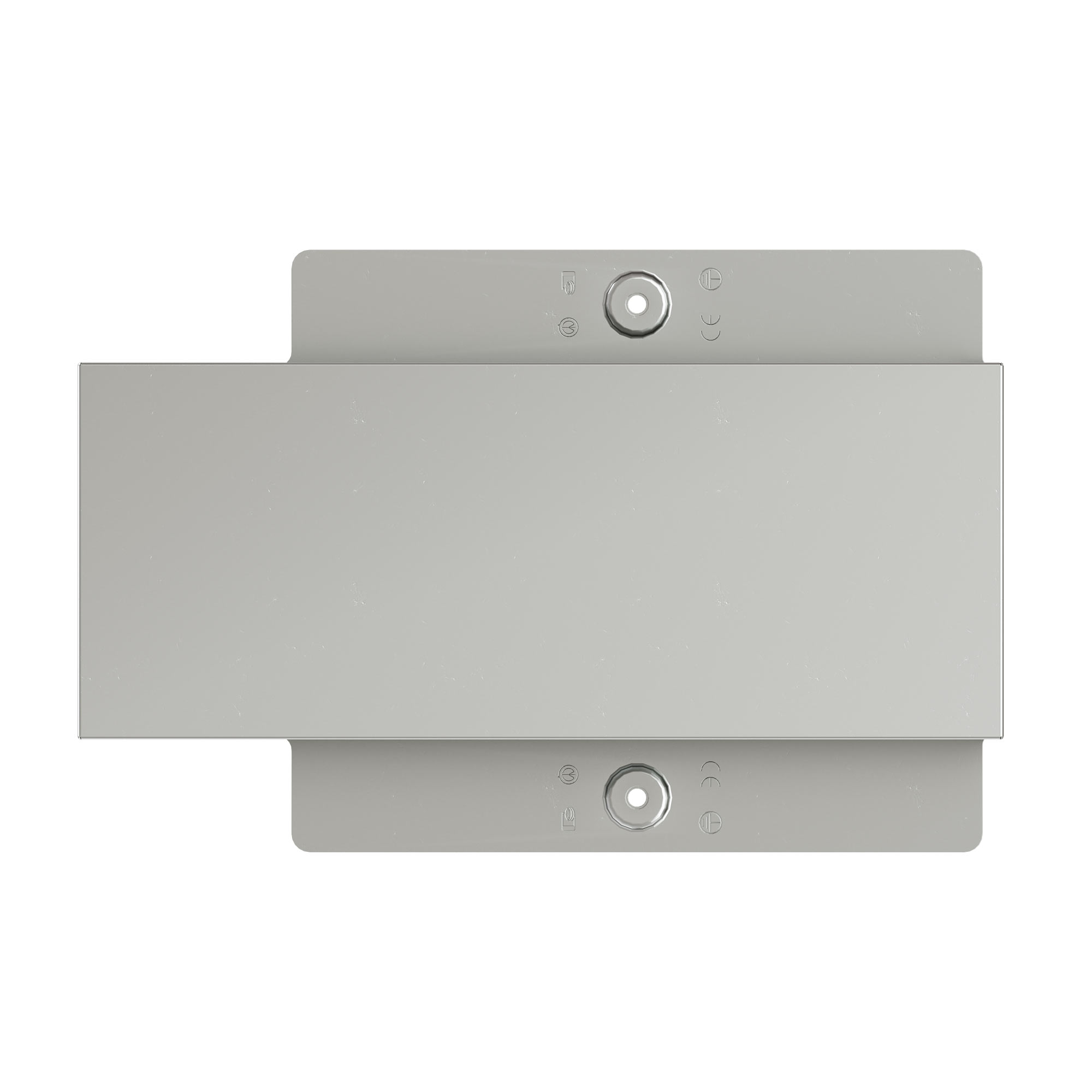

DDS downward vertical T-shaped tapper-cover, 100-50 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37378KZL
DDS downward vertical T-shaped tapper-cover, 100-50 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37378KZL
| Colour | Light grey |
| Height side wall, mm | 50 |
| Material | Steel |
| Tray width in horizontal direction, mm | 50 |
| Tray width in vertical direction, mm | 100 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Surface protection | Zinc lamellar coating |
| Material quality | Steel |
| Product type | Covers for system accessories |
| Type of accessories | DDS downward vertical T-shaped tapper-cover |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 100 mm |
Kit accessory’s structure

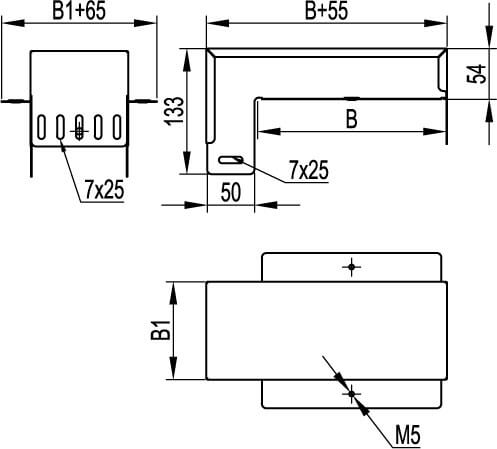

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
