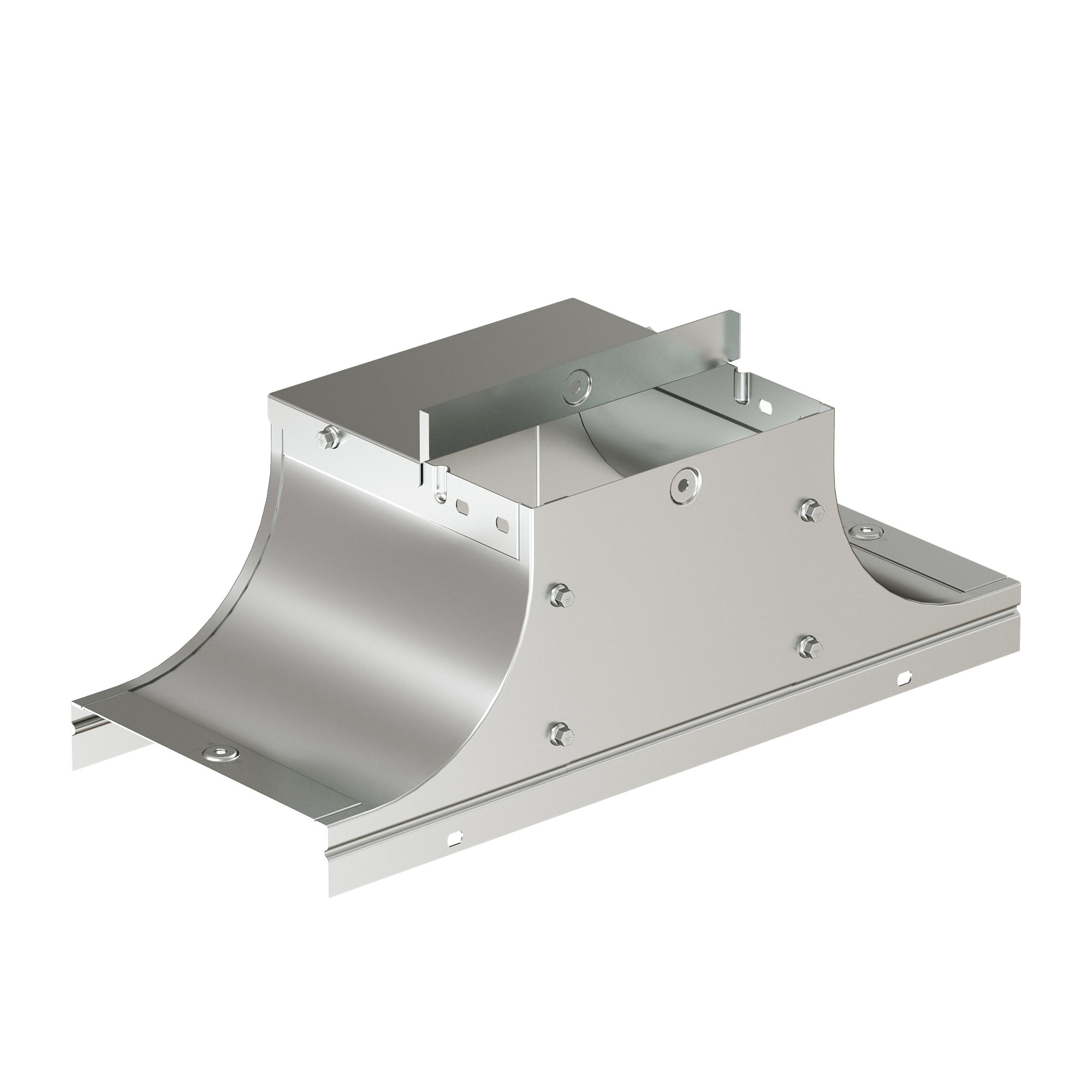

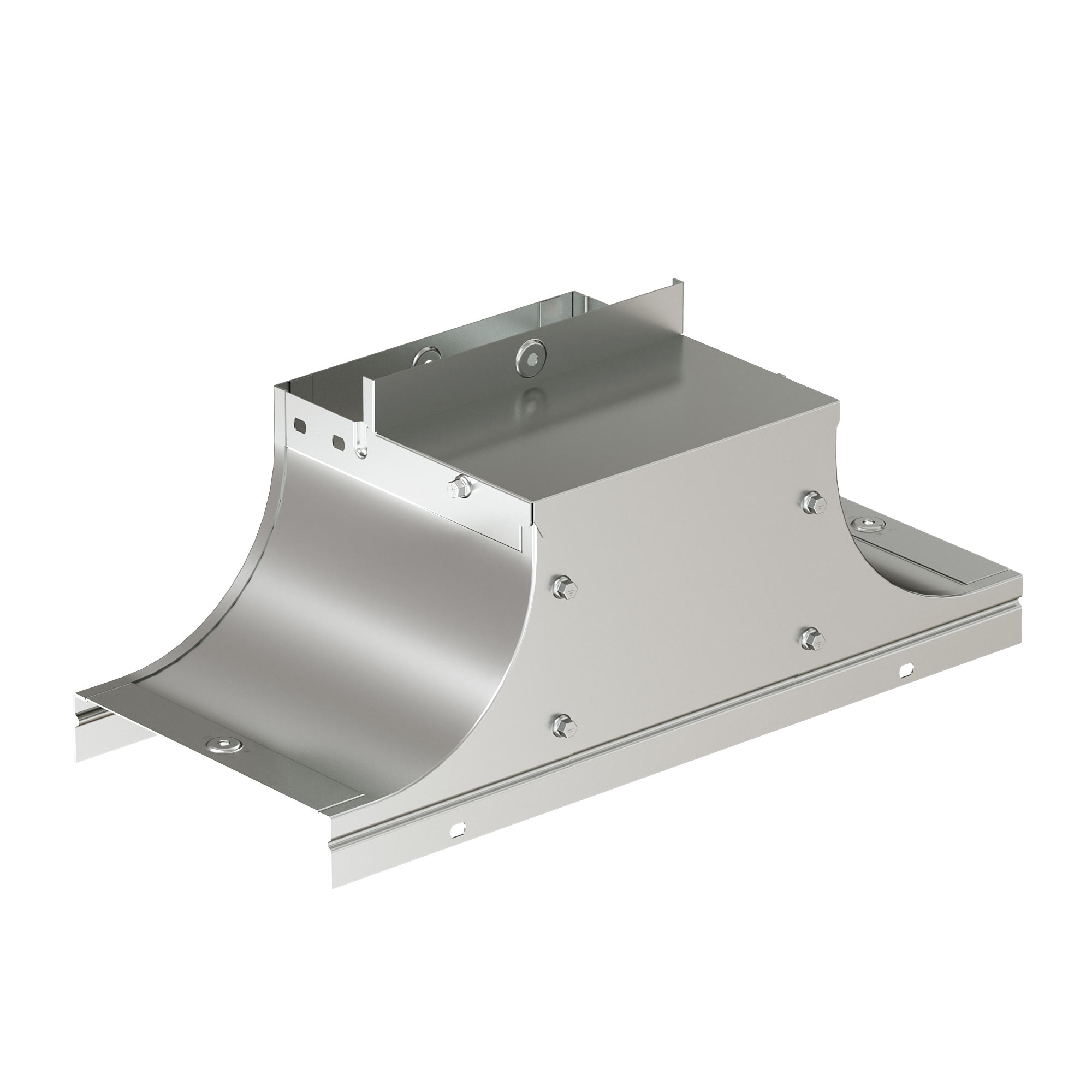

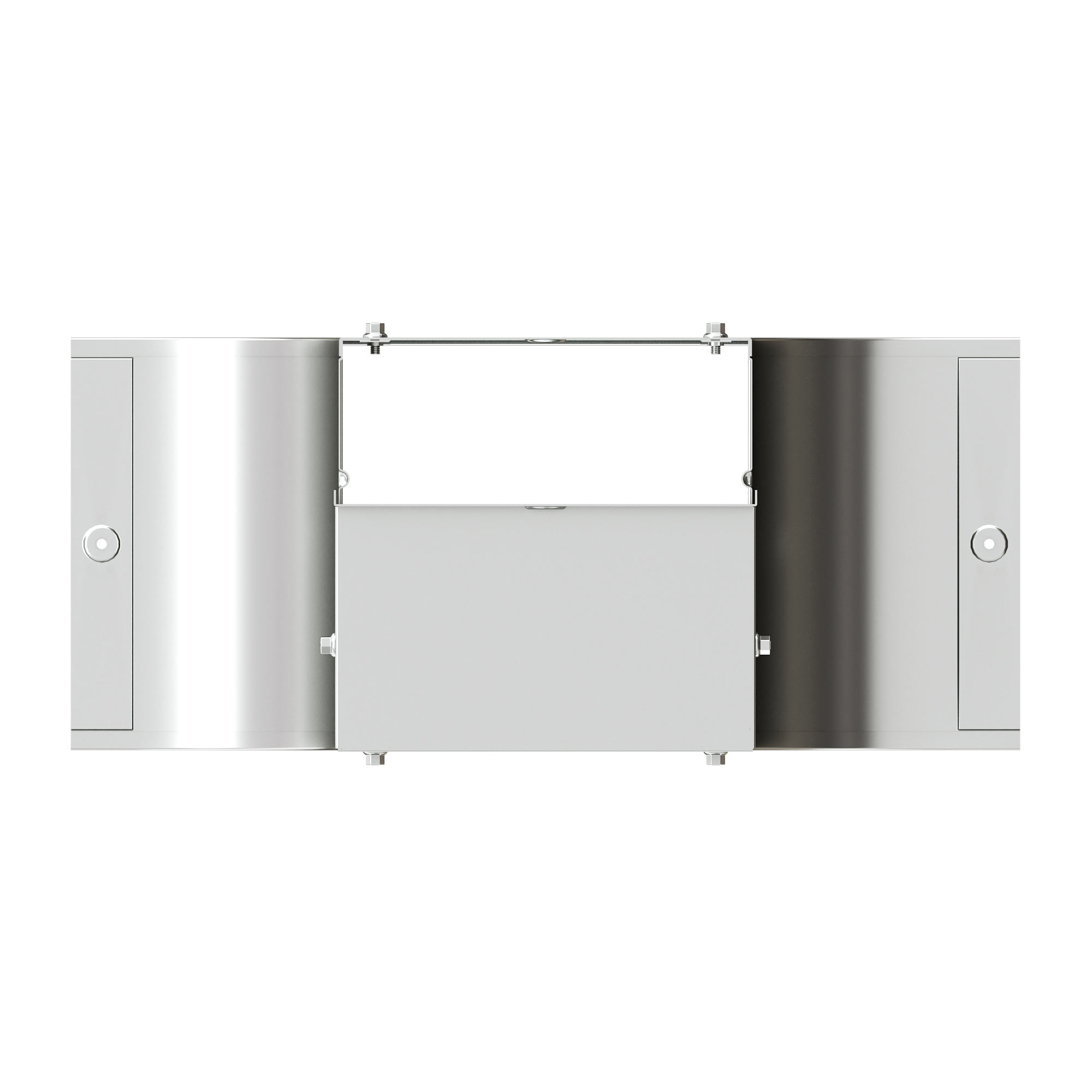

TSS tapper-cover (flat) 150x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
37233KZL
TSS tapper-cover (flat) 150x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
37233KZL
| Colour | Light grey |
| Height side wall, mm | 80 |
| Material | Steel |
| Tray width in horizontal direction, mm | 150 |
| Tray width in vertical direction, mm | 150 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Surface protection | Zinc lamellar coating |
| Material quality | Steel |
| Product type | Covers for system accessories |
| Type of accessories | Coder-branch TSS |
| Thickness | 1.0 mm |
| Material | Zinc-lamellated steel |
| Width | 150 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37303HDZL | Joint Plate h. 80 HDZL | 2 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 1 pcs |
| CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 14 pcs |
| CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 14 pcs |

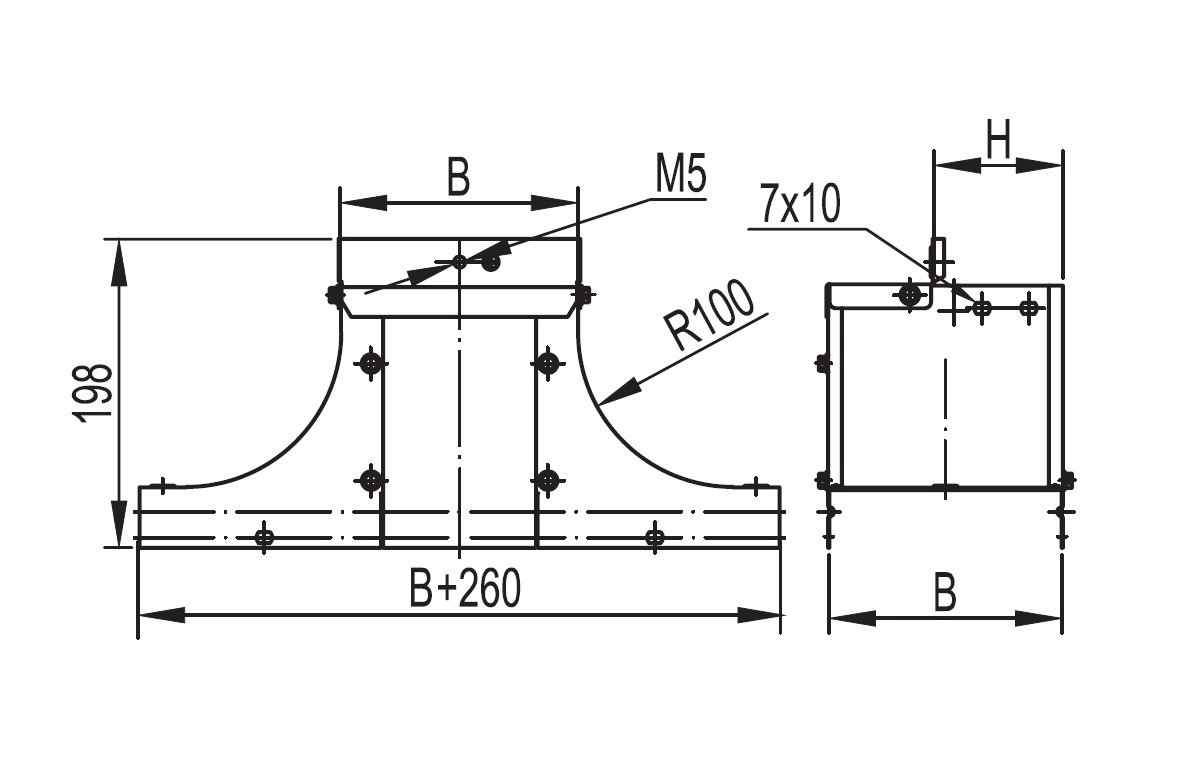

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
