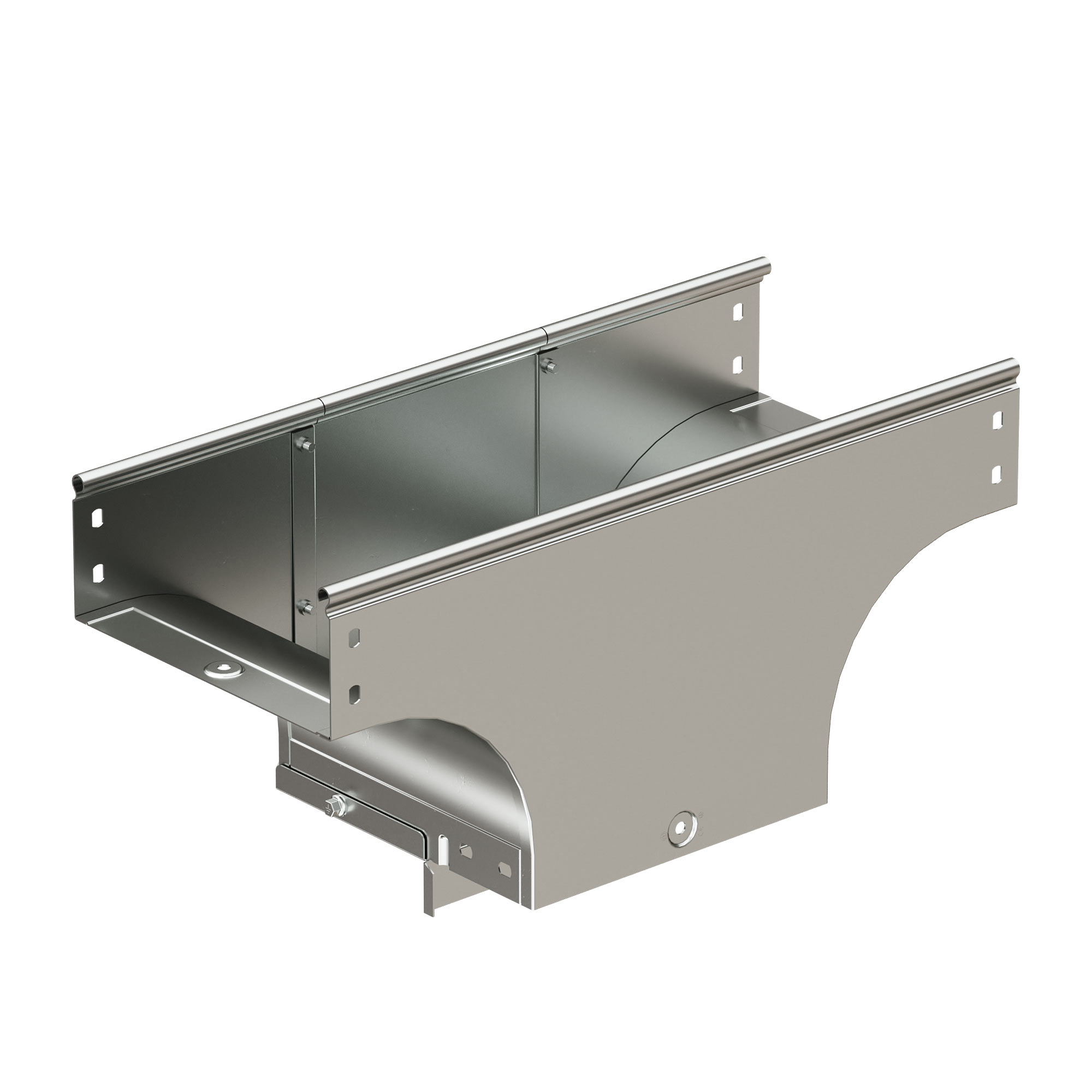

TDS vertical side T-tapper 200x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
37174KZL
TDS vertical side T-tapper 200x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
37174KZL
Colour | Light grey |
Height side wall, mm | 100 |
Material | Steel |
Tray width in horizontal direction, mm | 200 |
Tray width in vertical direction, mm | 200 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Surface protection | Zinc lamellar coating |
Material quality | Steel |
Product type | System accessories |
Type of accessories | T-branch vertical TDS |
Height | 100 mm |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 200 mm |
Kit accessory’s structure

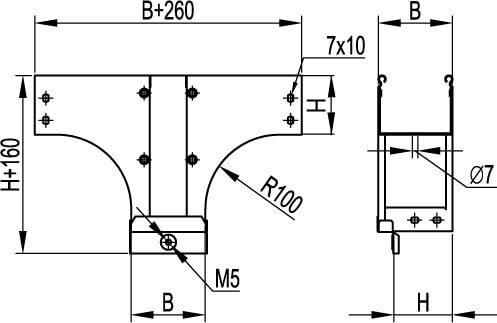

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
