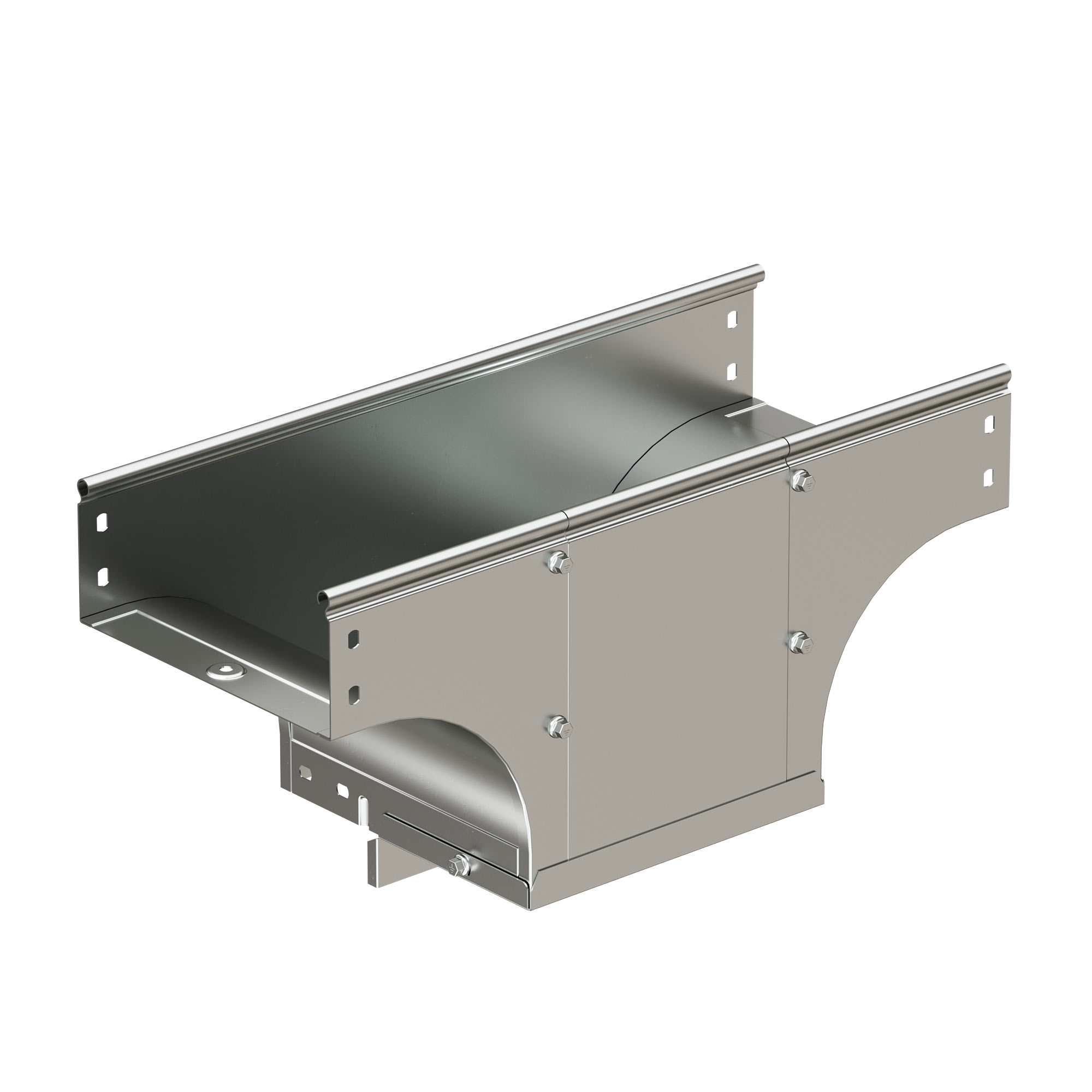

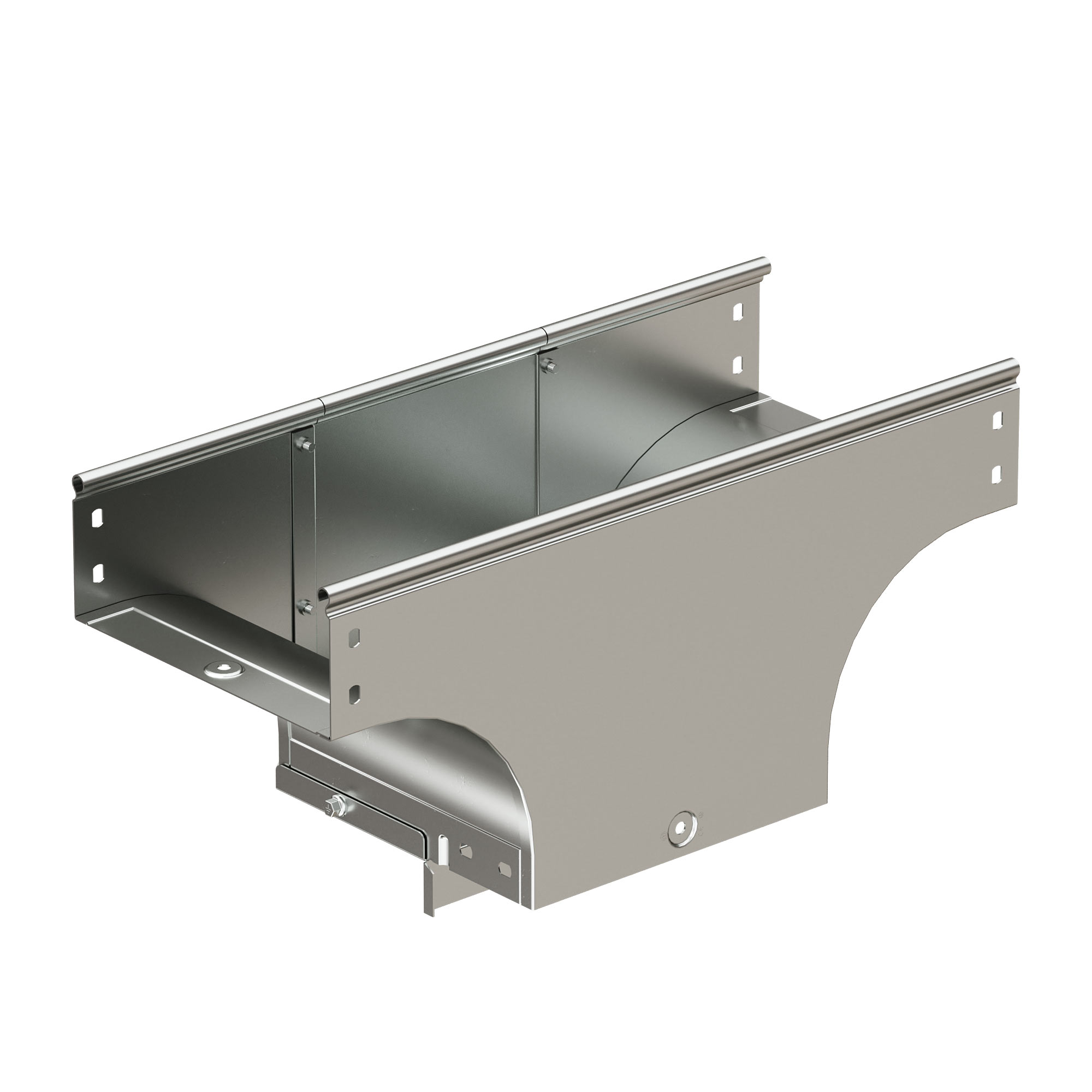

TDS vertical side T-tapper 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37173KZL
TDS vertical side T-tapper 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
TDS vertical side T-tapper 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37173KZL
Removed from the product range . Proposed replacement: 37173KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

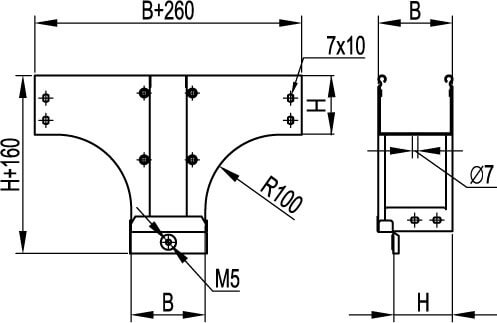

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Colour Light grey
Height side wall, mm 100
Material Steel
Tray width in horizontal direction, mm 150
Tray width in vertical direction, mm 150
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Surface protection Zinc lamellar coating
Material quality Steel
Product type System accessories
Type of accessories T-branch vertical TDS
Width 150 mm
Height 100 mm
Material Zinc-lamellated steel
