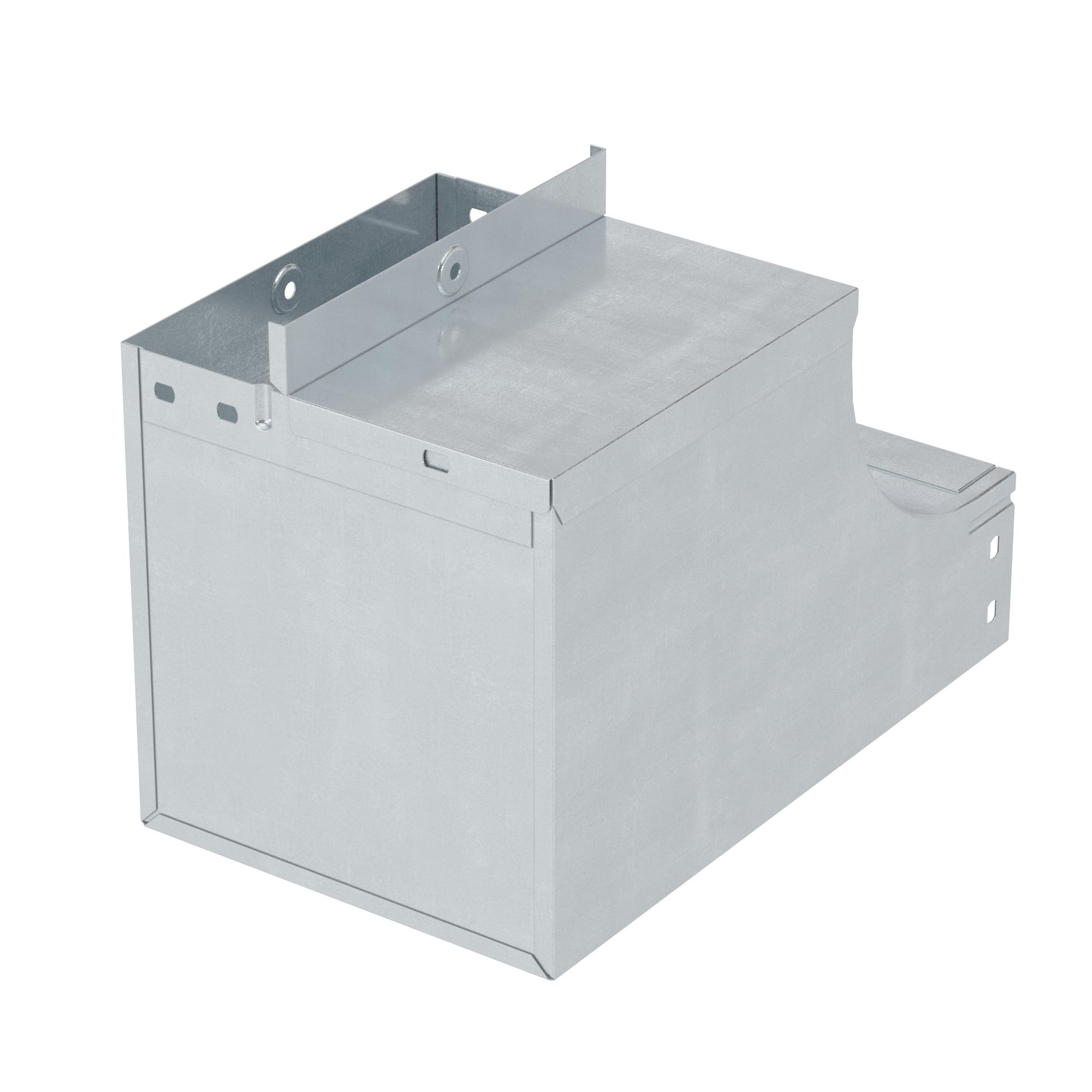

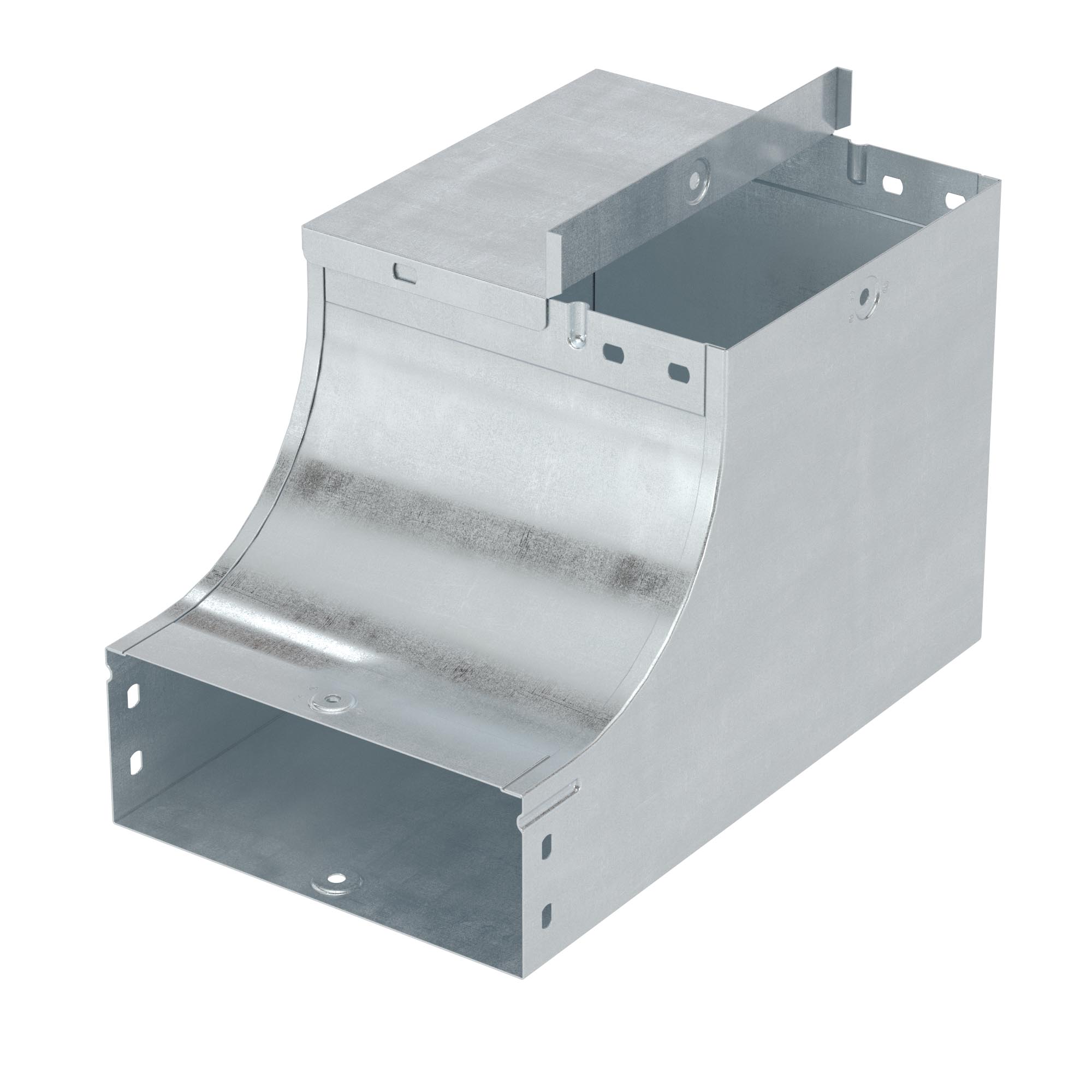

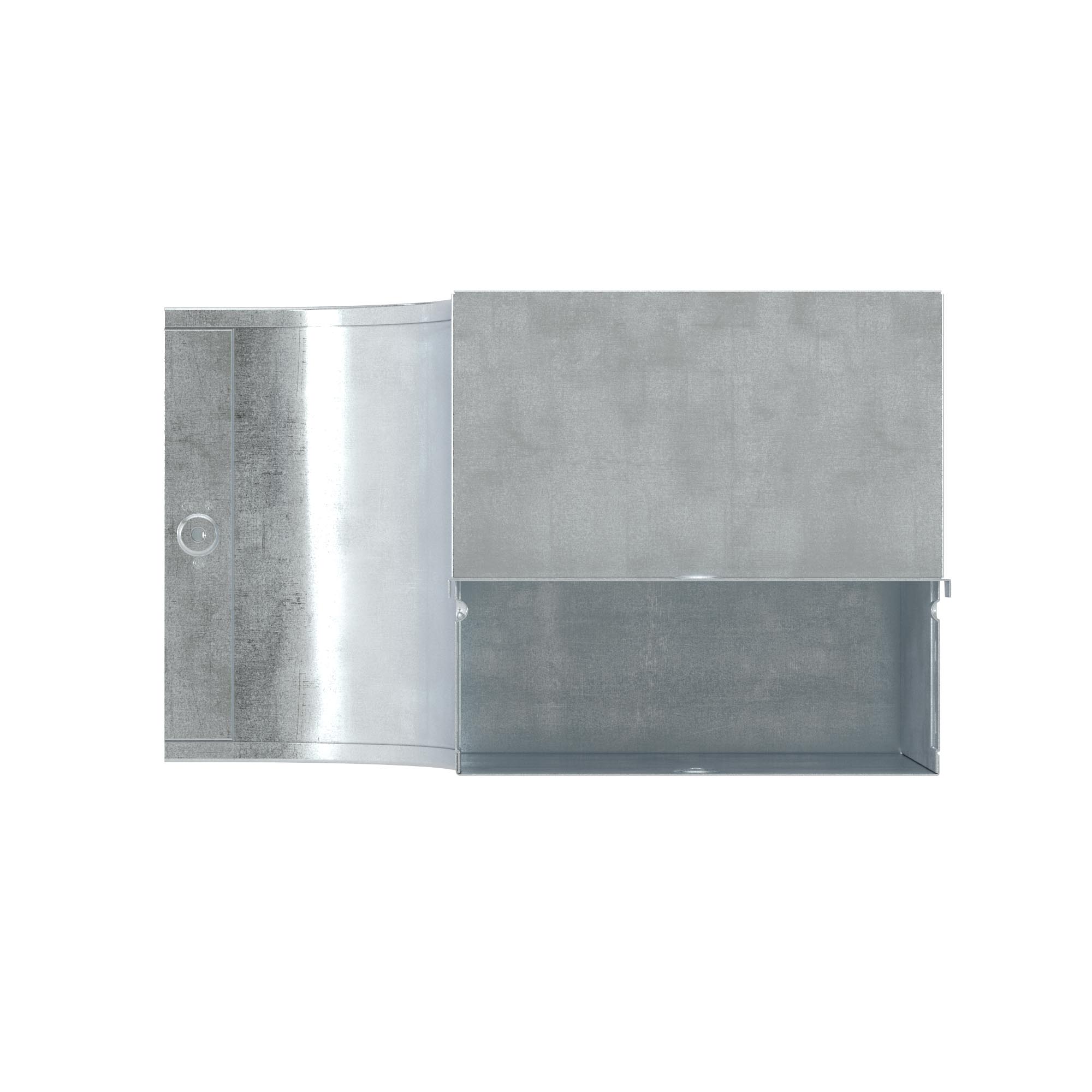

Internal verticl angle, CSSD 90 adapter 200x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37144KZL
Internal verticl angle, CSSD 90 adapter 200x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal verticl angle, CSSD 90 adapter 200x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37144KZL
Removed from the product range . Proposed replacement: 37144KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

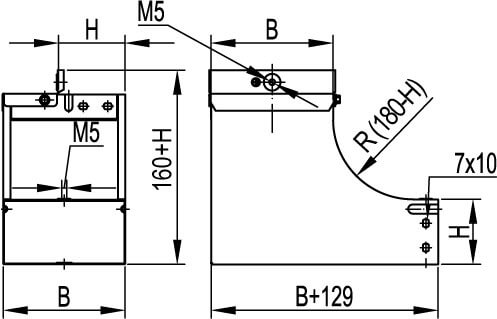

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 200
Cable tray height, mm 100
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Internal vertical angle, CSSD 90 adapter
Height 100 mm
Thickness 0.8 mm
Material Zinc-lamellated steel
Width 200 mm
