Internal vertical angle, CSSS 90 adapter 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37073KZL
Internal vertical angle, CSSS 90 adapter 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal vertical angle, CSSS 90 adapter 150x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37073KZL
Removed from the product range . Proposed replacement: 37073KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

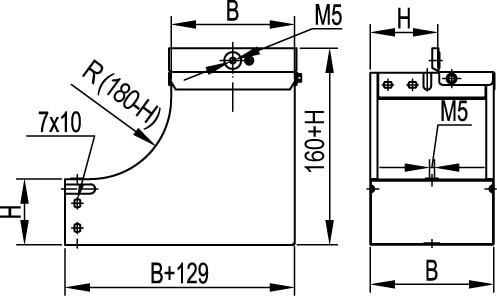

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 150
Cable tray height, mm 100
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Vertical inner angle, CSSD 90 adapter
Width 150 mm
Height 100 mm
Material Zinc-lamellated steel
