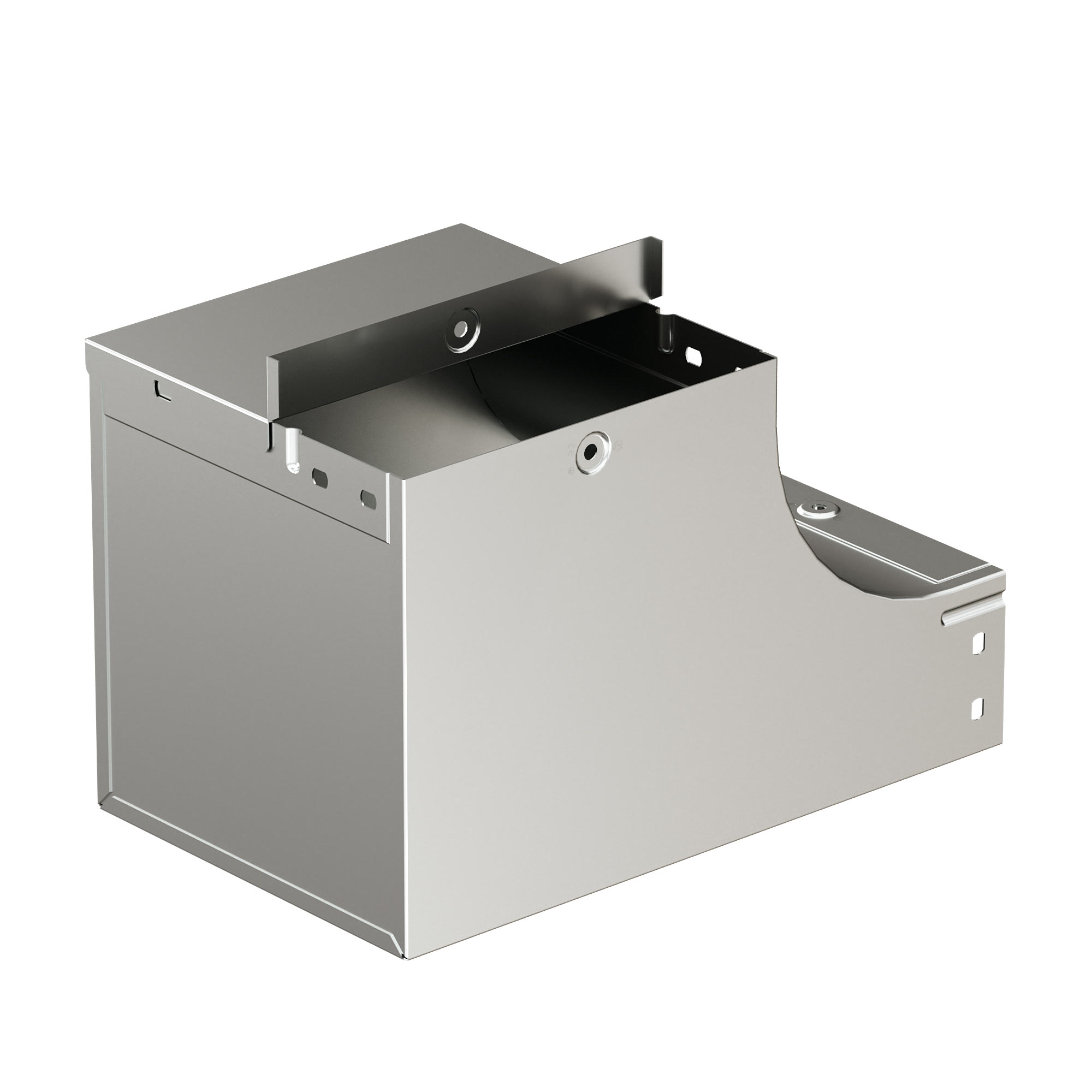

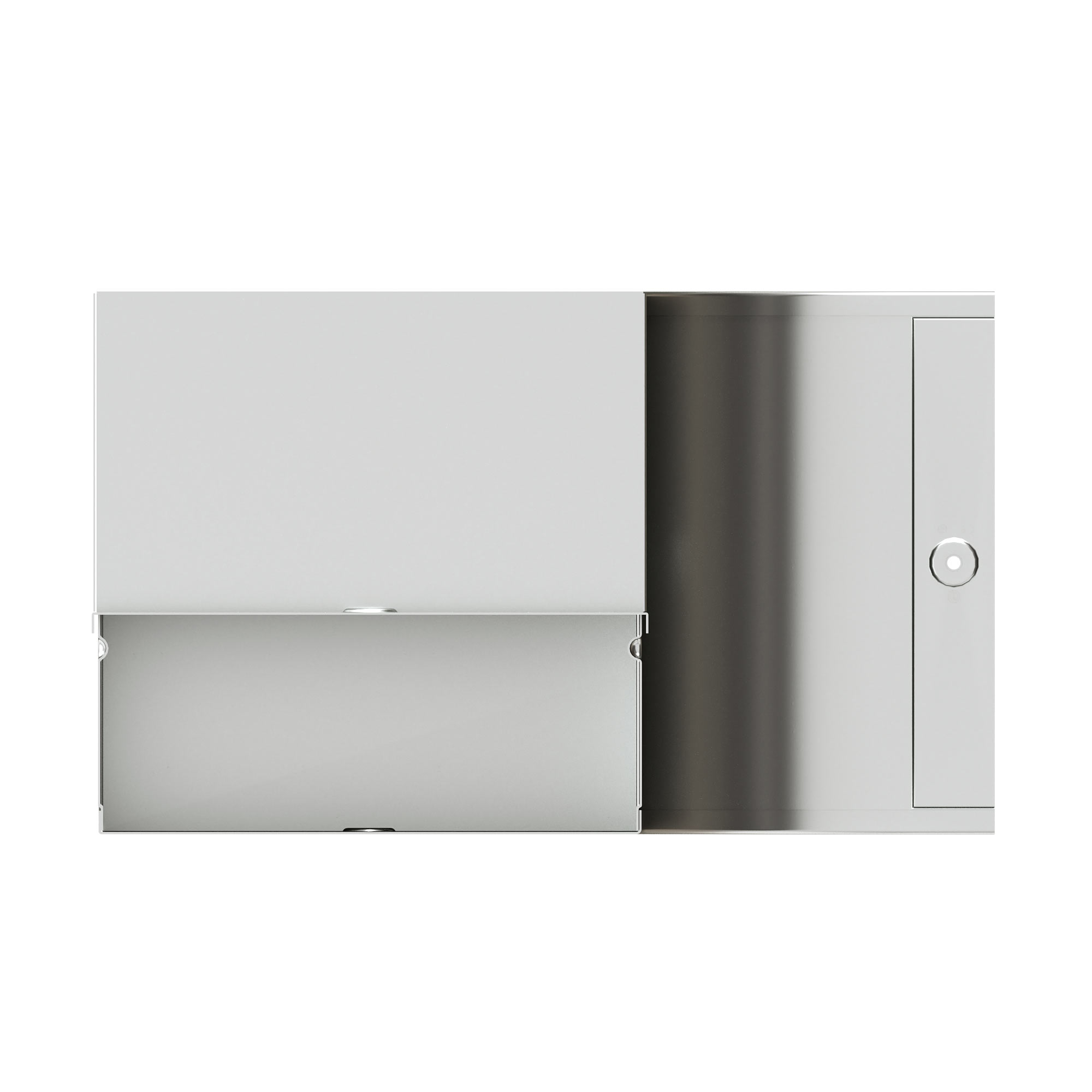

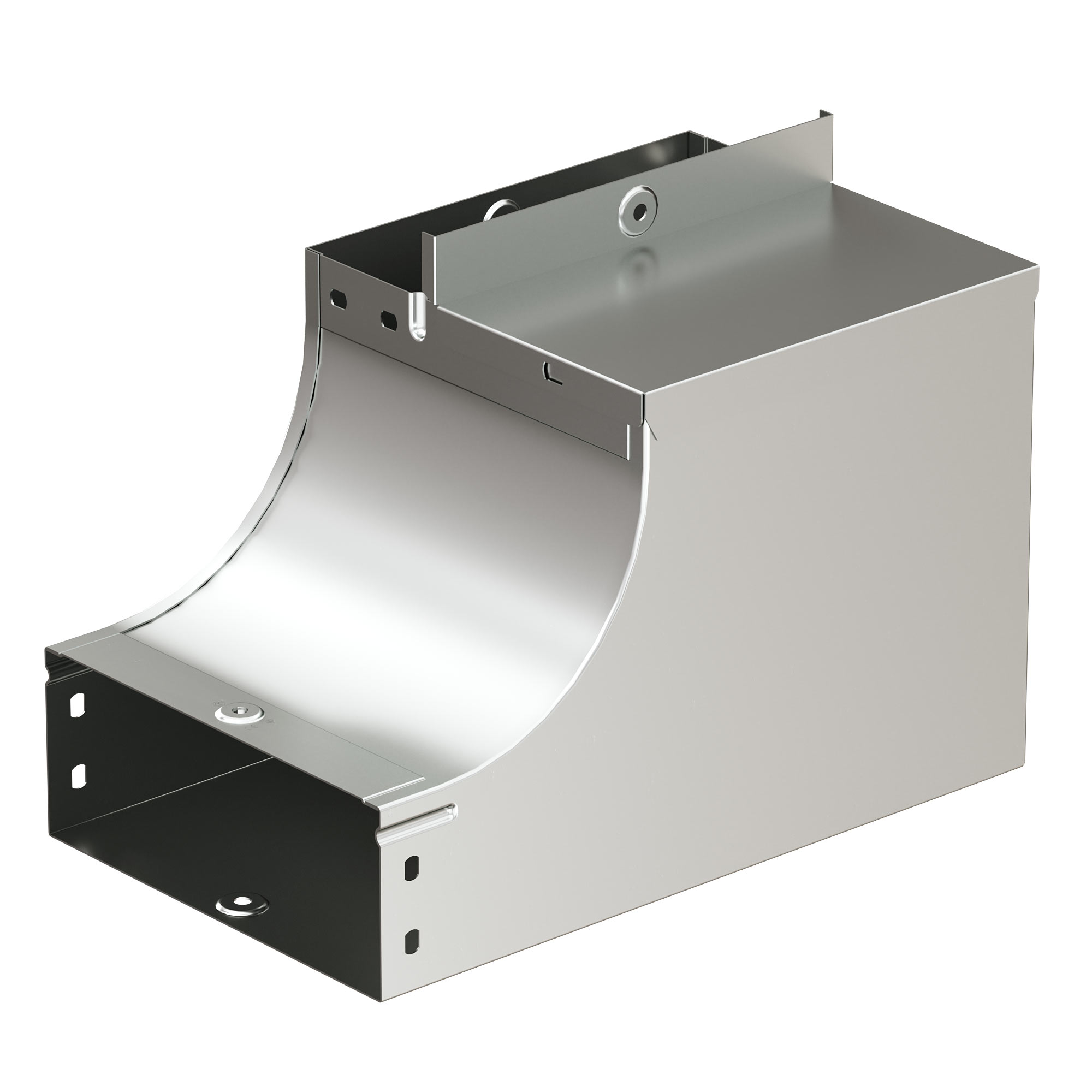

Internal vertical angle, CSSS 90 adapter 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37066KZL
Internal vertical angle, CSSS 90 adapter 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal vertical angle, CSSS 90 adapter 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37066KZL
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

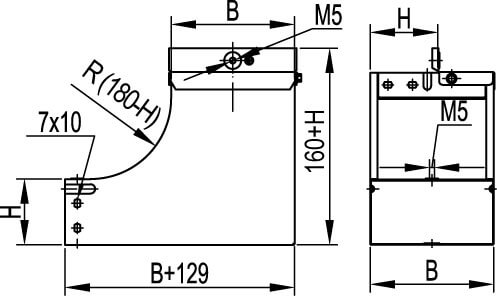

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 400
Cable tray height, mm 80
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Vertical inner angle, CSSD 90 adapter
Height 80 mm
Thickness 1.0 mm
Material Zinc-lamellated steel
Width 400 mm
