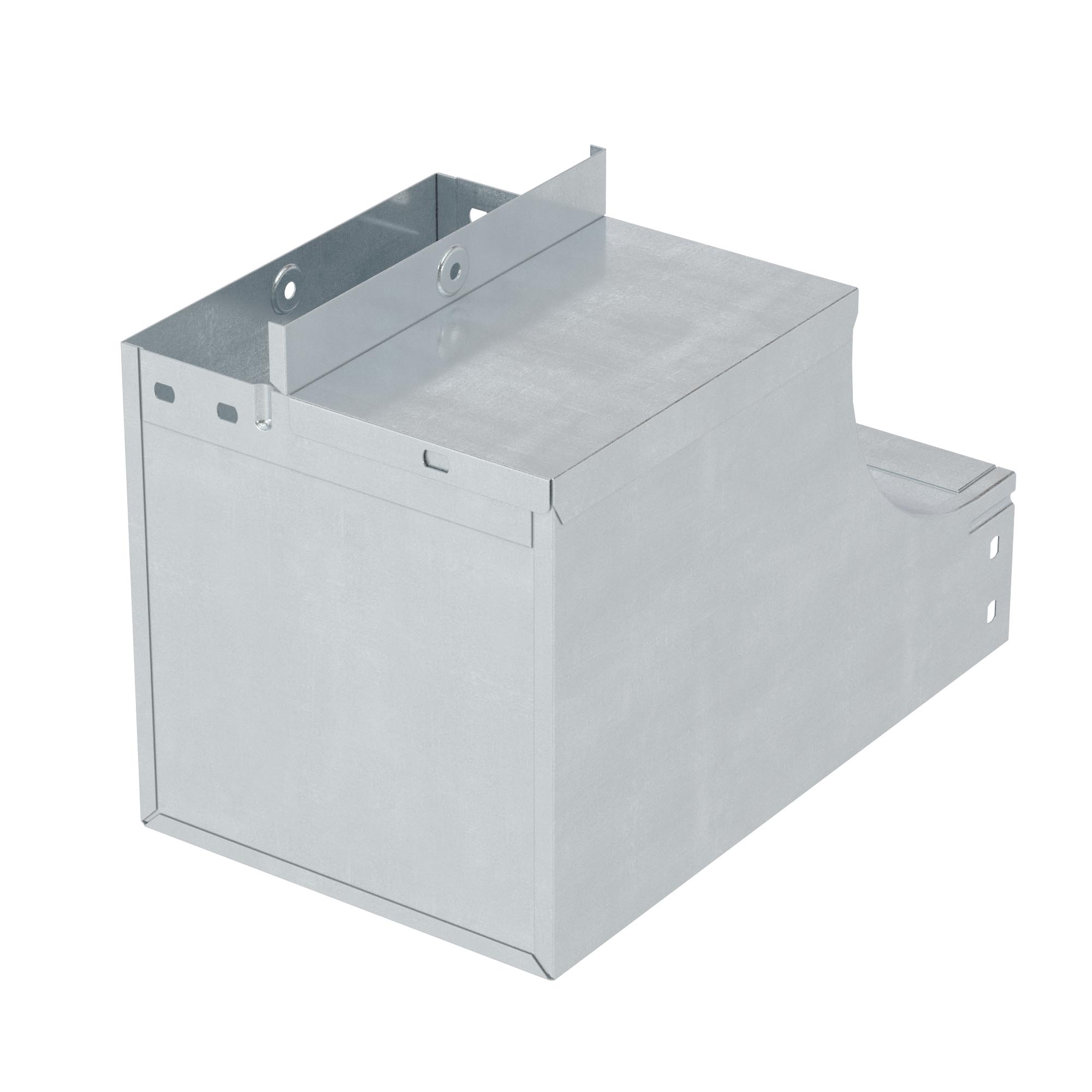

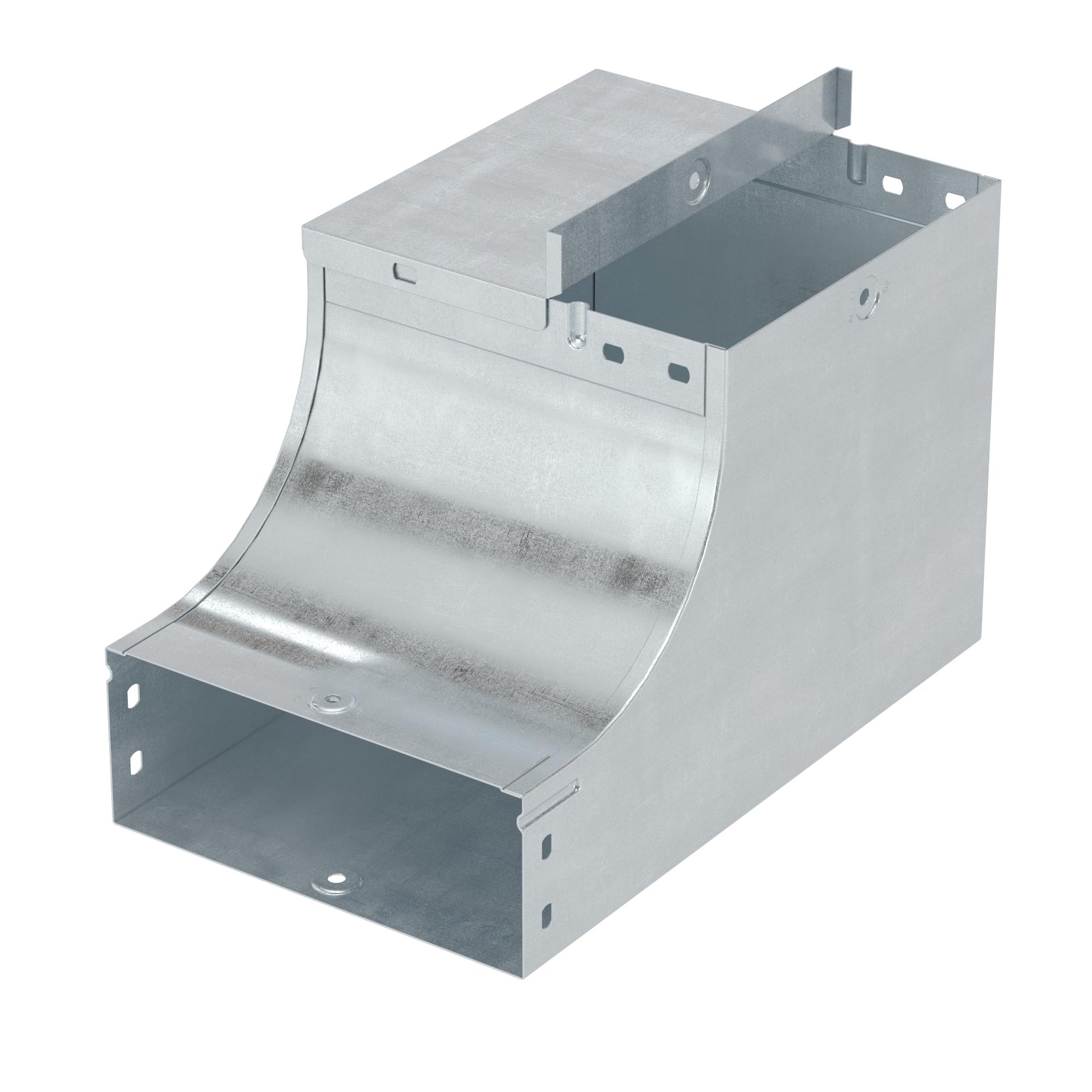

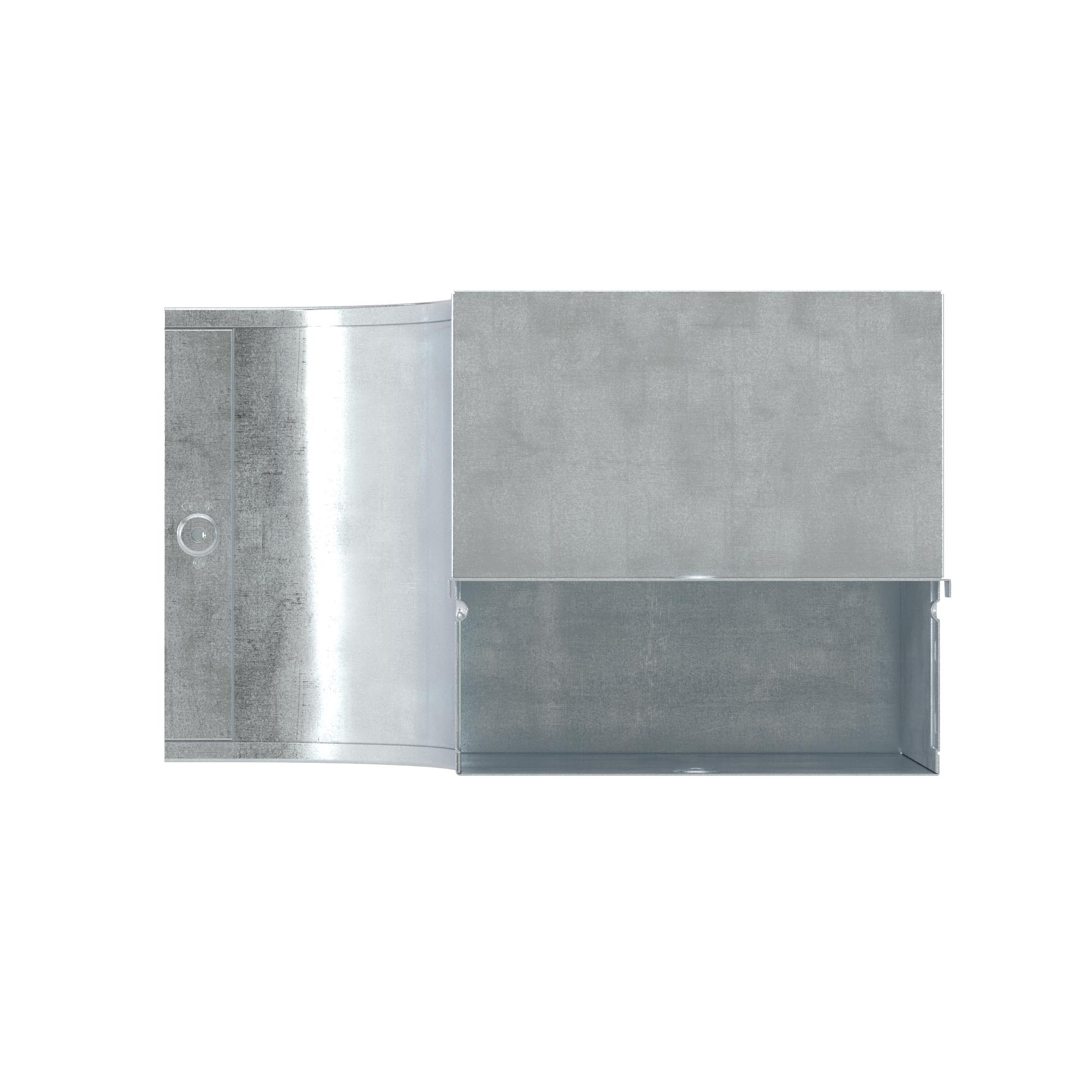

Internal vertical angle, CSSD 90 adapter 300x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37045KZL
Internal vertical angle, CSSD 90 adapter 300x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Internal vertical angle, CSSD 90 adapter 300x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37045KZL
Removed from the product range . Proposed replacement: 37045KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

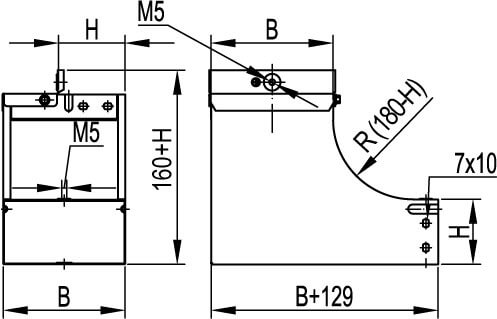

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 300
Cable tray height, mm 80
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories Internal vertical angle, CSSD 90 adapter
Width 300 mm
Height 80 mm
Material Zinc-lamellated steel
