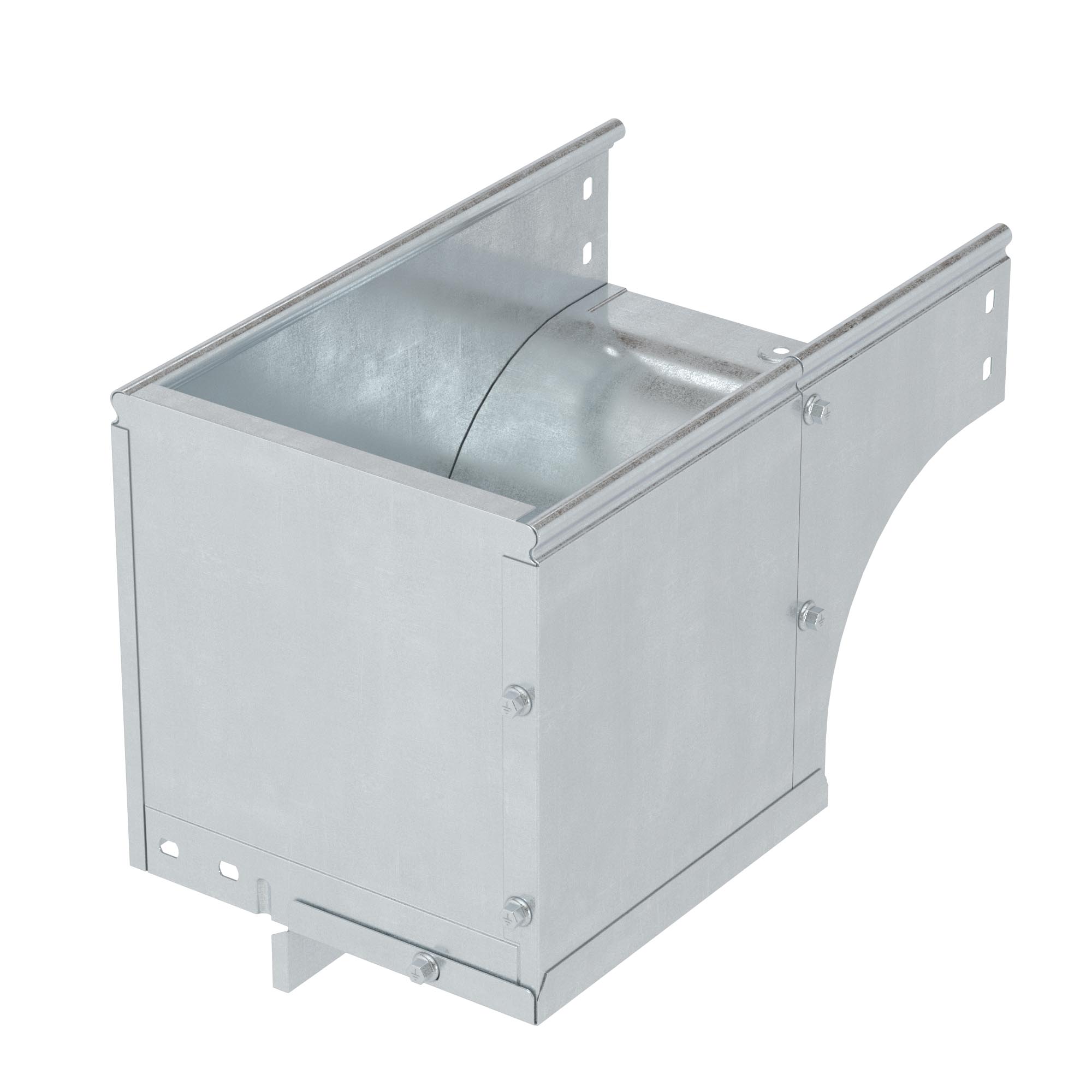

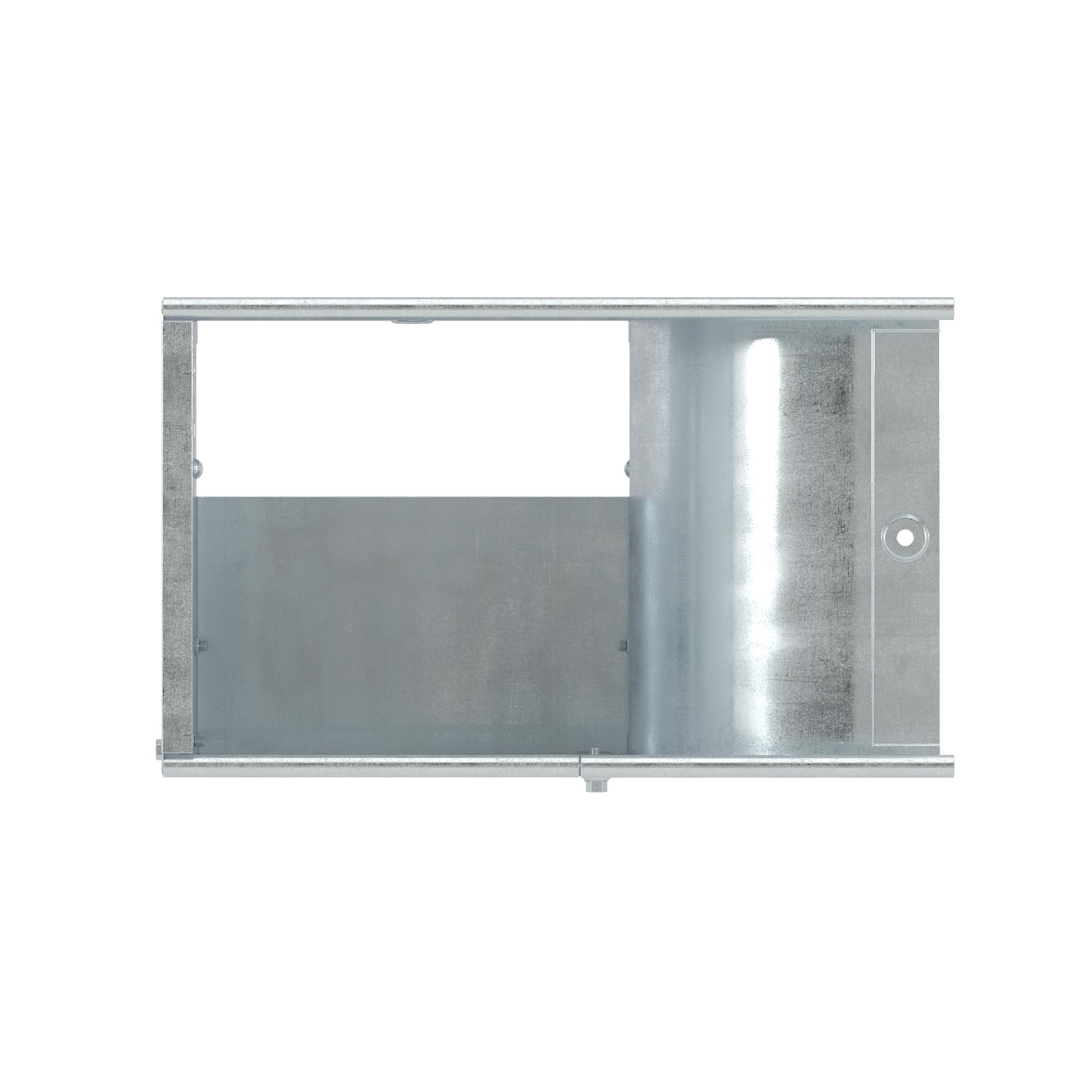

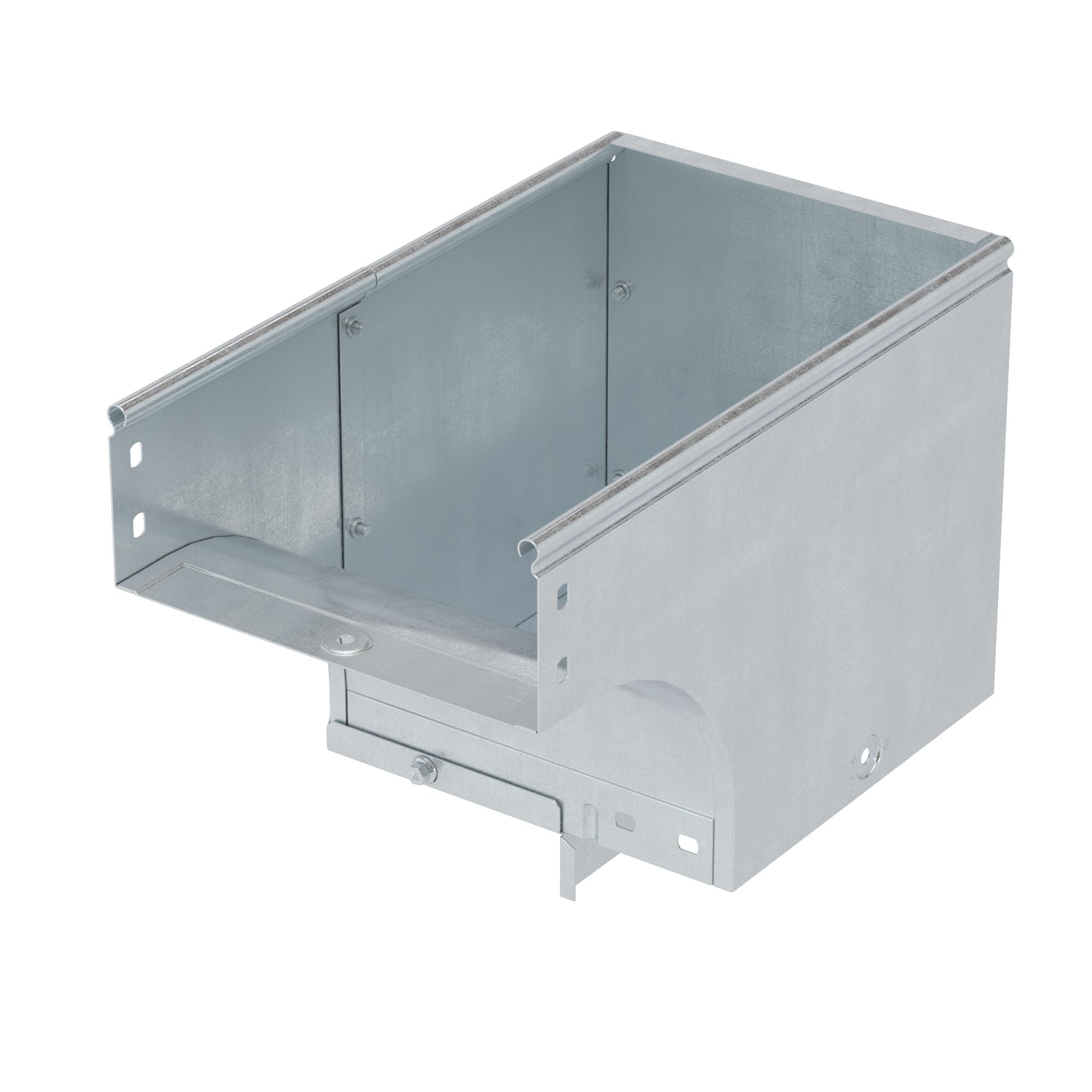

CDSD 90 external vertical angle 100x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37012KZL
CDSD 90 external vertical angle 100x100, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37012KZL
Removed from the product range
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Continuously galvanized zinc-aluminium |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 80 |
| Cable tray width, mm | 100 |
| Cable tray height, mm | 100 |
| Change of direction | Vertically descending |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | CDSD 90 external vertical angle |
| Width | 100 mm |
| Height | 100 mm |
| Material | Zinc-lamellated steel |
Kit accessory’s structure

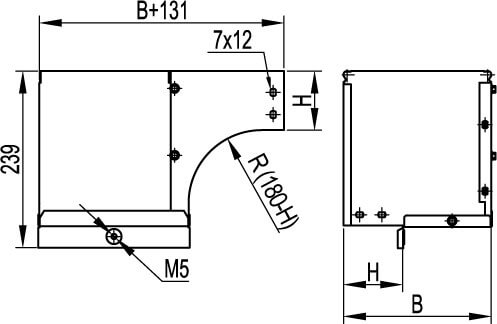

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
