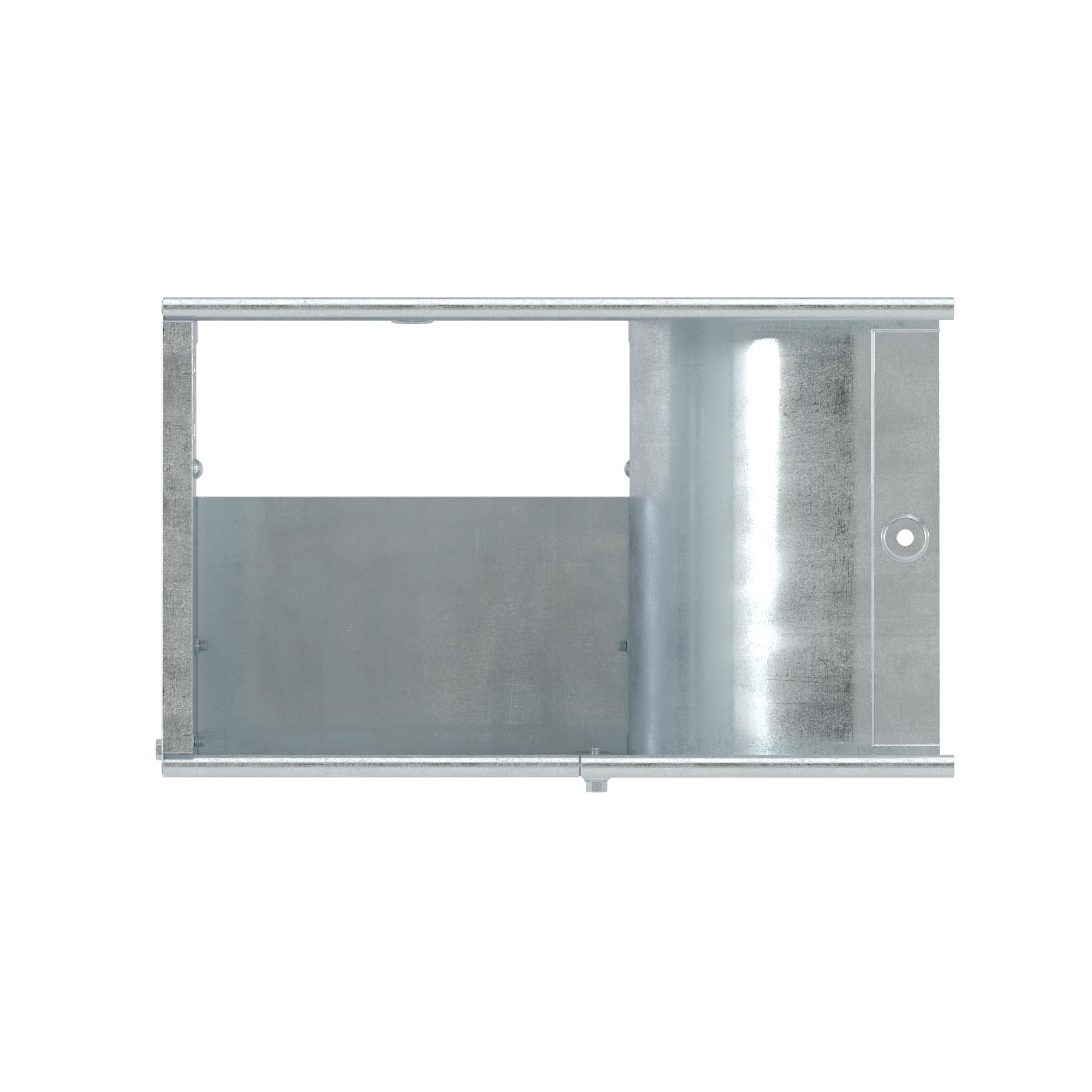

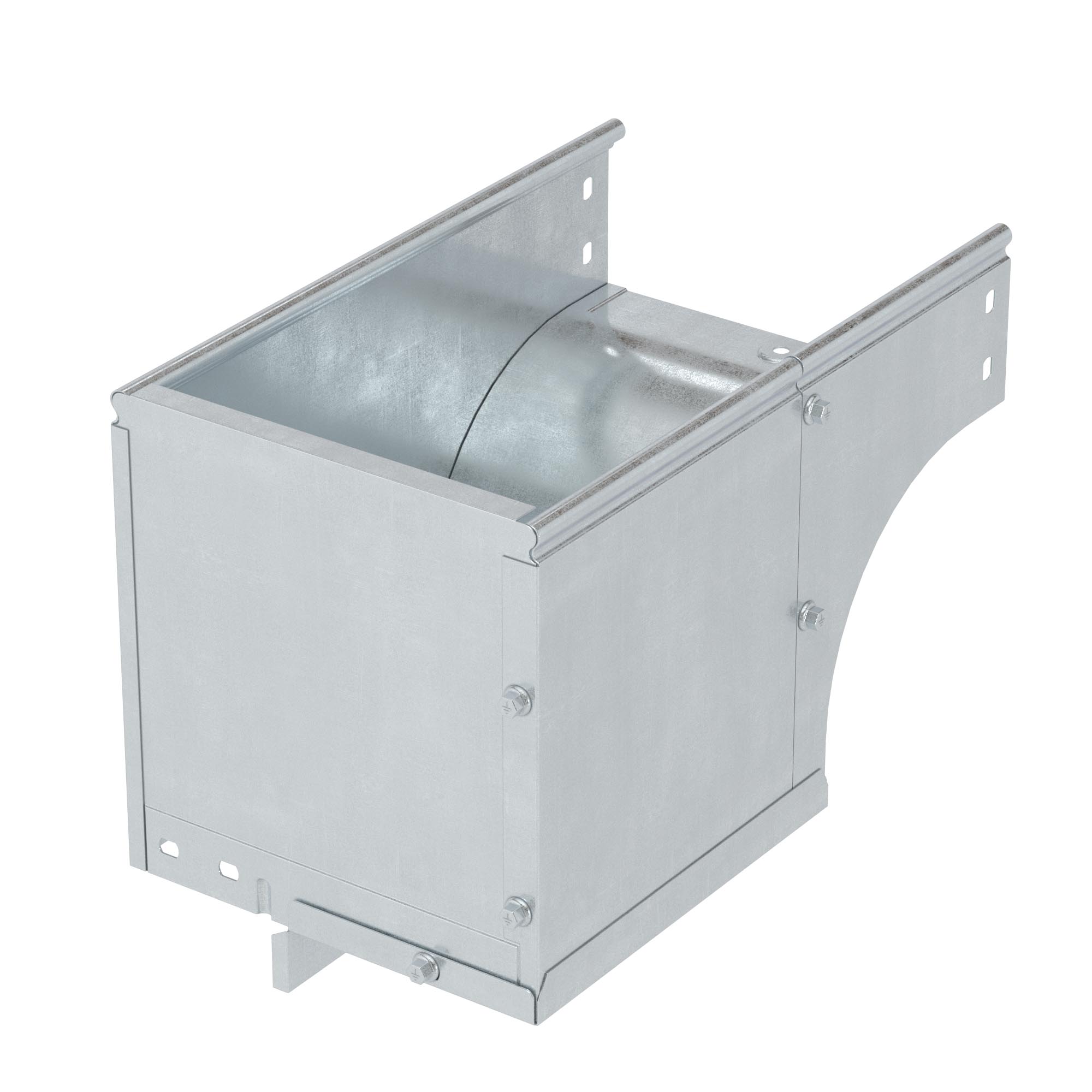

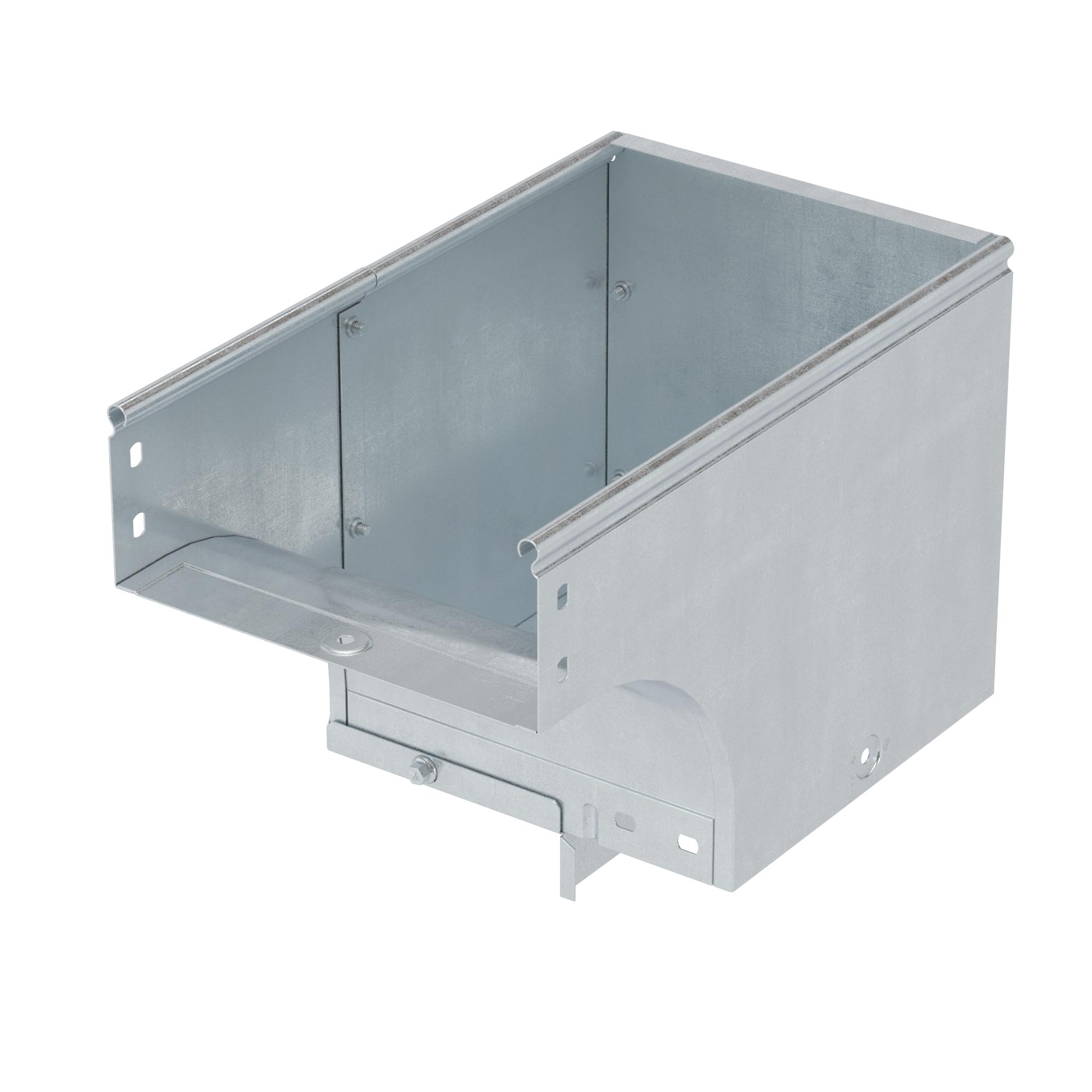

CDSD 90 external vertical angle 100x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37002KZL
CDSD 90 external vertical angle 100x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
CDSD 90 external vertical angle 100x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 37002KZL
Removed from the product range . Proposed replacement: 37002KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure

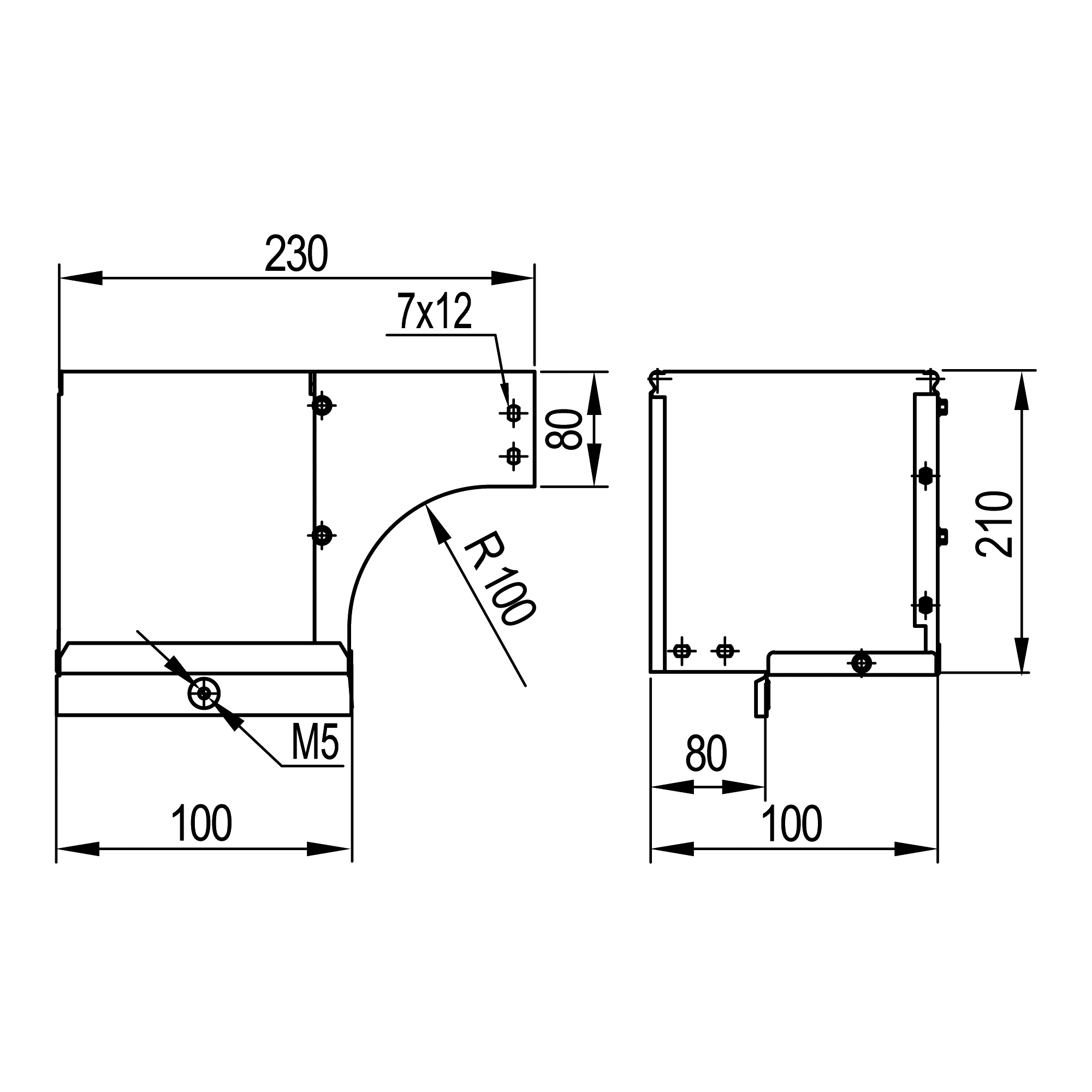

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 100
Cable tray height, mm 80
Change of direction Vertically declining
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories CDSD 90 external vertical angle
Width 100 mm
Height 80 mm
Material Zinc-lamellated steel
