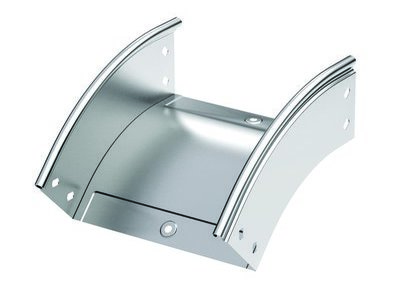

CD 45 external vertical angle 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36866KZL
CD 45 external vertical angle 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
CD 45 external vertical angle 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36866KZL
  • To ask a question
  • Characteristics
  • Kit accessory’s structure
  • Accessories
  • The accompanying goods

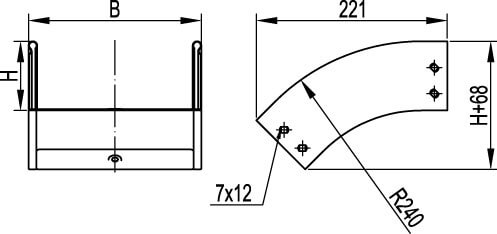

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 400
Cable tray height, mm 80
Change of direction Vertically declining
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 45º vertical external bend
Height 80 mm
Thickness 0.8 mm
Material Zinc-lamellated steel
Width 400 mm
