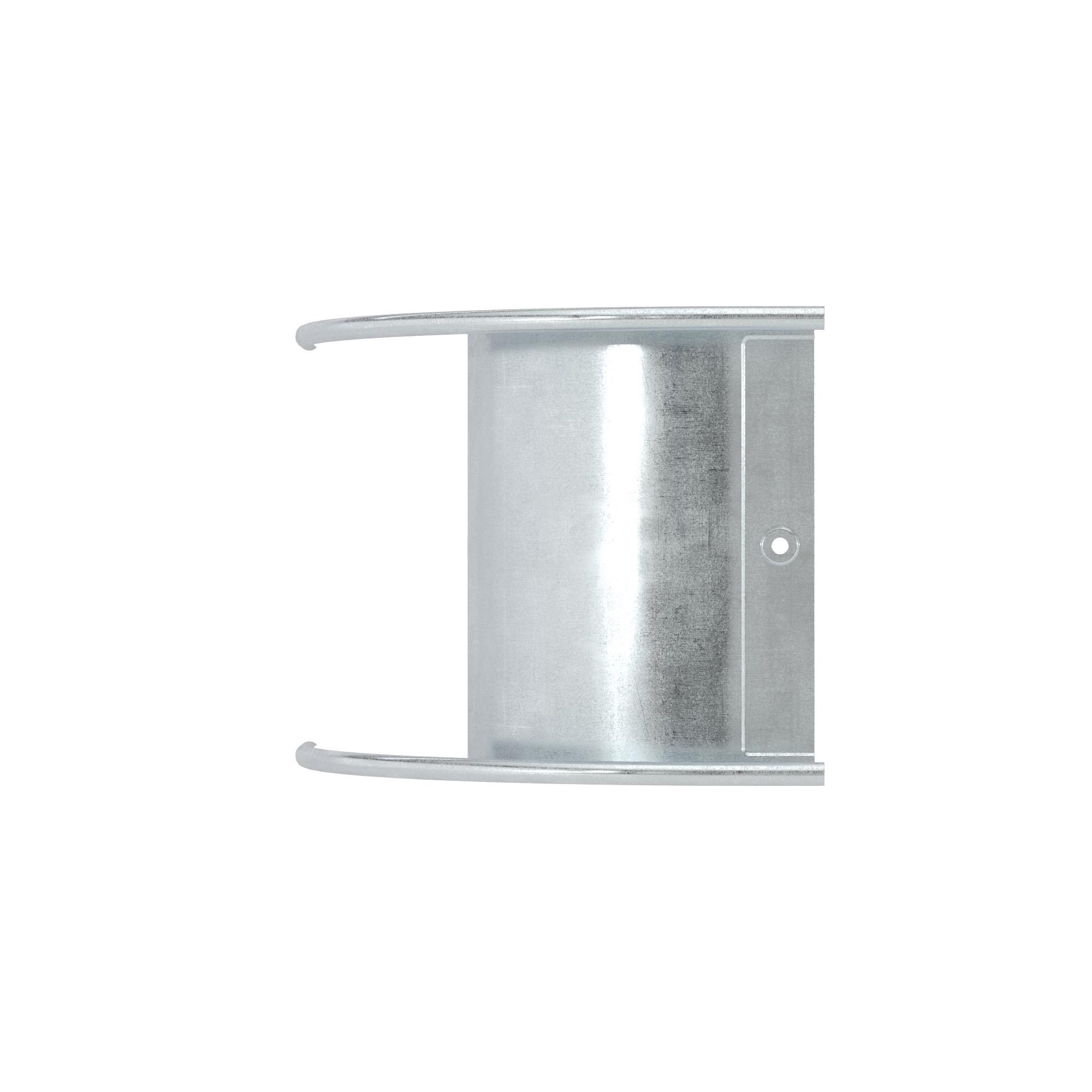

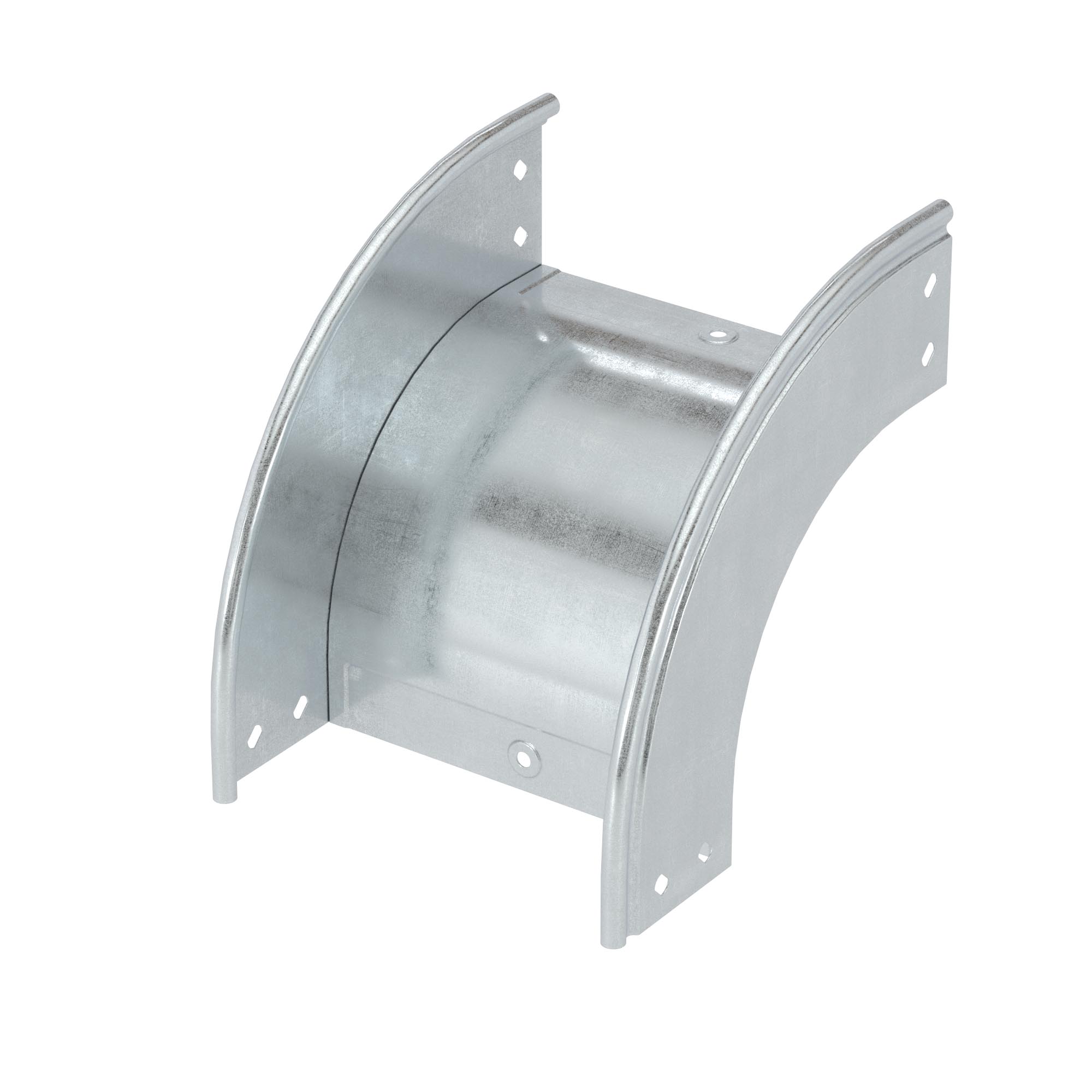

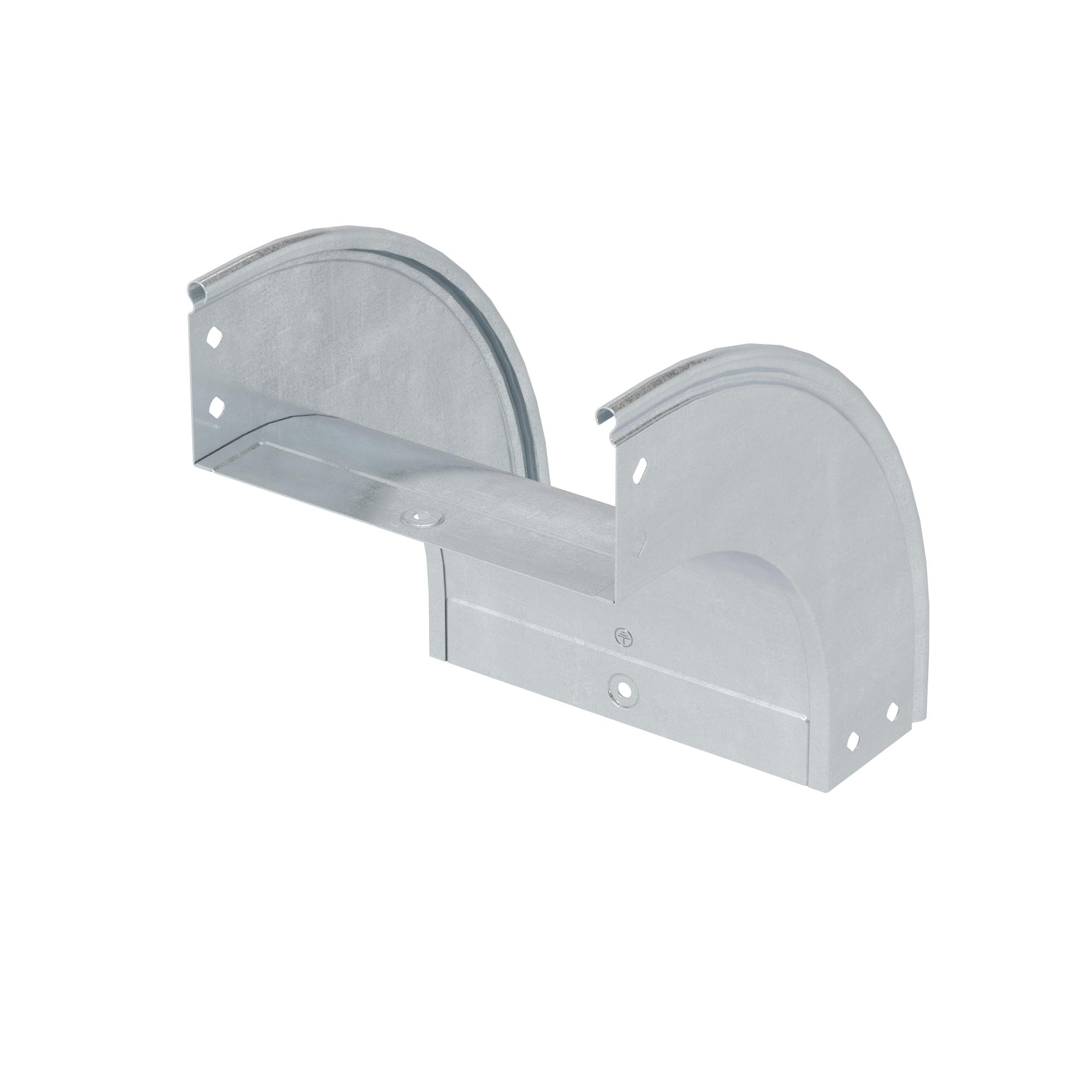

CD 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36786KZL

CD 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36786KZL
Removed from the product range
Colour Light grey
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 190
Cable tray width, mm 400
Cable tray height, mm 50
Change of direction Vertically descending
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories 90º vertical external bend
Width 400 mm
Height 50 mm
Material Zinc lamellar coating
The accompanying goods

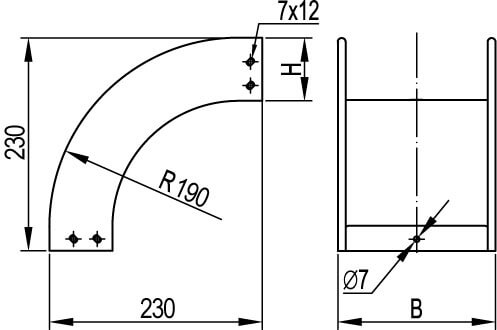

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
