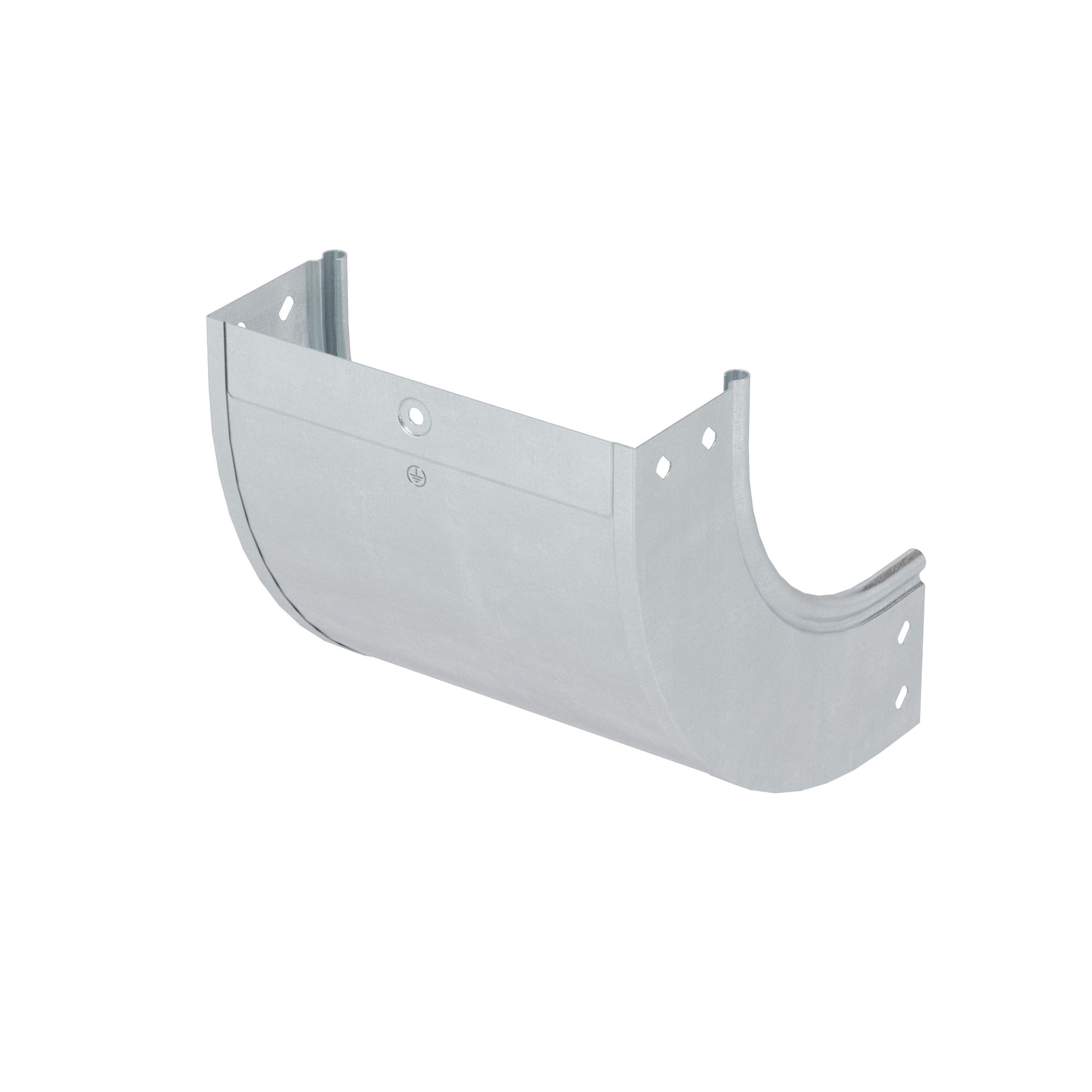

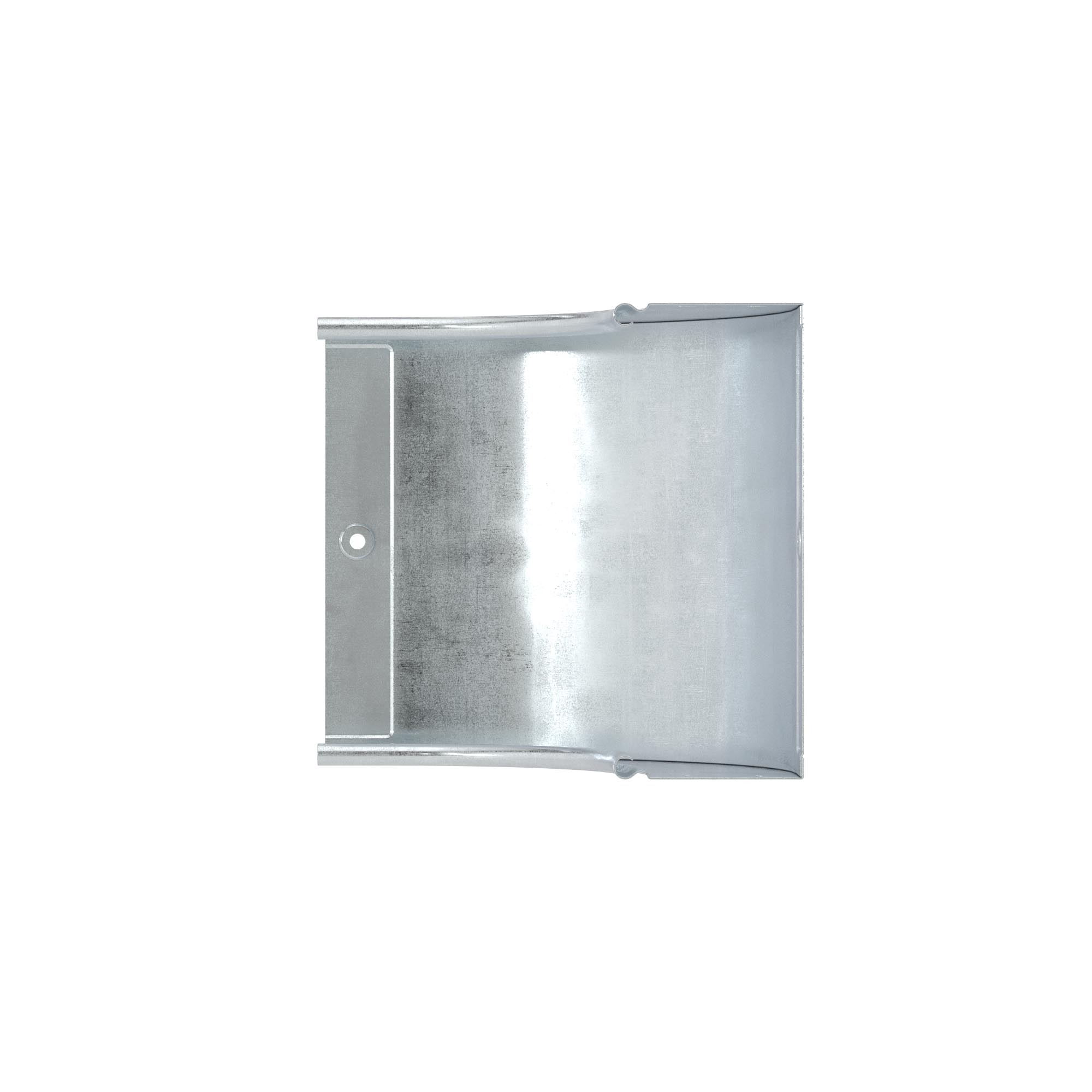

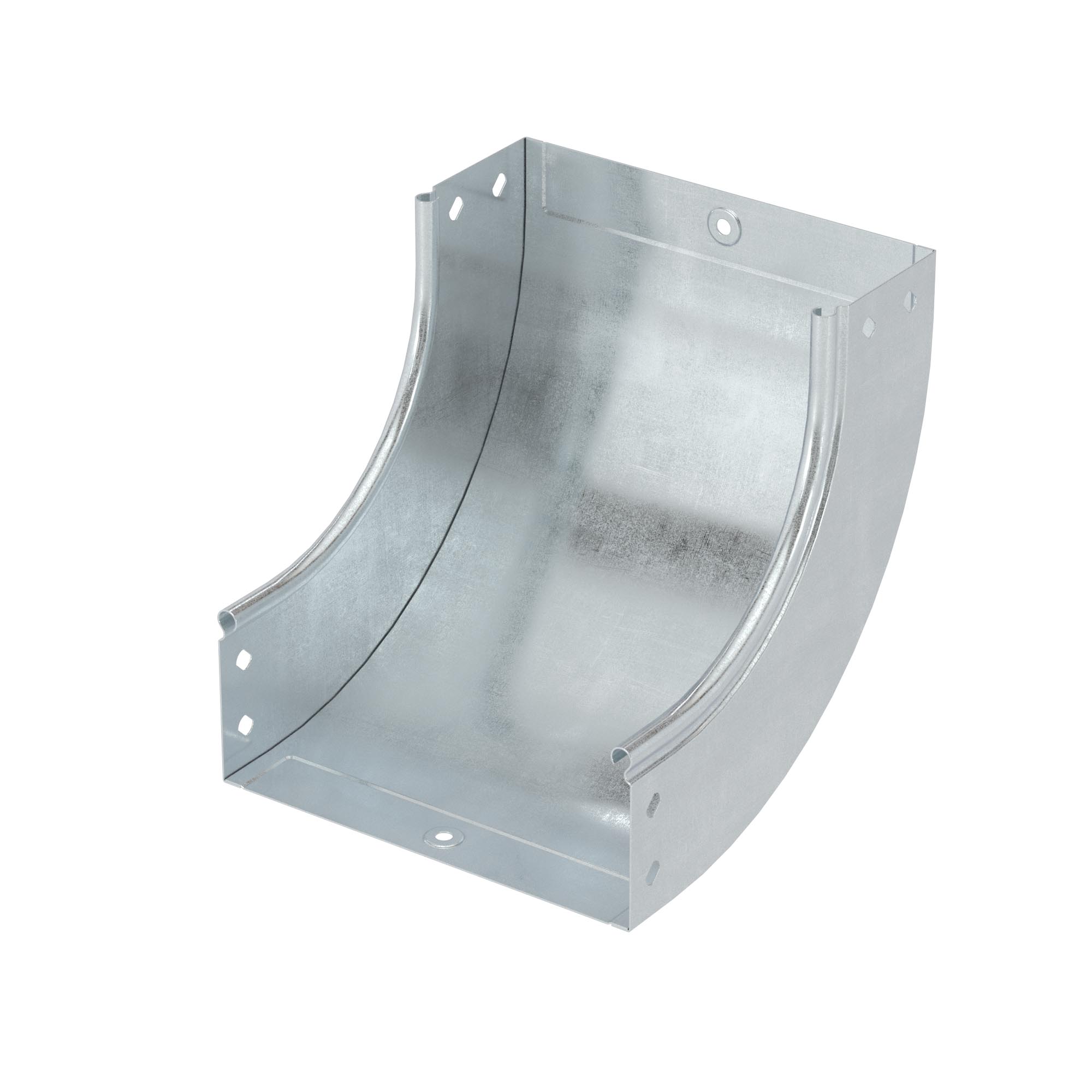

CS 90 internal vertical angle 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36686KZL
CS 90 internal vertical angle 400x80, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36686KZL
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Zinc lamellar coating |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 115 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 80 |
| Change of direction | Vertically rising |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | 90º vertical inner bend |
| Height | 80 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 400 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37303HDZL | Joint Plate h. 80 HDZL | 4 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
| CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 20 pcs |
| CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 20 pcs |
The accompanying goods

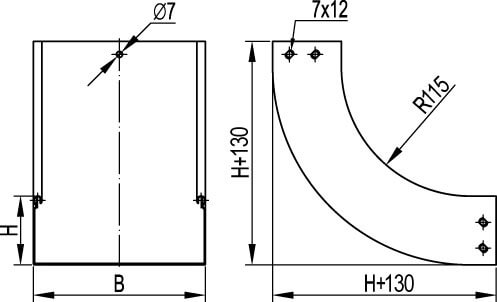

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
