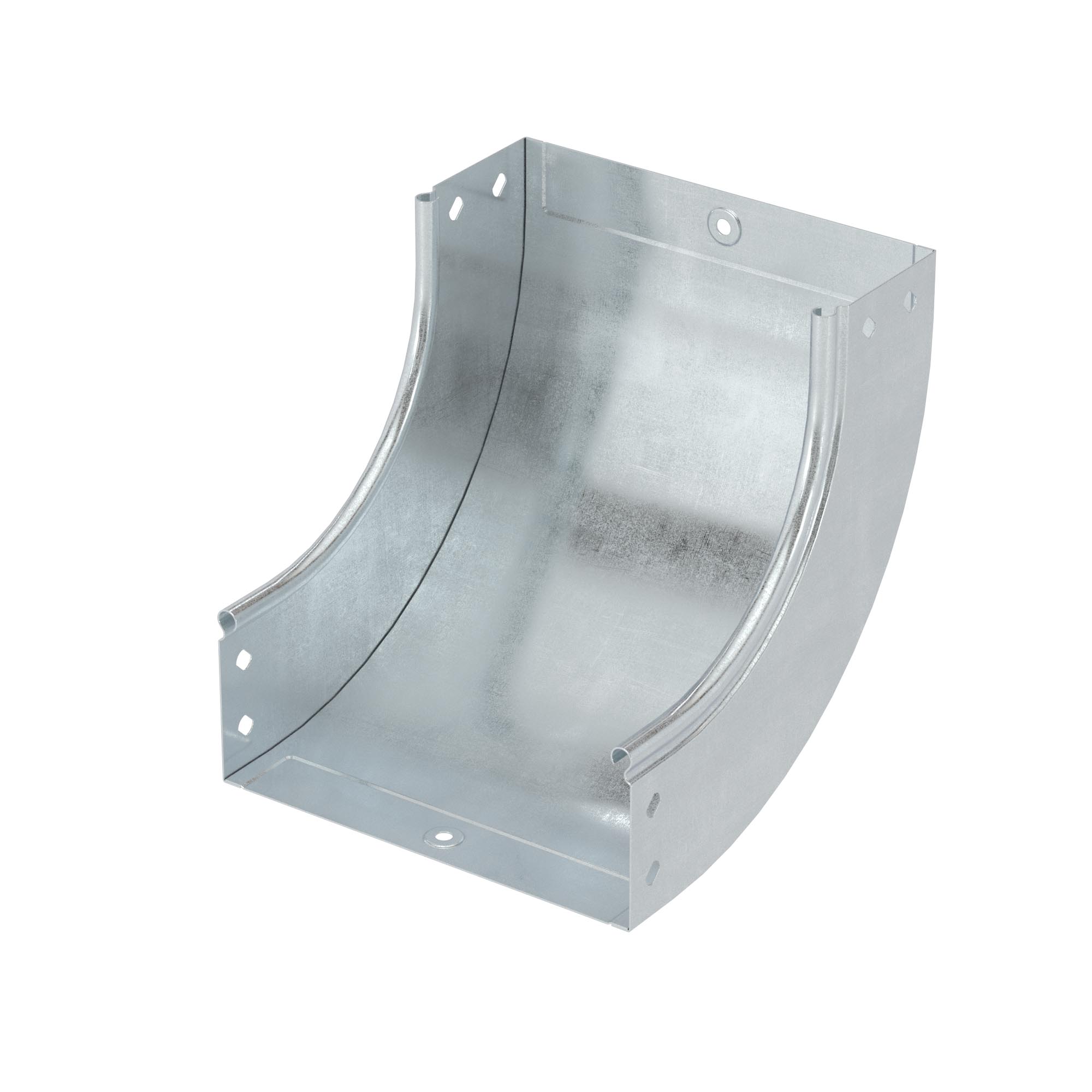

CS 90 internal vertical angle 600x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36668KZL
CS 90 internal vertical angle 600x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
CS 90 internal vertical angle 600x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36668KZL
  • To ask a question
  • Characteristics
  • Kit accessory’s structure
  • Accessories
  • The accompanying goods

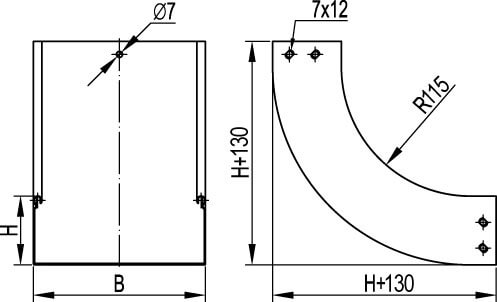

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 115
Cable tray width, mm 600
Cable tray height, mm 50
Change of direction Vertically rising
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories 90º vertical inner bend
Width 600 mm
Height 50 mm
Material Zinc-lamellated steel
