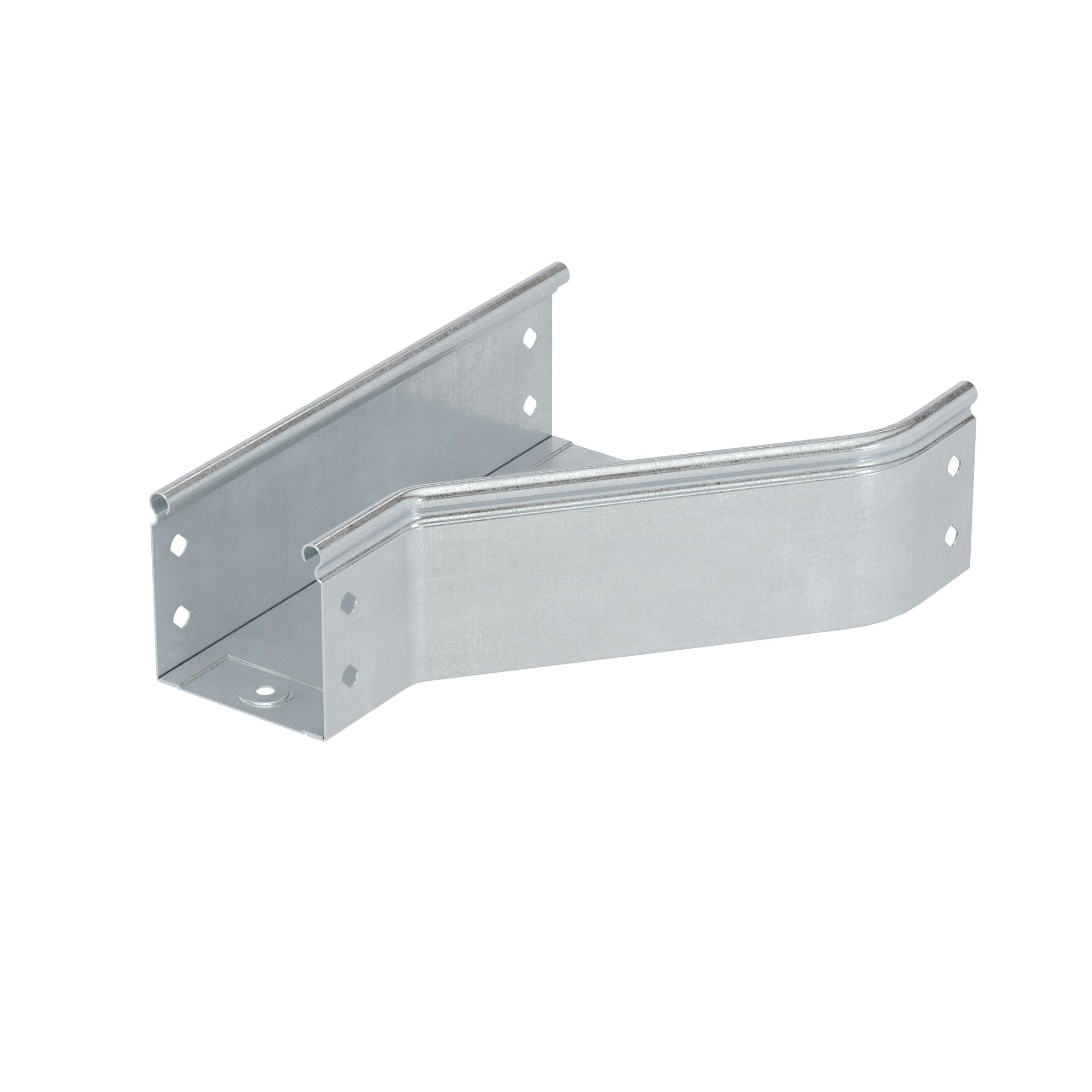

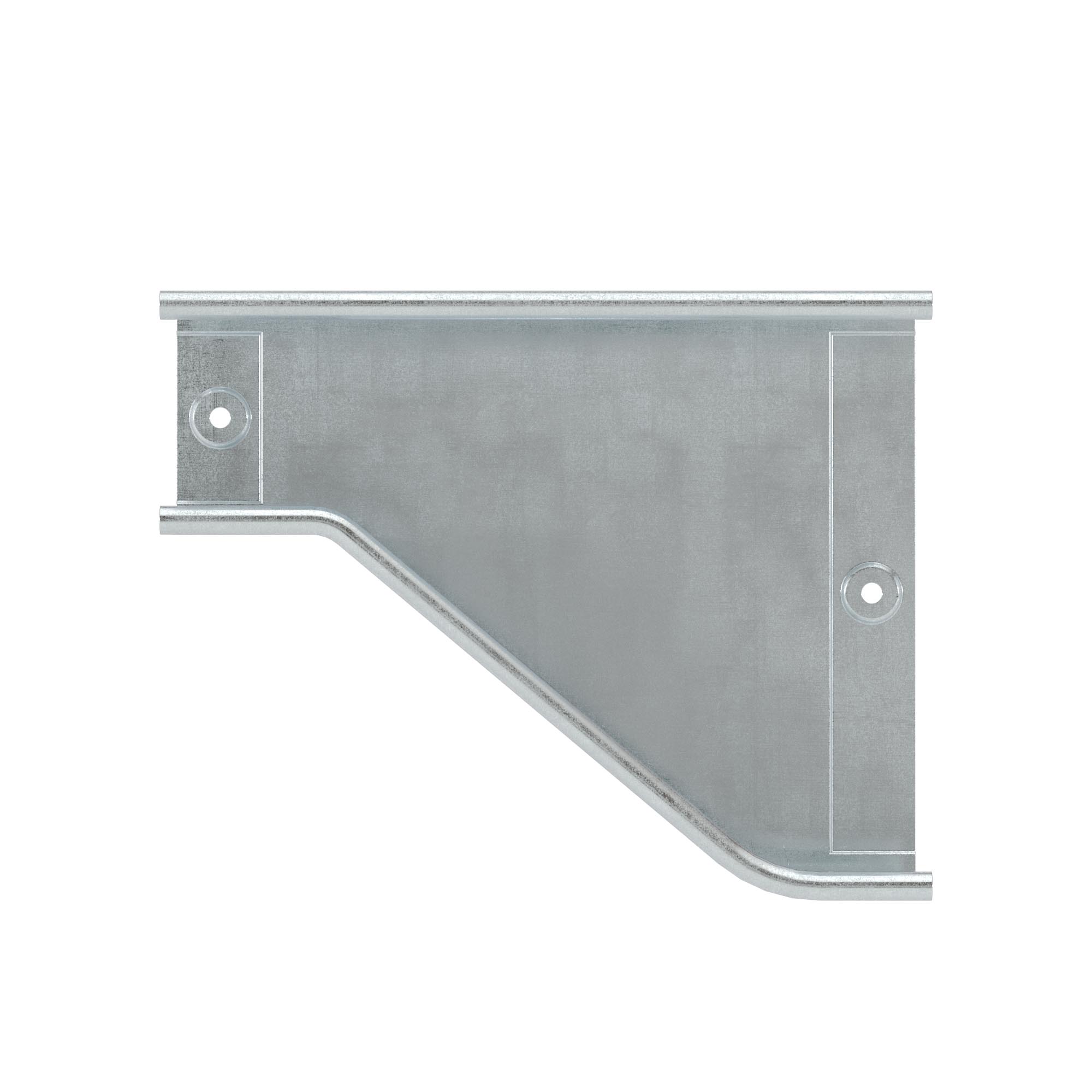

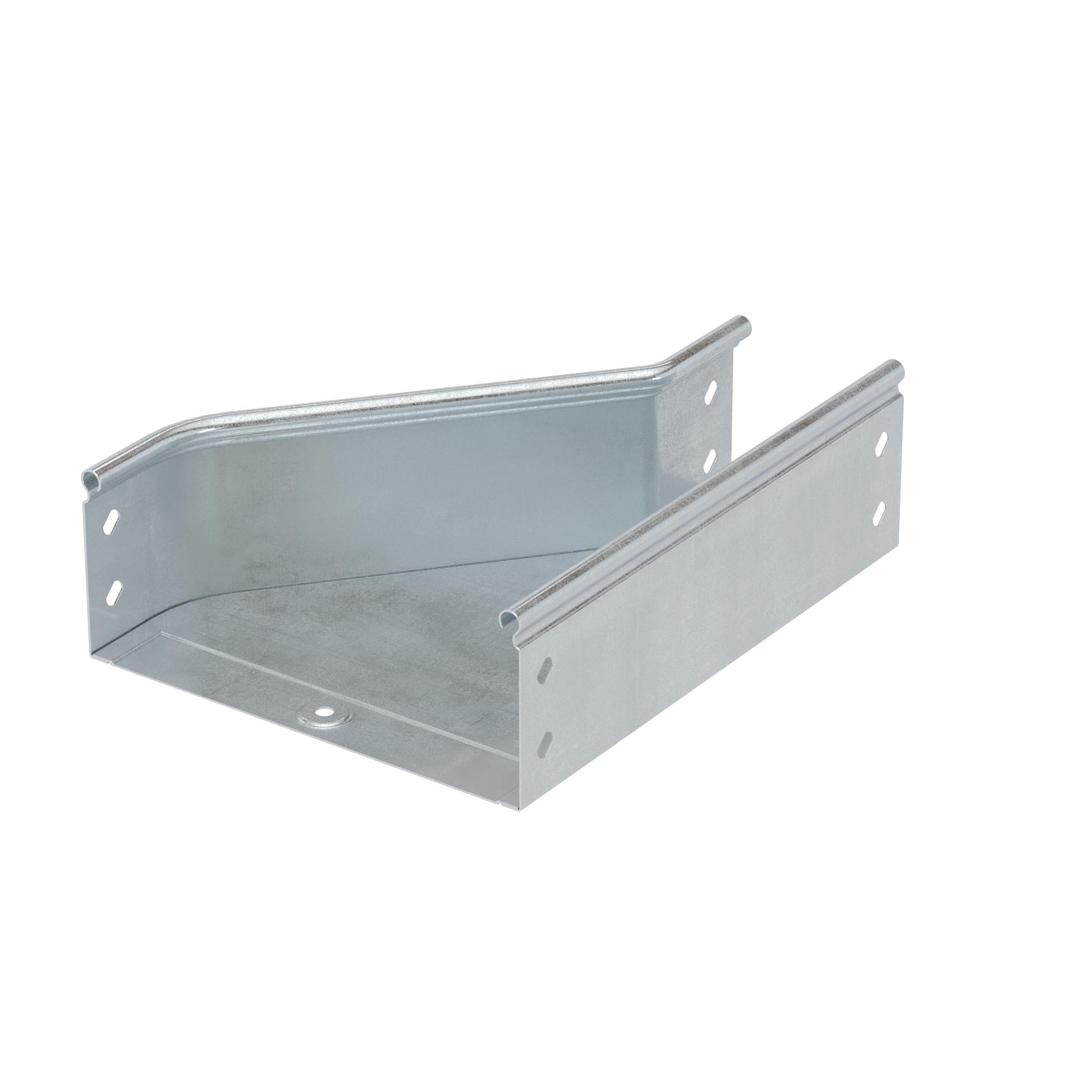

Right-side RRD adapter 500-300 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36341KZL
Right-side RRD adapter 500-300 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36341KZL
Removed from the product range
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Galvanic/electrolytic zinc plated zinc-nickel |
| Construction type | Reducing to the right |
| Width (big), mm | 500 |
| Width (small), mm | 300 |
| Material | Steel |
| Cable tray height, mm | 50 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Mounting accessories |
| Type of accessories | Right-side adapte |
| Width | 300 mm |
| Height | 50 mm |
| Material | Zinc-lamellated steel |
Kit accessory’s structure
| Code | Name | Quantity |
| 37301HDZL | Joint Plate h. 50 HDZL | 4 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
| CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 12 pcs |
| CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 12 pcs |
Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
