RRC adapter 200-150 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
36311KZL
RRC adapter 200-150 h 50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
36311KZL
Colour | Light grey |
Model | Included connector |
Surface protection | Galvanic/electrolytic zinc plated zinc-nickel |
Construction type | Reducing symmetrical |
Width (big), mm | 200 |
Width (small), mm | 150 |
Material | Steel |
Cable tray height, mm | 50 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Mounting accessories |
Type of accessories | Central reducer |
Height | 50 mm |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 150 mm |
Kit accessory’s structure
Code | Name | Quantity |
37301HDZL | Joint Plate h. 50 HDZL | 4 pcs |
37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 12 pcs |
CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 12 pcs |

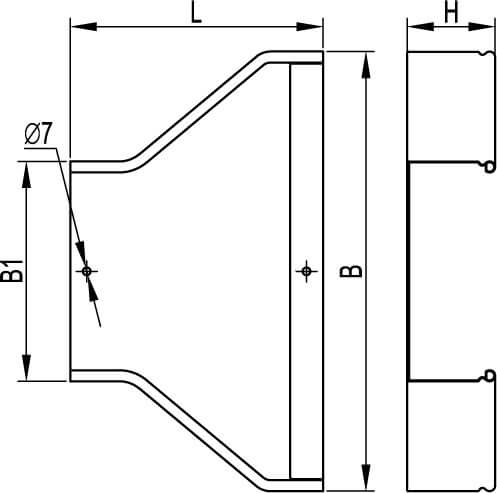

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
