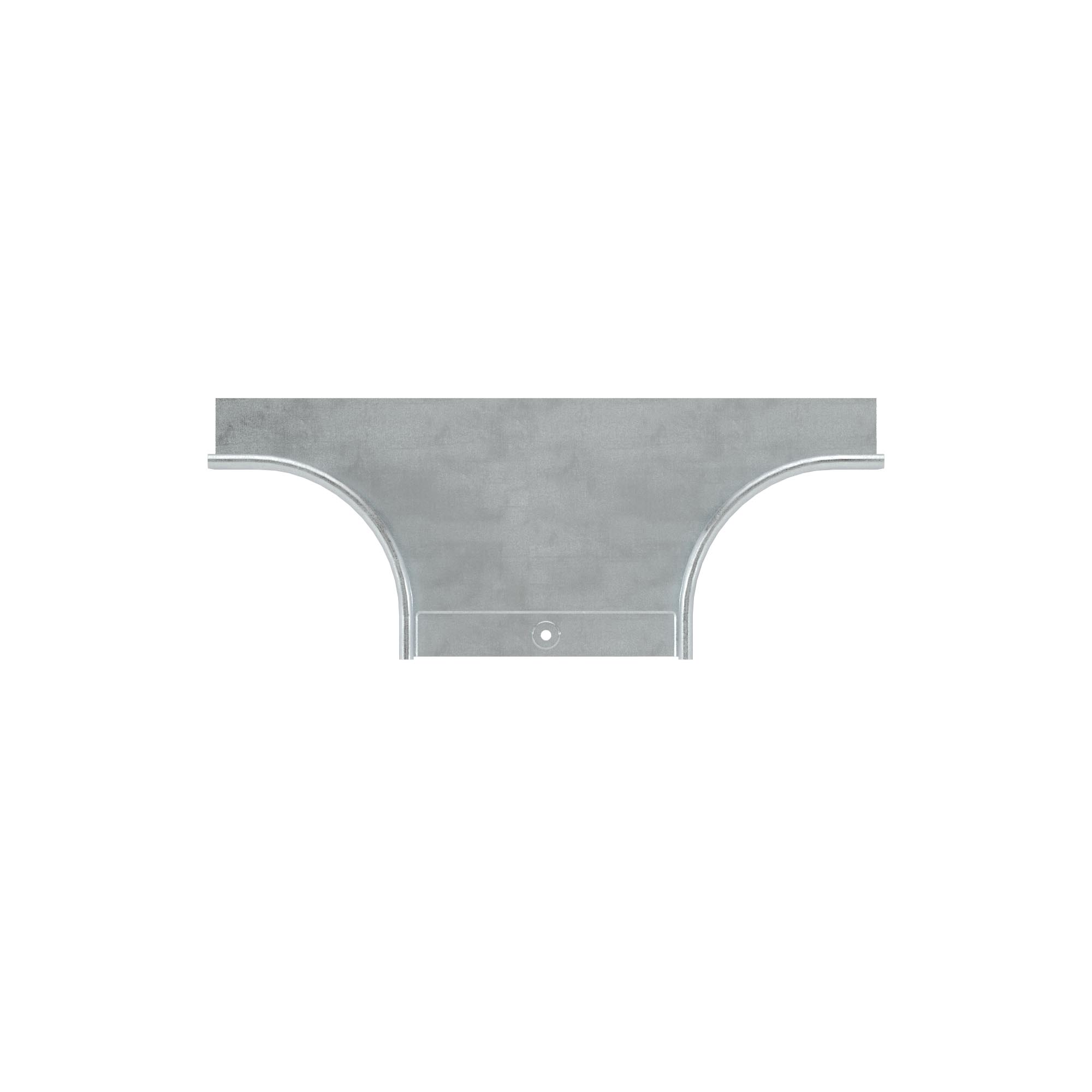

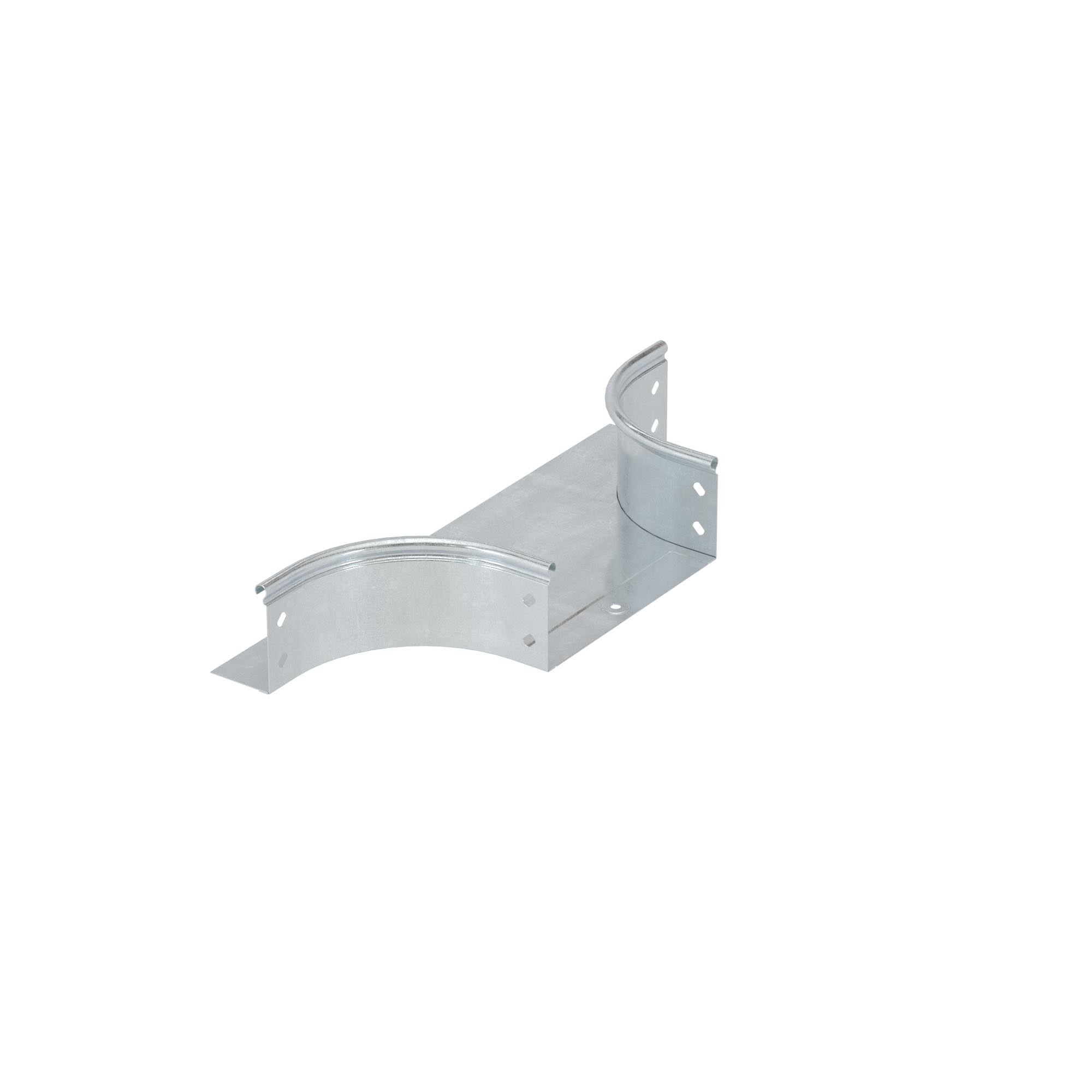

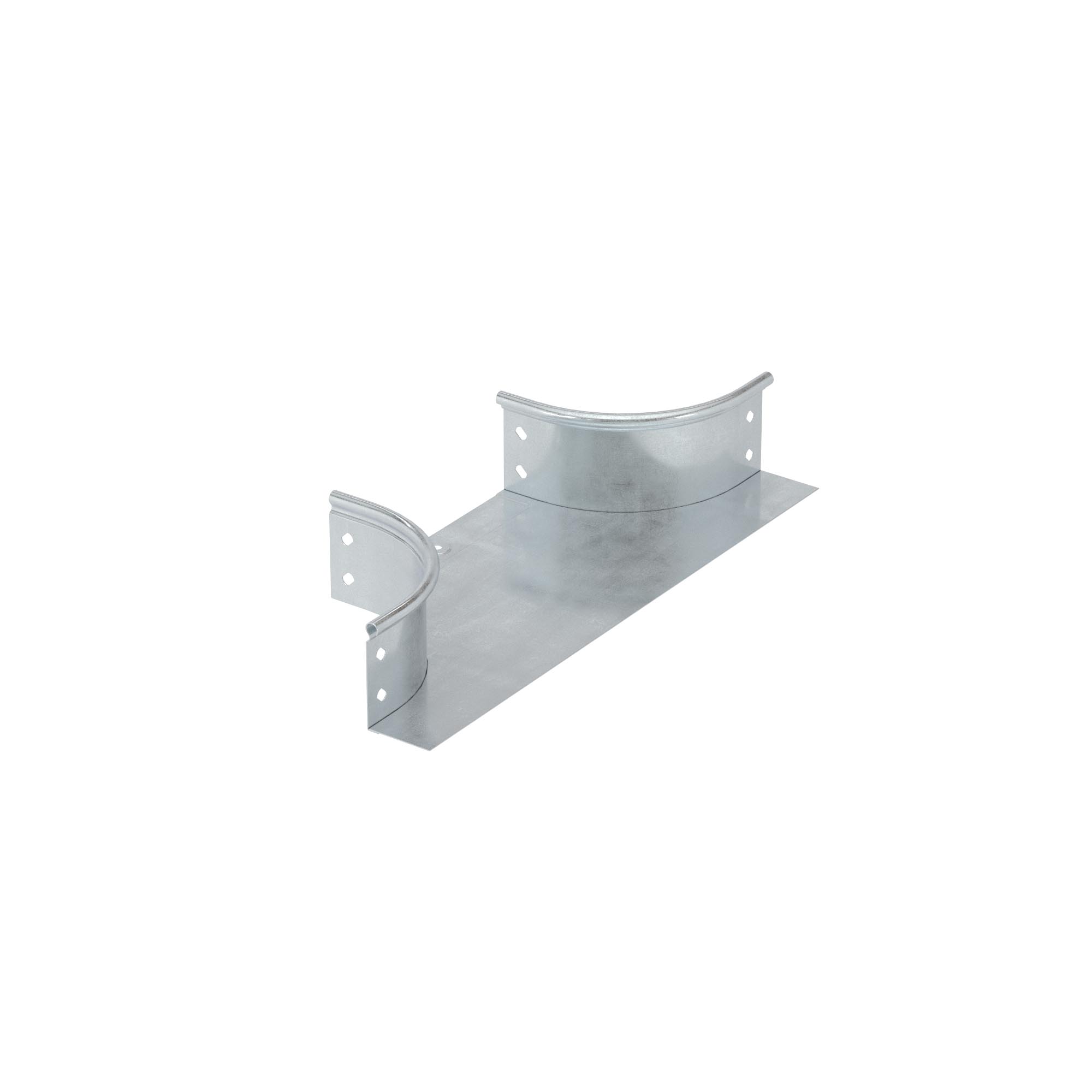

DL T-tapper 200x100 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36265KZL
DL T-tapper 200x100 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36265KZL
Colour | Light grey |
Model | Included connector |
Surface protection | Continuously galvanized zinc-aluminium |
Material quality | Steel |
Material | Steel |
Inner radius, mm | 100 |
Cable tray branch width, mm | 200 |
Cable tray height, mm | 100 |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | System accessories |
Type of accessories | Universal branch |
Height | 100 mm |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 200 mm |
Kit accessory’s structure
The accompanying goods

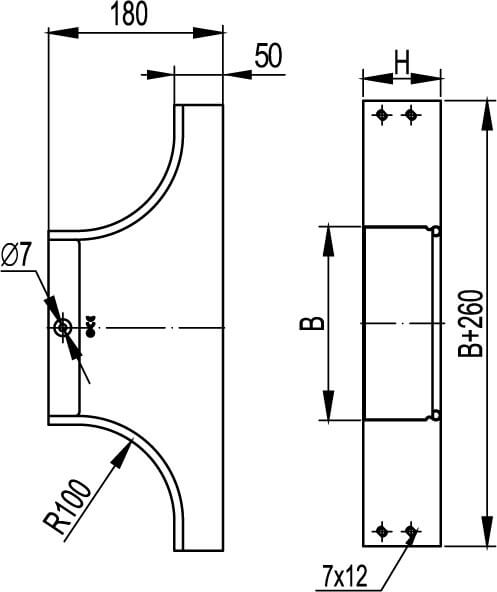

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
