| Model | Included connector |
| Surface protection | Zinc lamellar coating |
| Material | Steel |
| Inner radius, mm | 100 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 80 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |

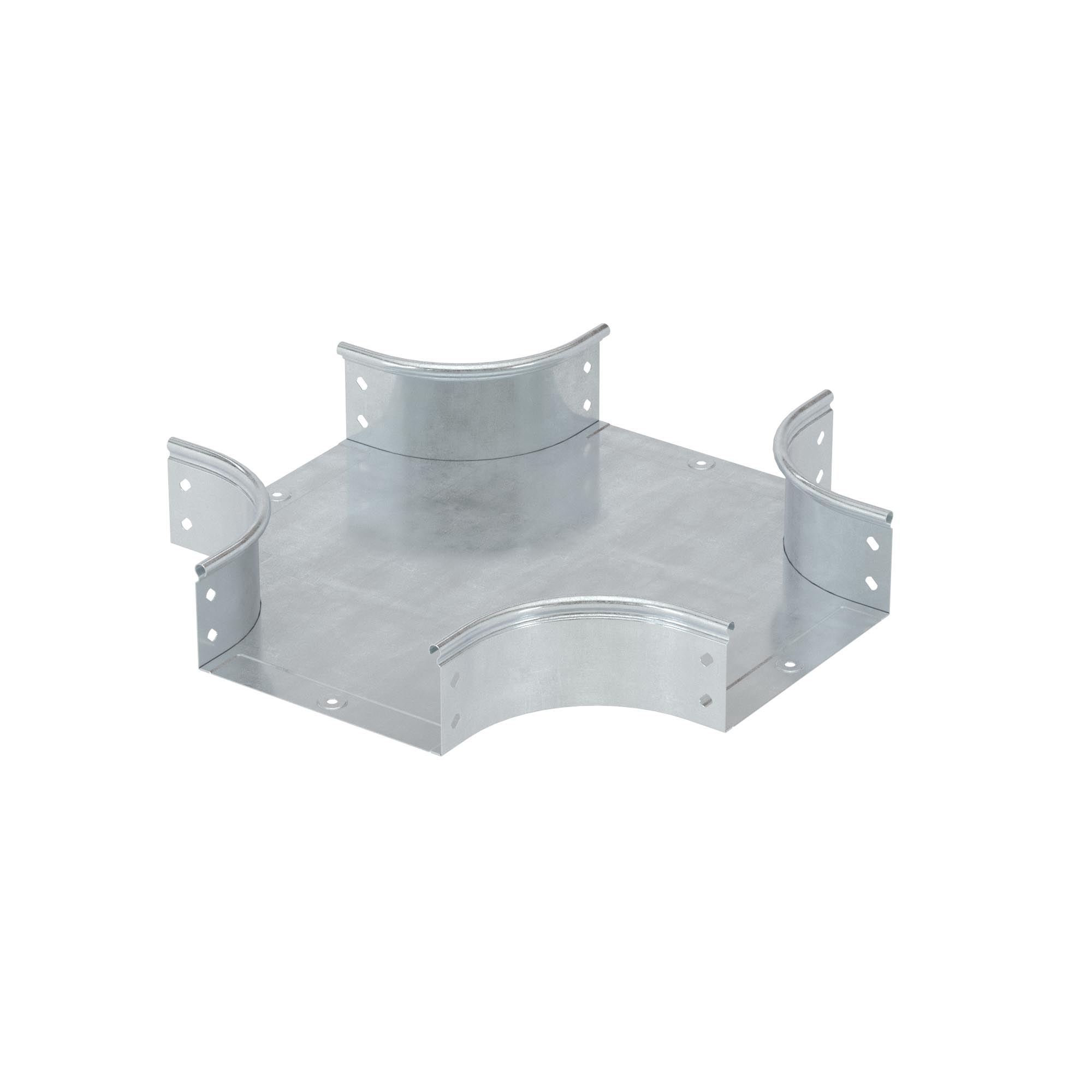

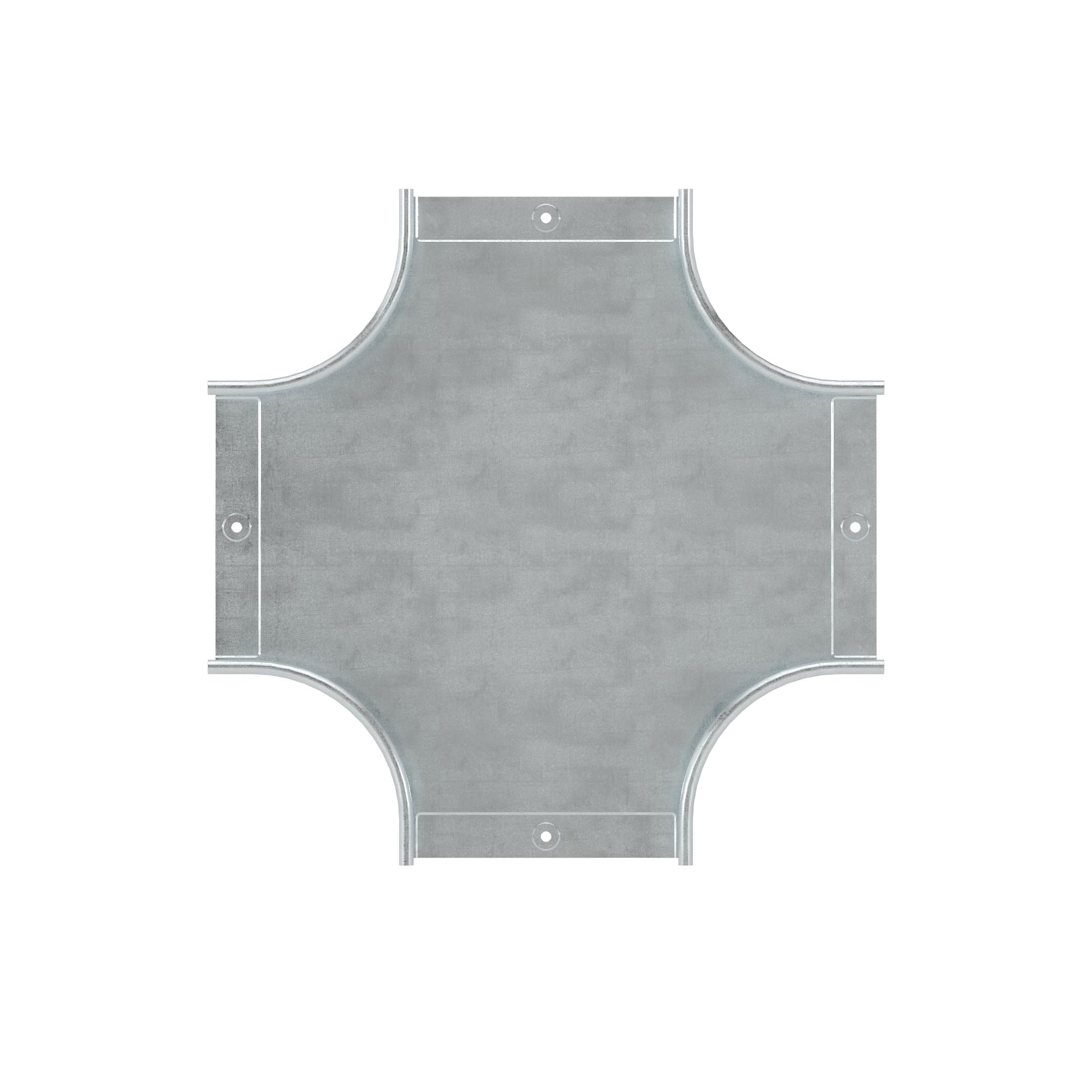

| Type of accessories | Horizontal cross |
| Height | 80 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 400 mm |
