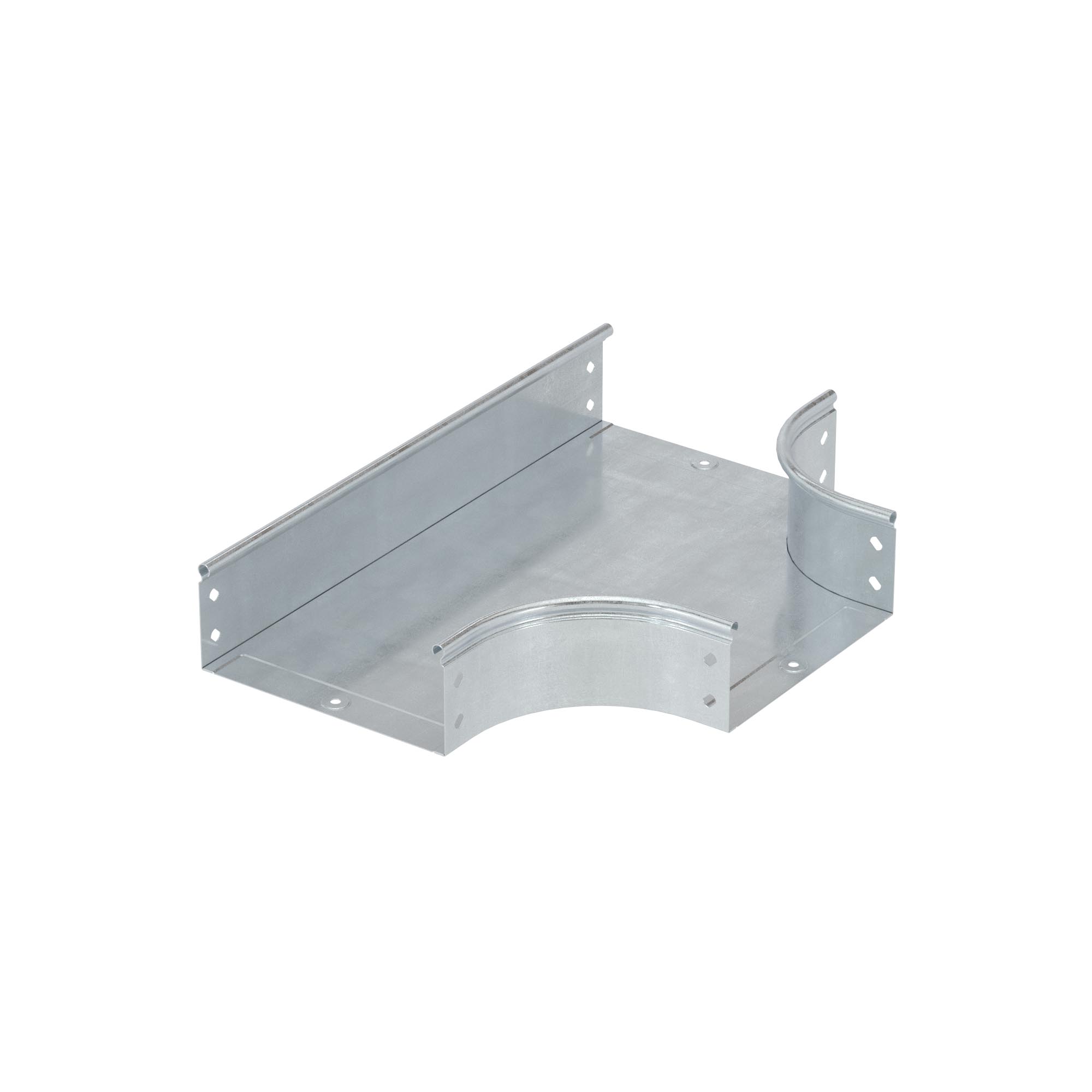

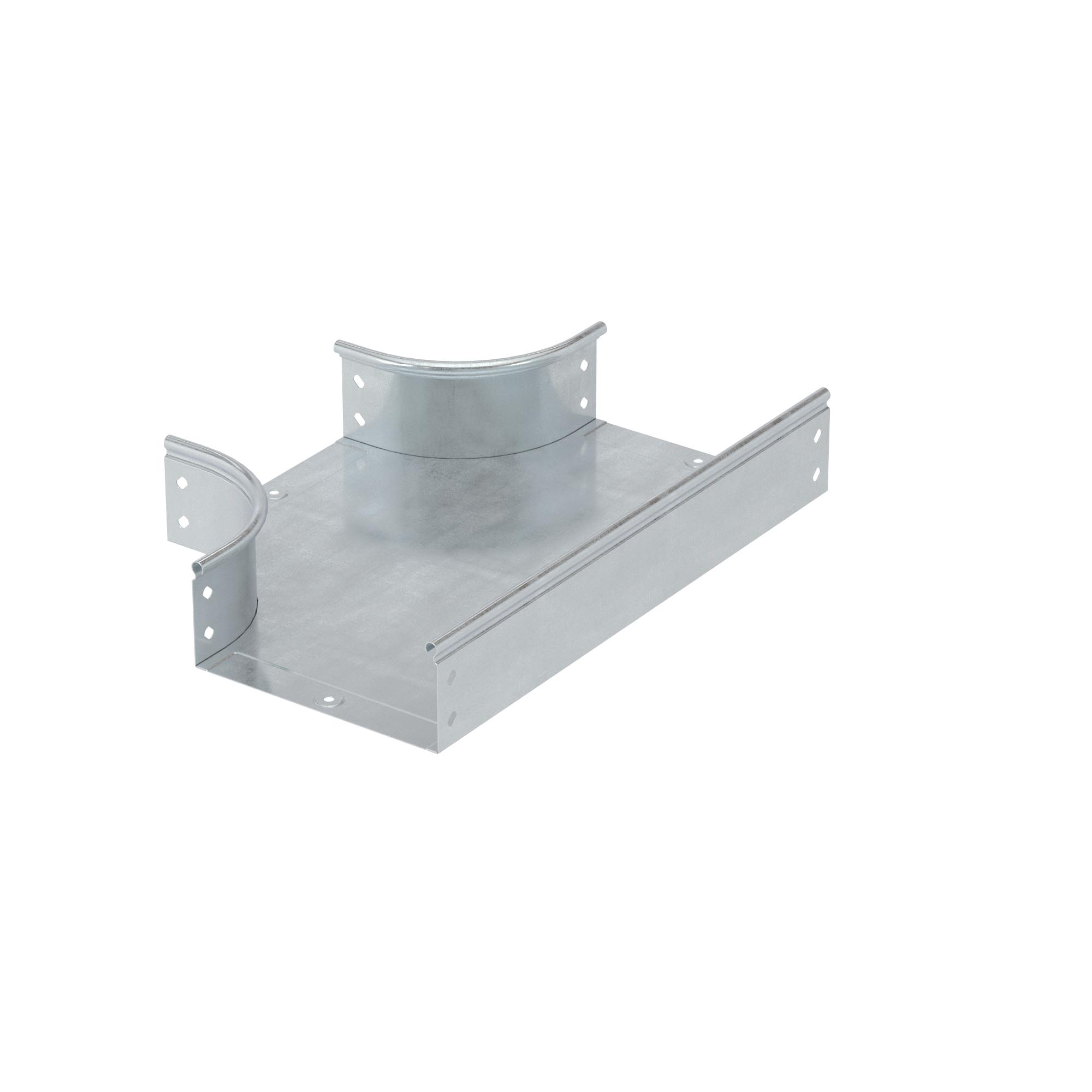

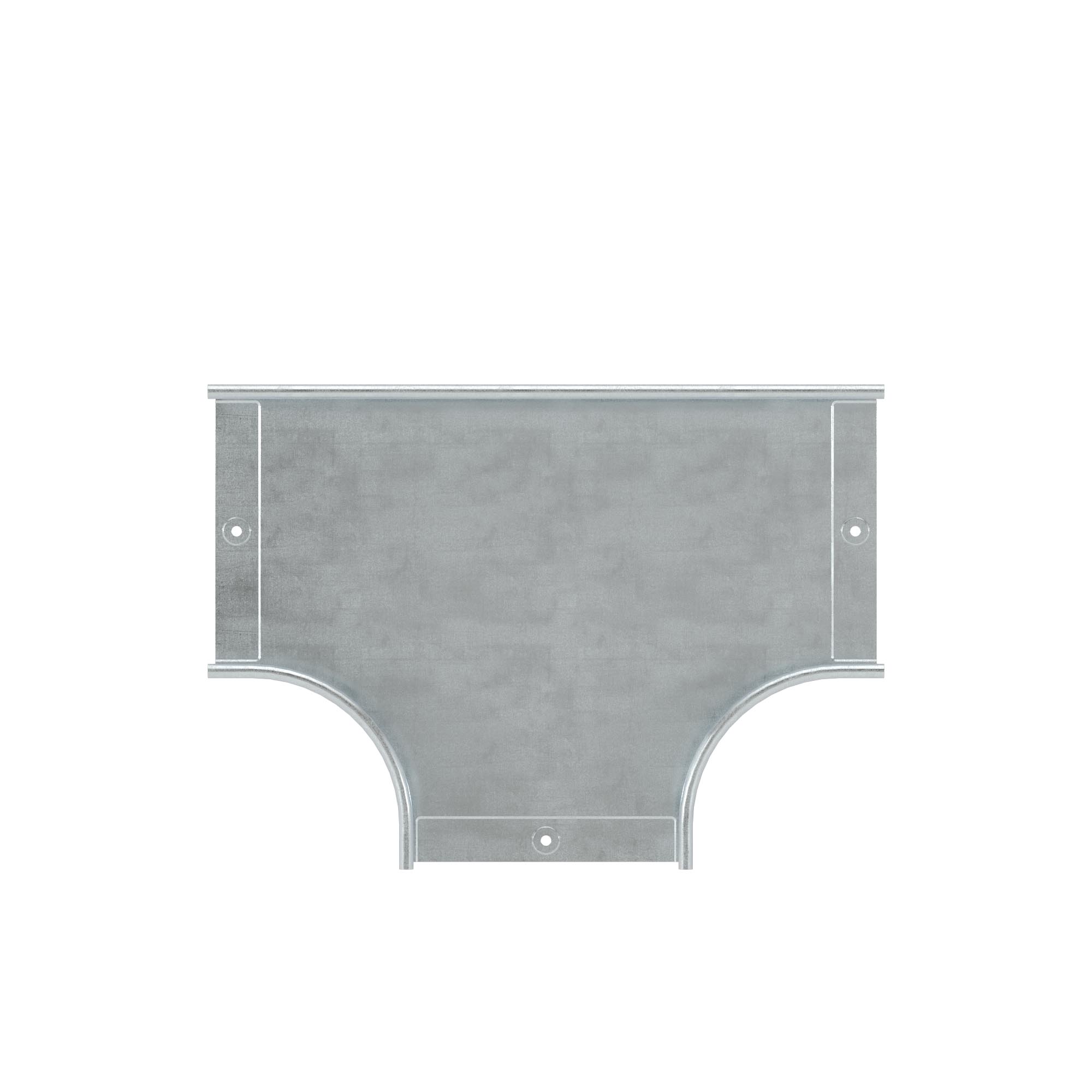

DPT T-tapper 400x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36126KZL
DPT T-tapper 400x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36126KZL
Construction type | T-piece horizontal |
Material quality | Steel |
Material | Steel |
Inner radius, mm | 100 |
Cable tray width, mm | 400 |
Cable tray height, mm | 50 |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Model | Included connector |
Surface protection | Continuously galvanized zinc-aluminium |
Product type | System accessories |
Type of accessories | Т-branch |
Height | 50 mm |
Thickness | 0.8 mm |
Material | Zinc-lamellated steel |
Width | 400 mm |
Kit accessory’s structure
Code | Name | Quantity |
37301HDZL | Joint Plate h. 50 HDZL | 6 pcs |
37501 | Copper earthing palte for equipotential connection CU | 3 pcs |
CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 18 pcs |
CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 18 pcs |
The accompanying goods

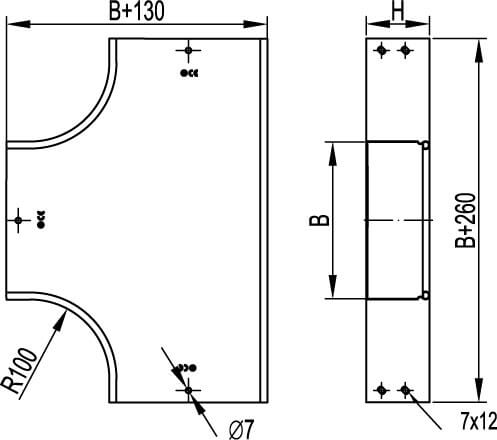

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
