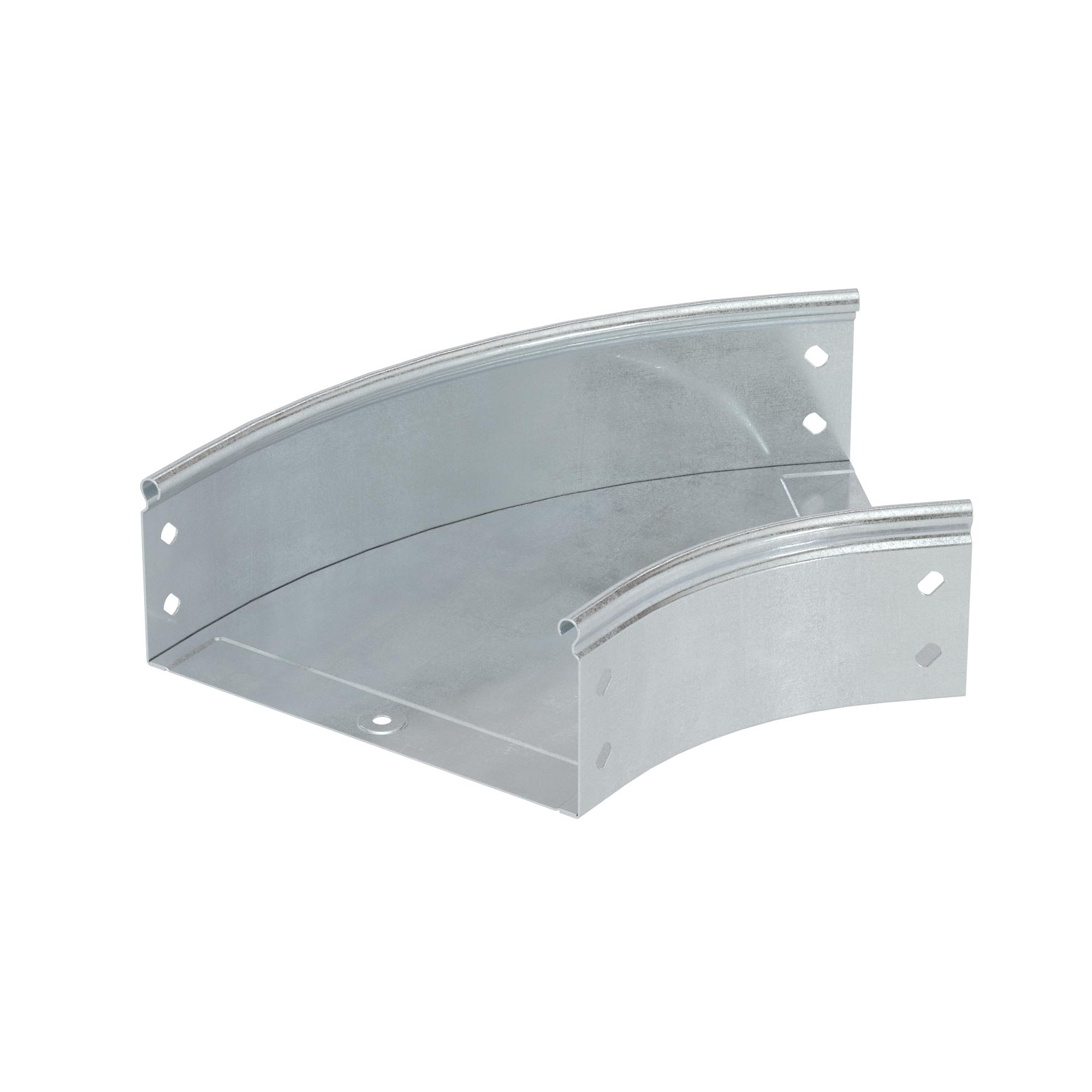

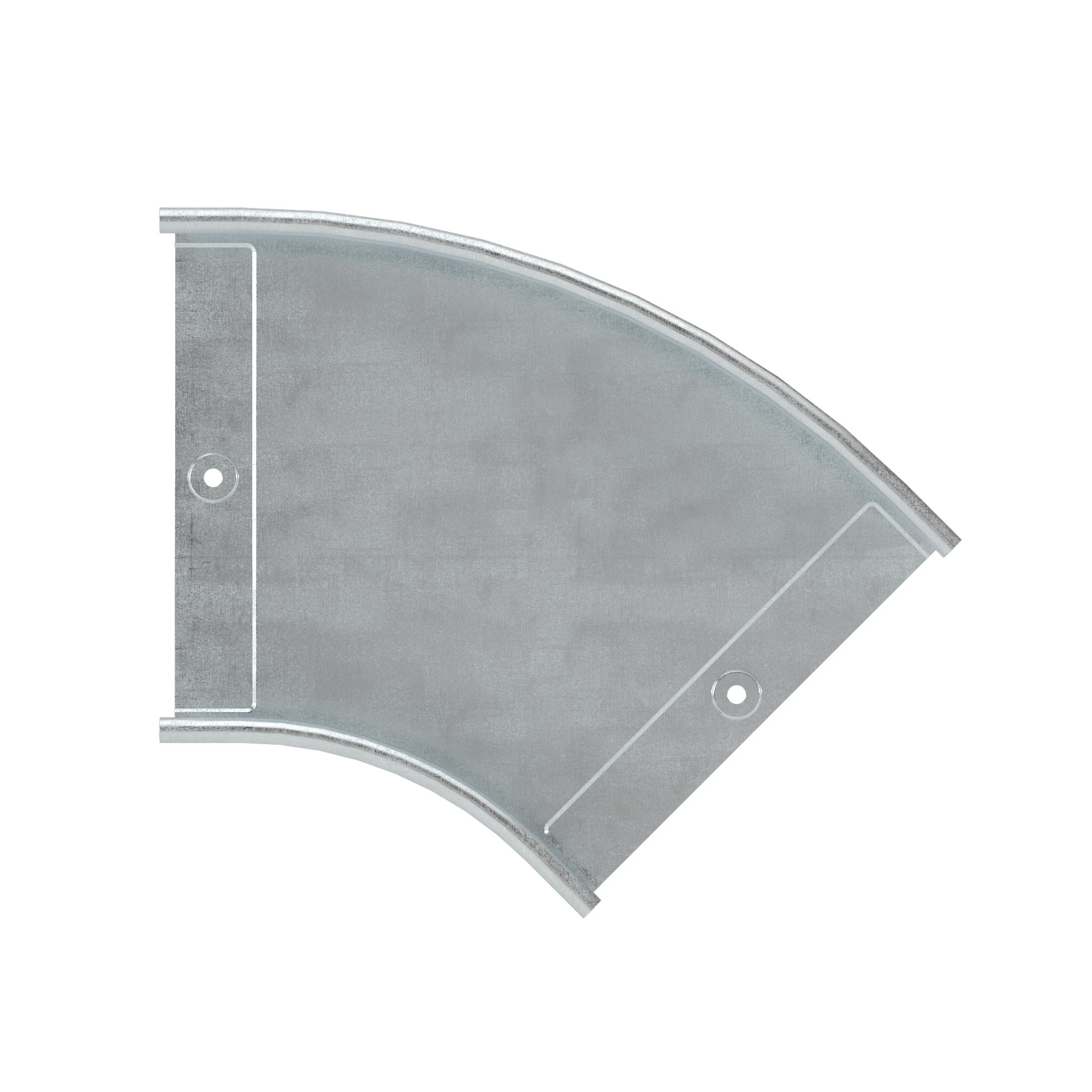

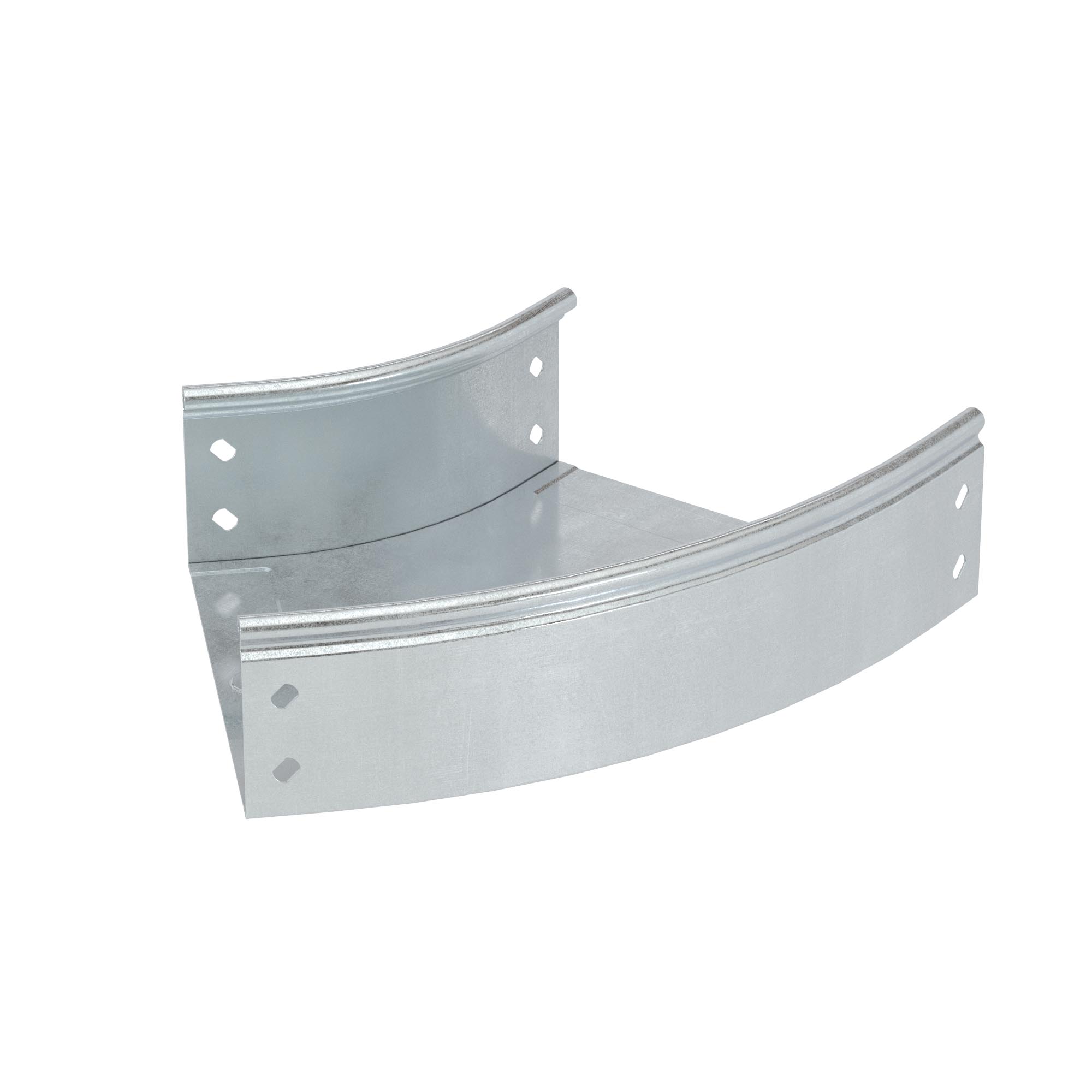

CPO 45 horizontal angle 300x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36065KZL
CPO 45 horizontal angle 300x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
CPO 45 horizontal angle 300x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36065KZL
  • To ask a question
  • Characteristics
  • Kit accessory’s structure
  • Accessories
  • The accompanying goods

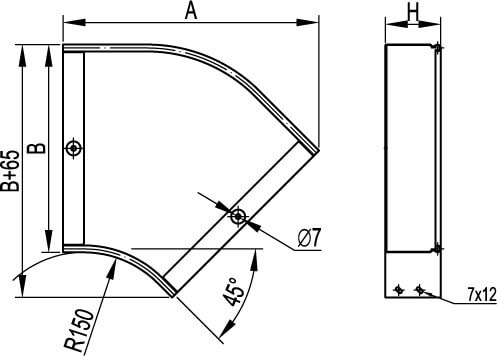

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 150
Cable tray width, mm 300
Cable tray height, mm 50
Change of direction Horizontal
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 45º Horizontal bend
Width 300 mm
Height 50 mm
Material Zinc-lamellated steel
