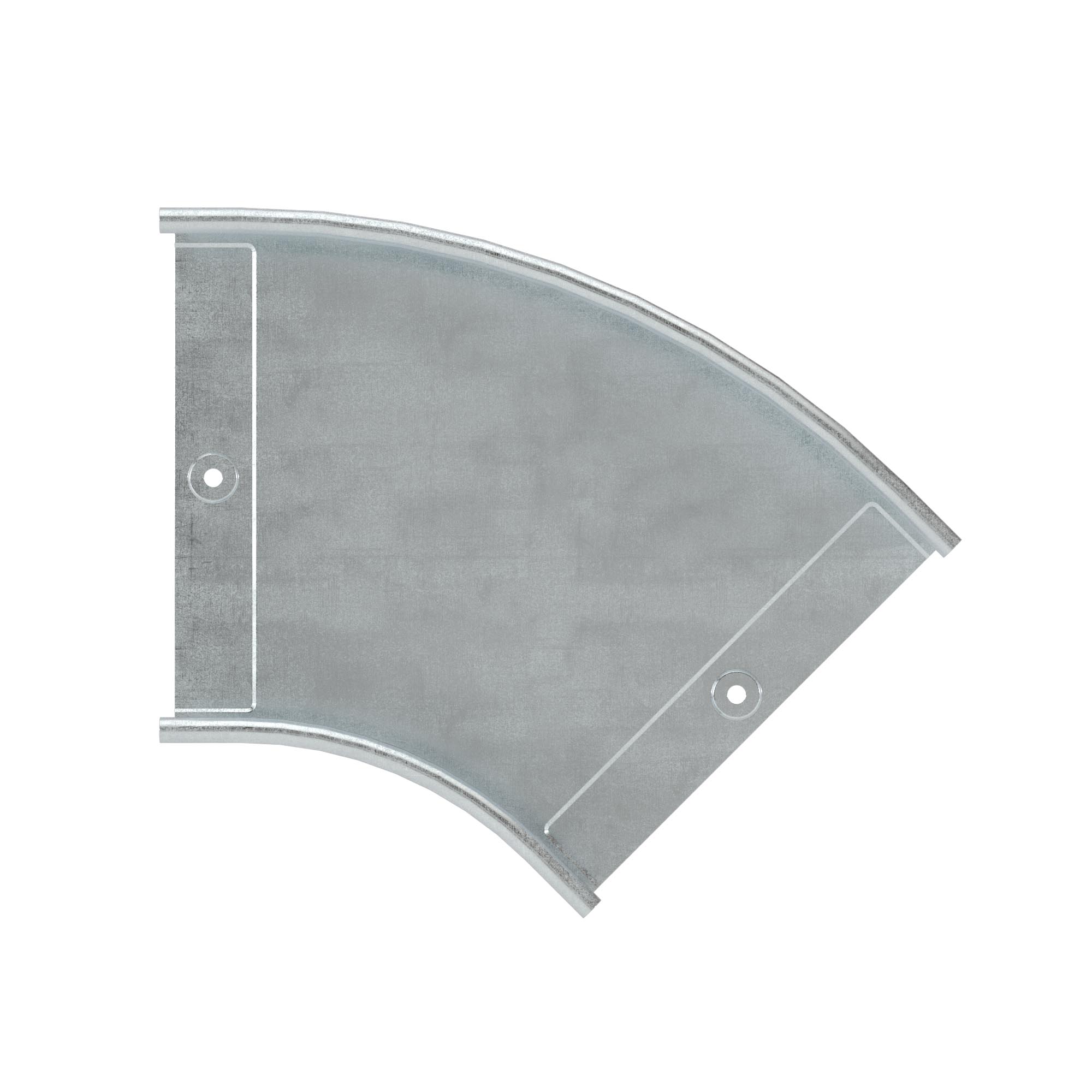

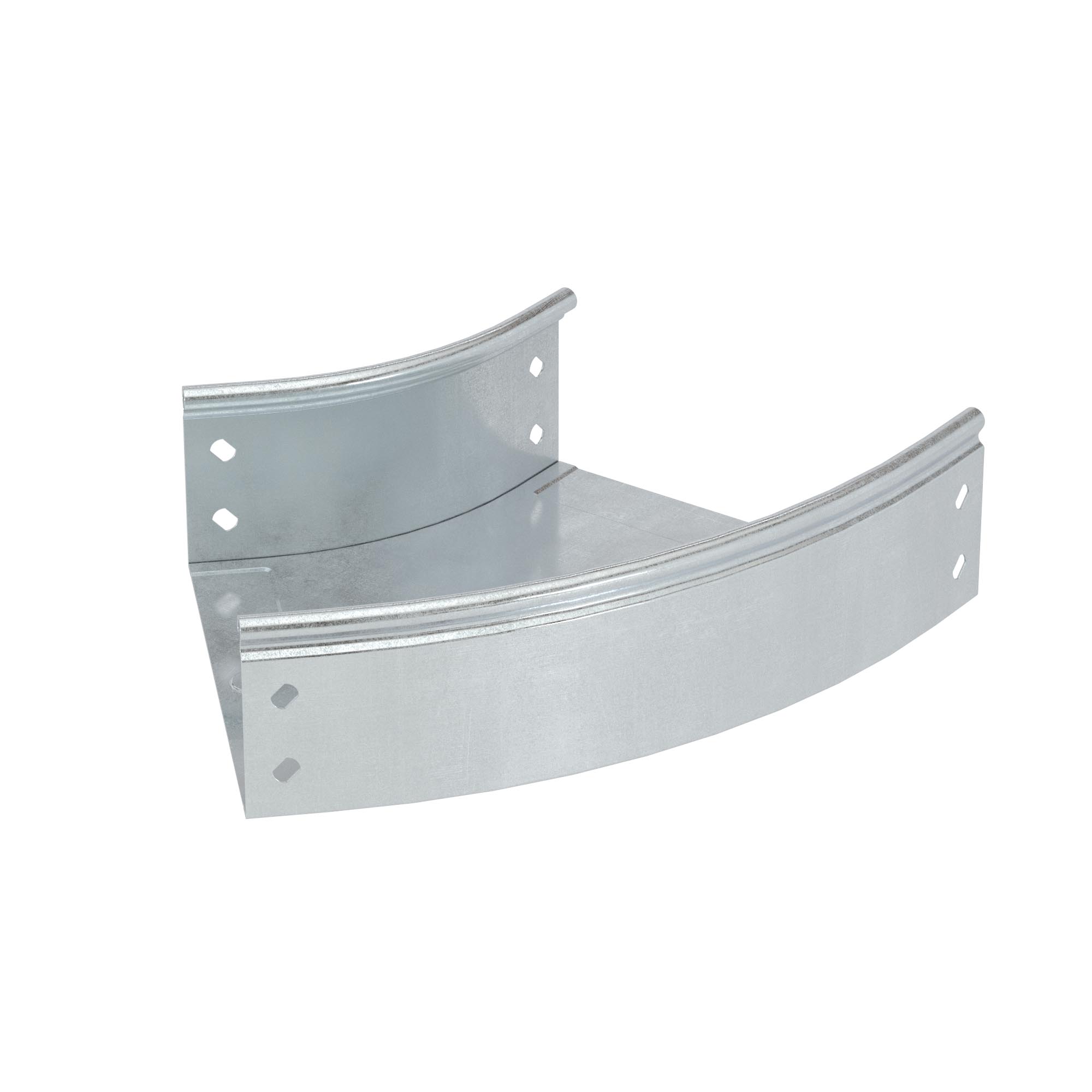

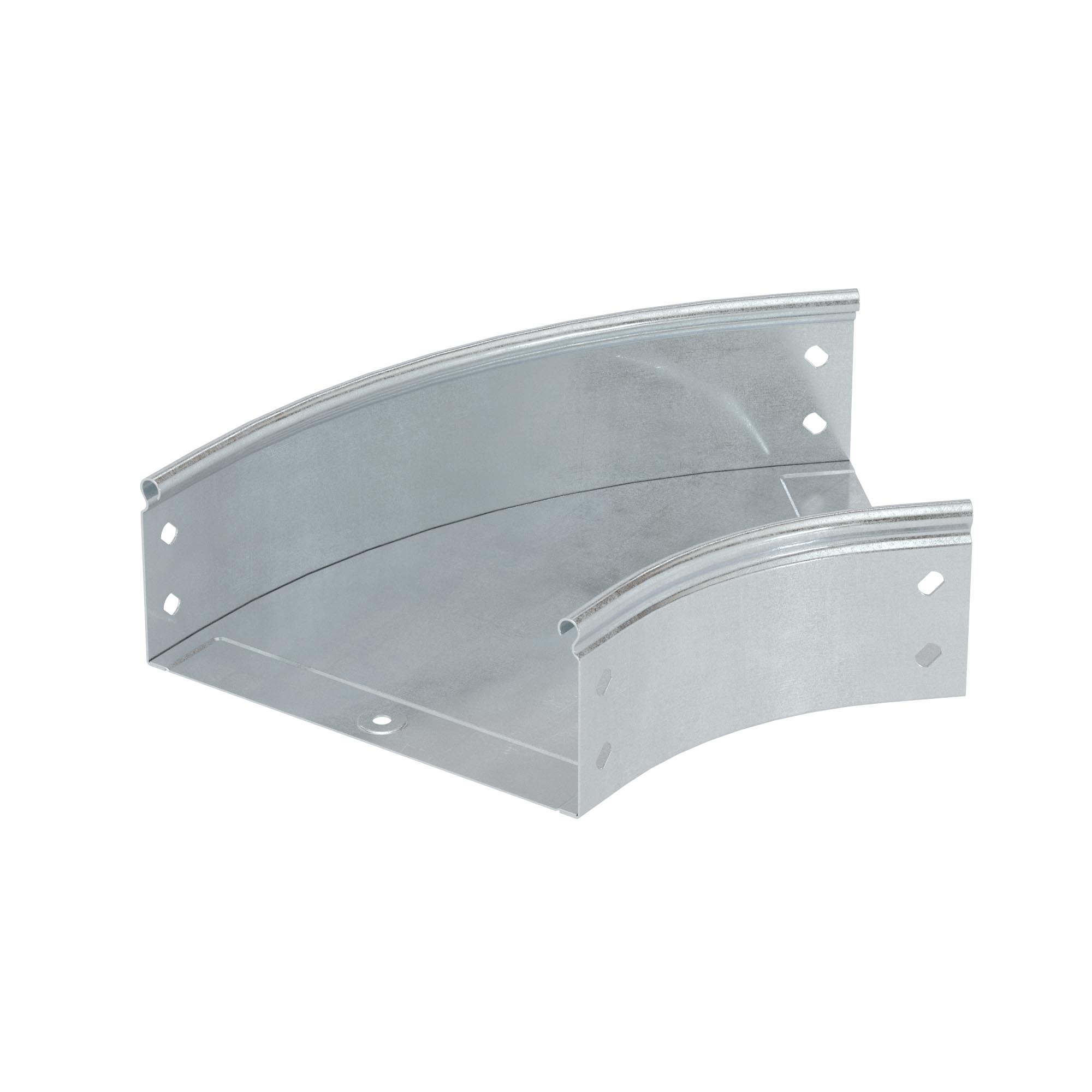

CPO 45 horizontal angle 200x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36064KZL

CPO 45 horizontal angle 200x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36064KZL
Colour Light grey
Model Included connector
Surface protection Zinc lamellar coating
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 150
Cable tray width, mm 200
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories 45º Horizontal bend
Width 200 mm
Height 50 mm
Material Zinc lamellar coating
The accompanying goods

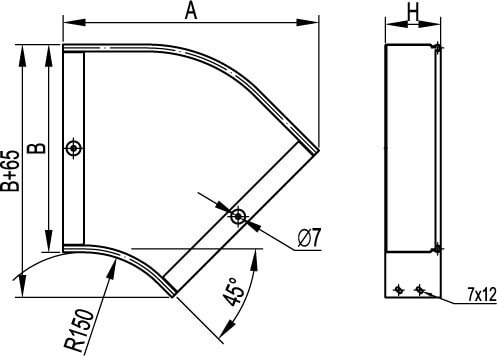

Drawings
