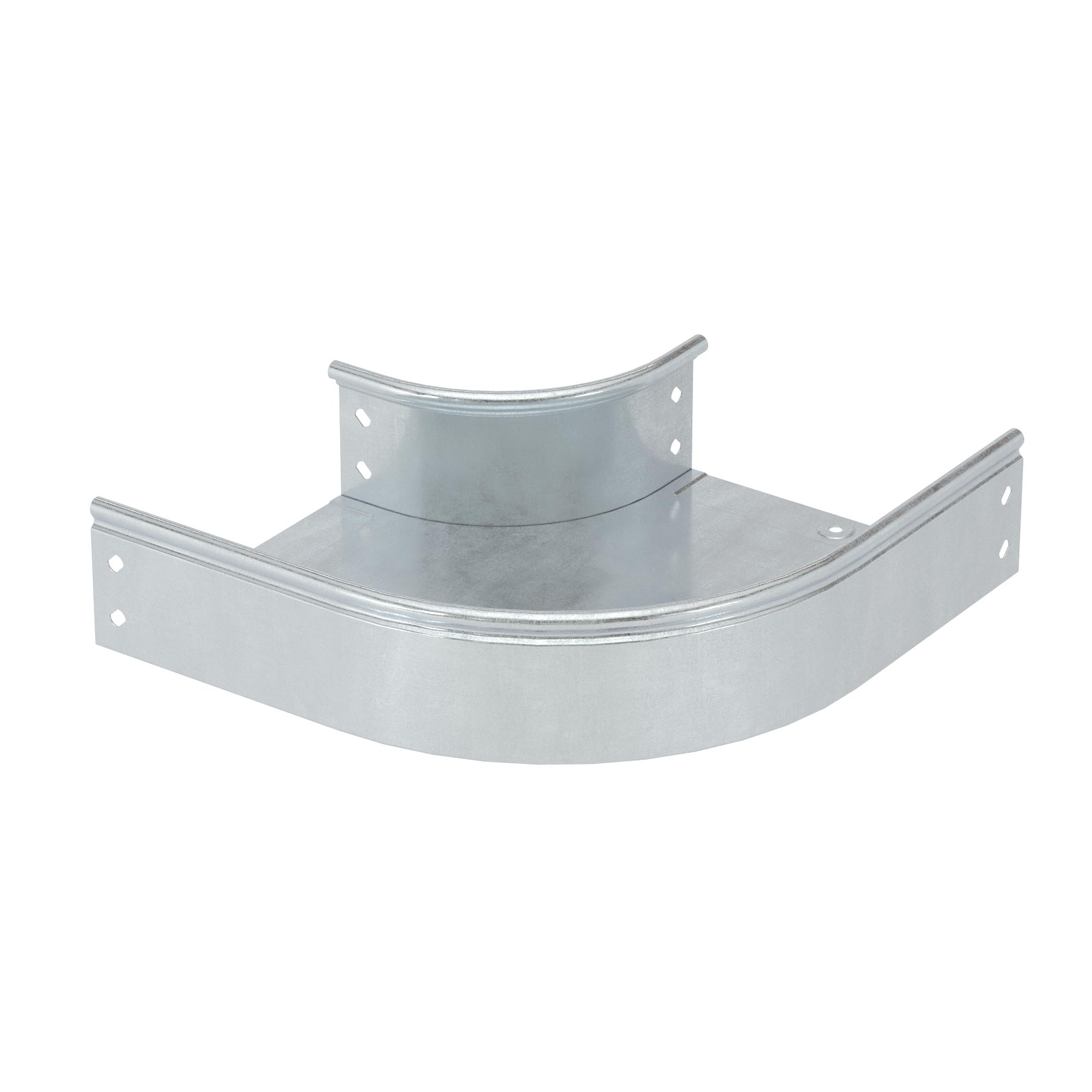

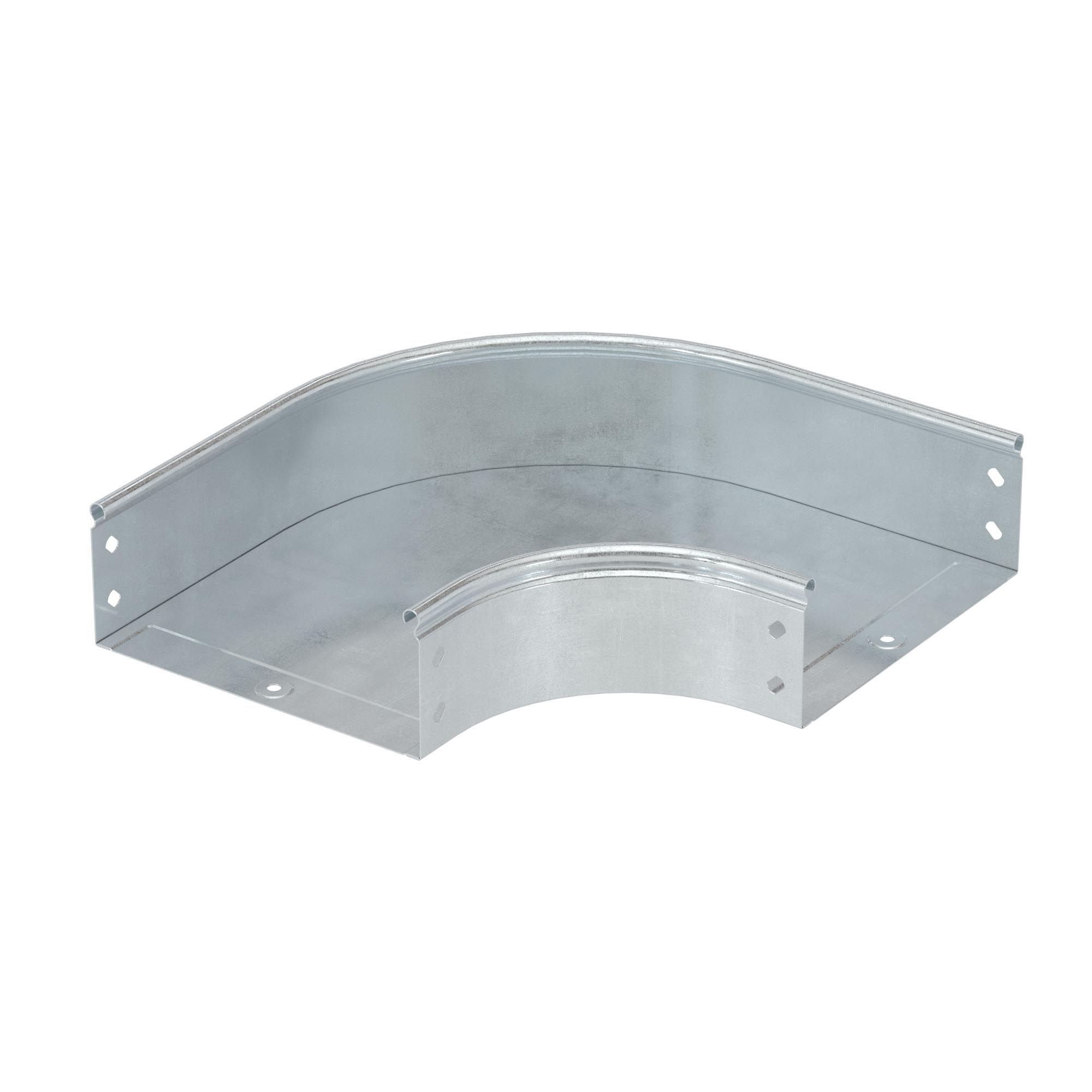

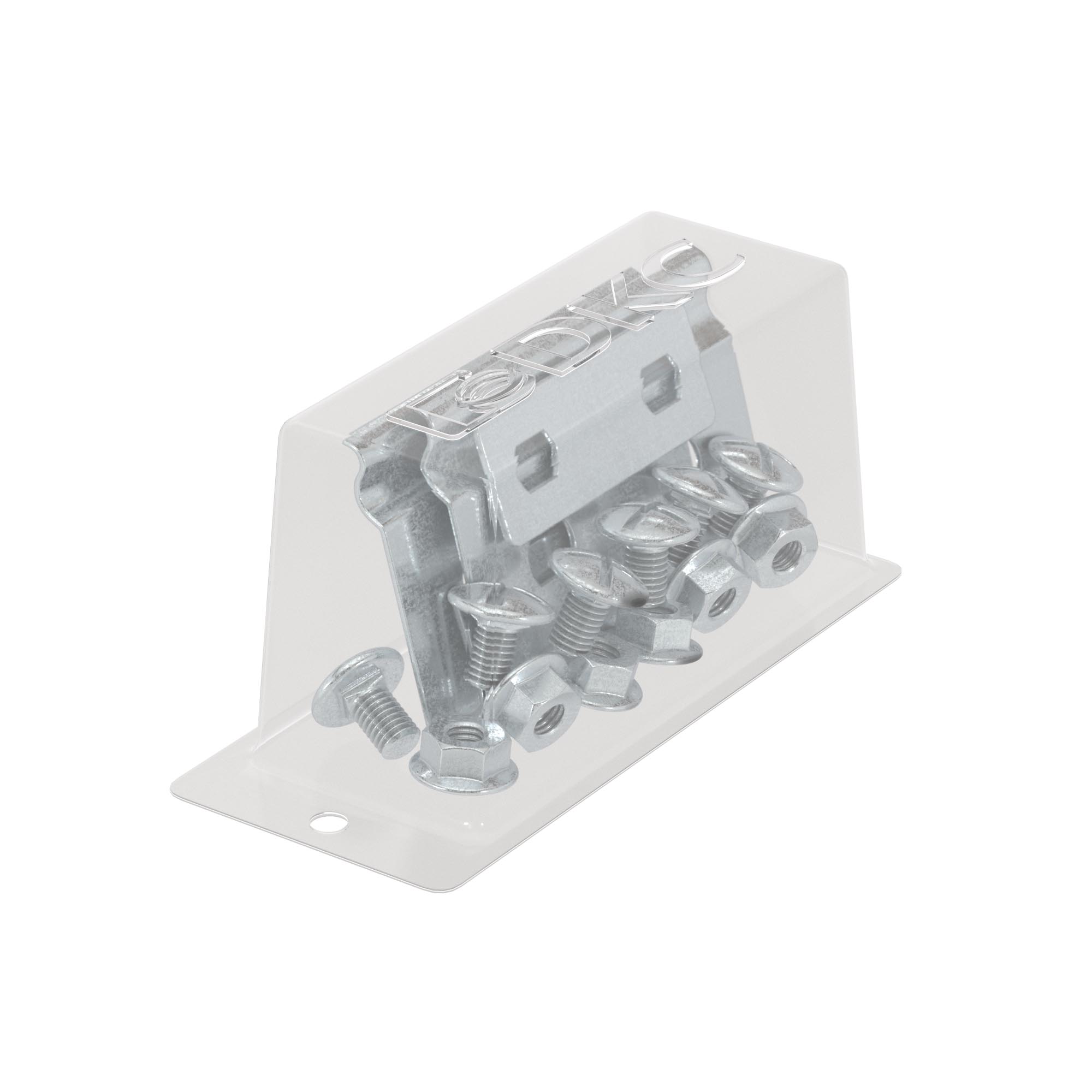

CPO 90 horizontal angle 400x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code:
36006KZL
Code:
36006KZL
| Model | Included connector |
| Surface protection | Zinc lamellar coating |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |

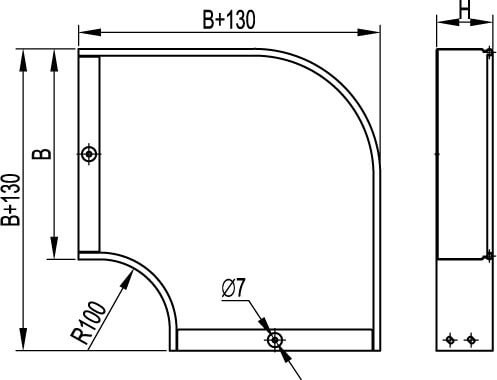

| Inner radius, mm | 100 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 50 |
| Change of direction | Horizontal |
| Suitable for circuit integrity | Yes |
| With cover | No |
| Bend model | Smooth bend |
| Product type | System accessories |
| Type of accessories | 90º Horizontal bend |
| Height | 50 mm |
| Thickness | 0.8 mm |
| Material | Zinc-lamellated steel |
| Width | 400 mm |
