CDSD 90 external vertical angle 100x80, included with fasteners (joint plates GTO, screws, nuts), stainless steel
Code: 37002KINOX
CDSD 90 external vertical angle 100x80, included with fasteners (joint plates GTO, screws, nuts), stainless steel
Code: 37002KINOX
| Colour | Light grey |
| Model | Included connector |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Stainless steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 100 |
| Cable tray width, mm | 100 |
| Cable tray height, mm | 80 |
| Change of direction | Vertically descending |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Surface protection | Bare |
| Product type | System accessories |
| Type of accessories | External vertical angle, CDSD 90 adapter |
| Height | 80 mm |
| Material | Stainless steel AISI 304 |
| Width | 100 mm |

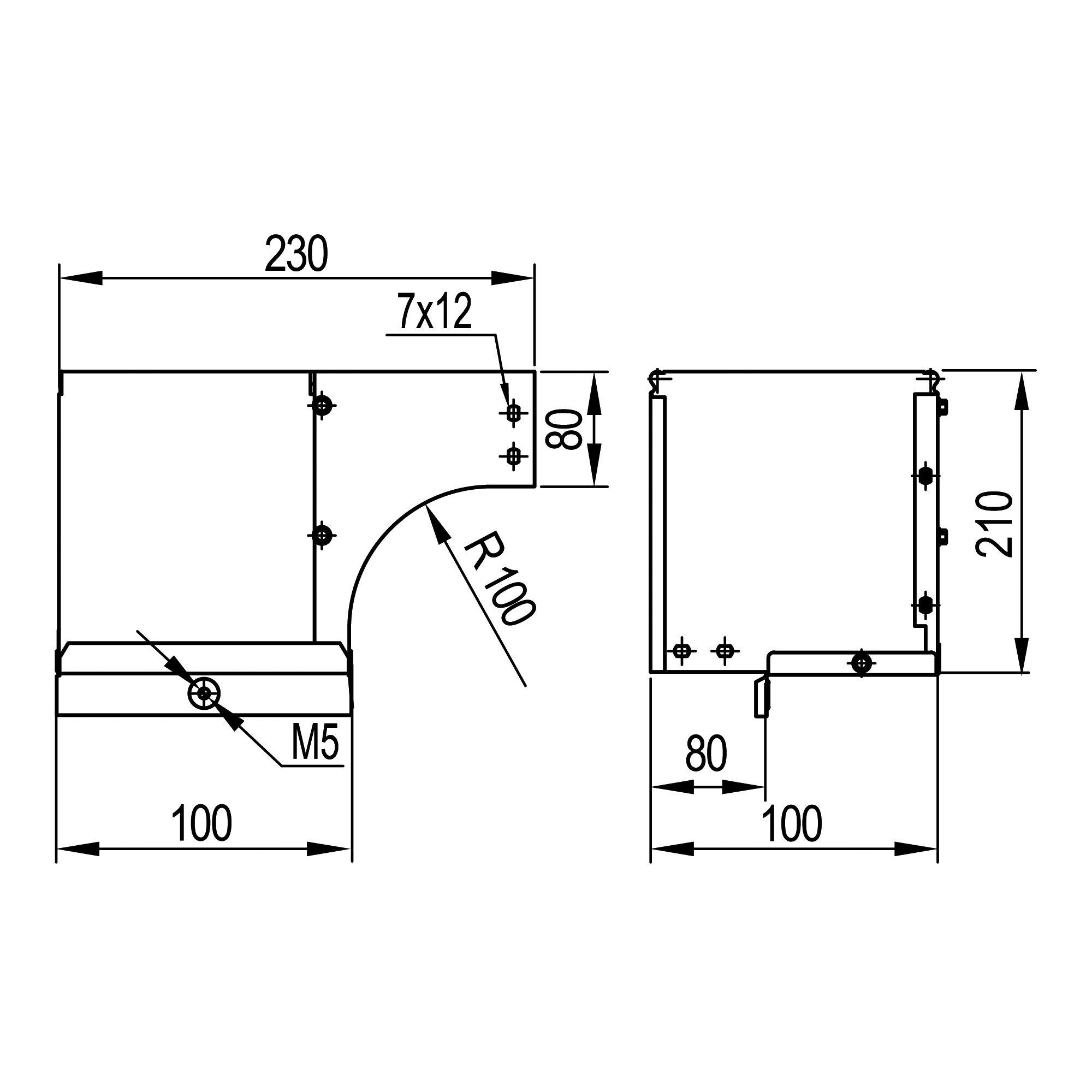

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
