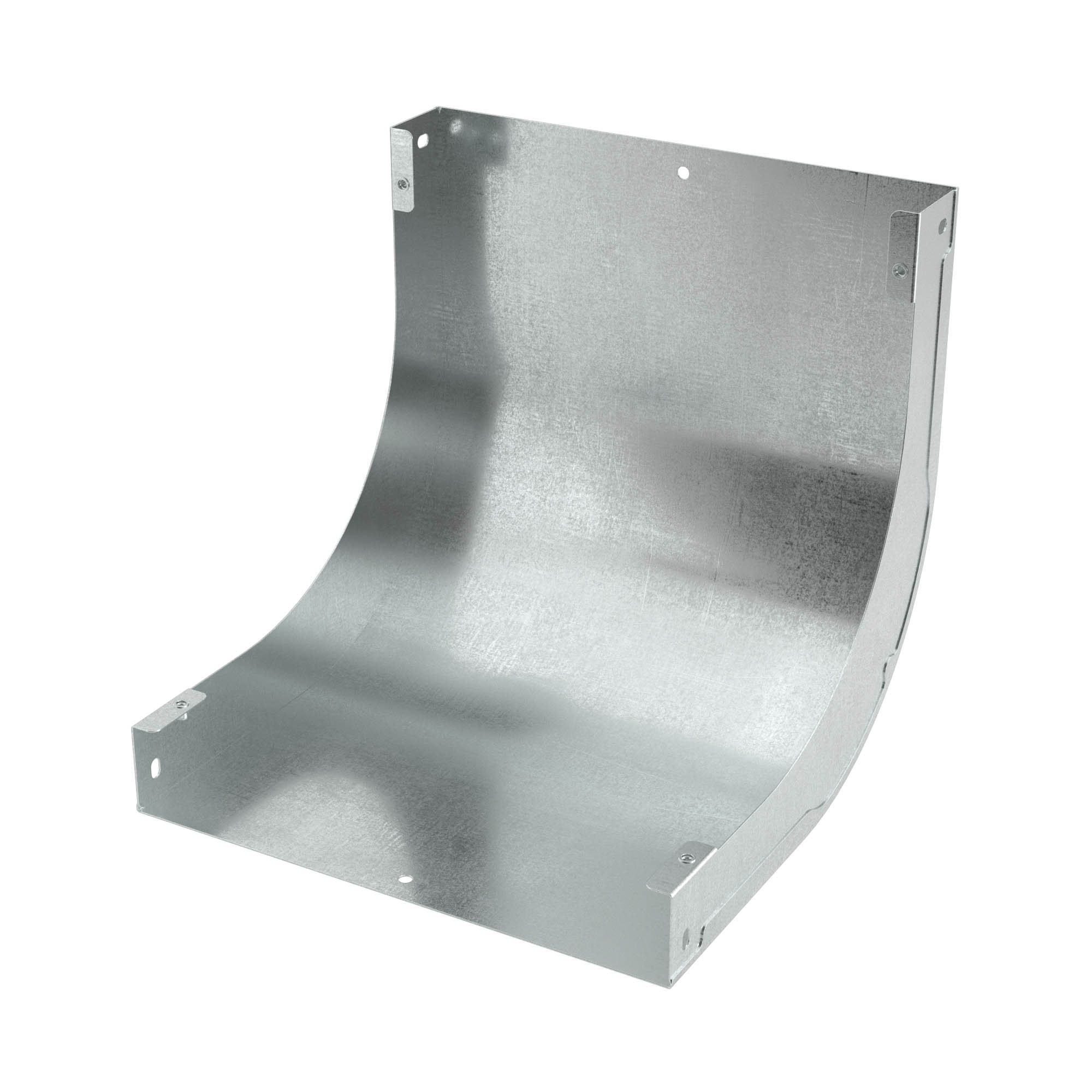

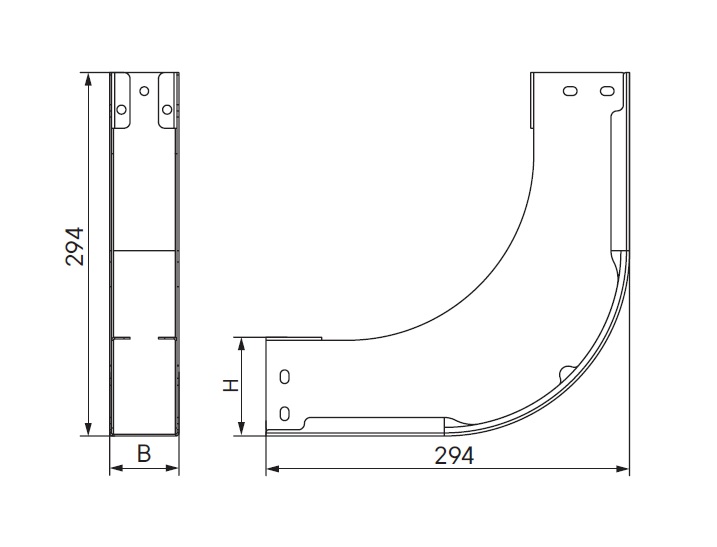

Internal vertical angle 90 35x150, included with fasteners (joint plates GTO, screws, nuts) hot galvanizing method
Code:
SIS3515KHDZ
Code:
SIS3515KHDZ
| Model | Included connector |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Cable tray width, mm | 150 |
| Cable tray height, mm | 35 |
| Change of direction | Vertically rising |
| Suitable for circuit integrity | Yes |
| Bend model | Smooth bend |
| With cover | No |
| Product type | System accessories |
| Type of accessories | 90º vertical inner bend |
| Height | 35 mm |
| Thickness | 0.8 mm |
| Material | Hot-dip galvanized |
| Width | 150 mm |
