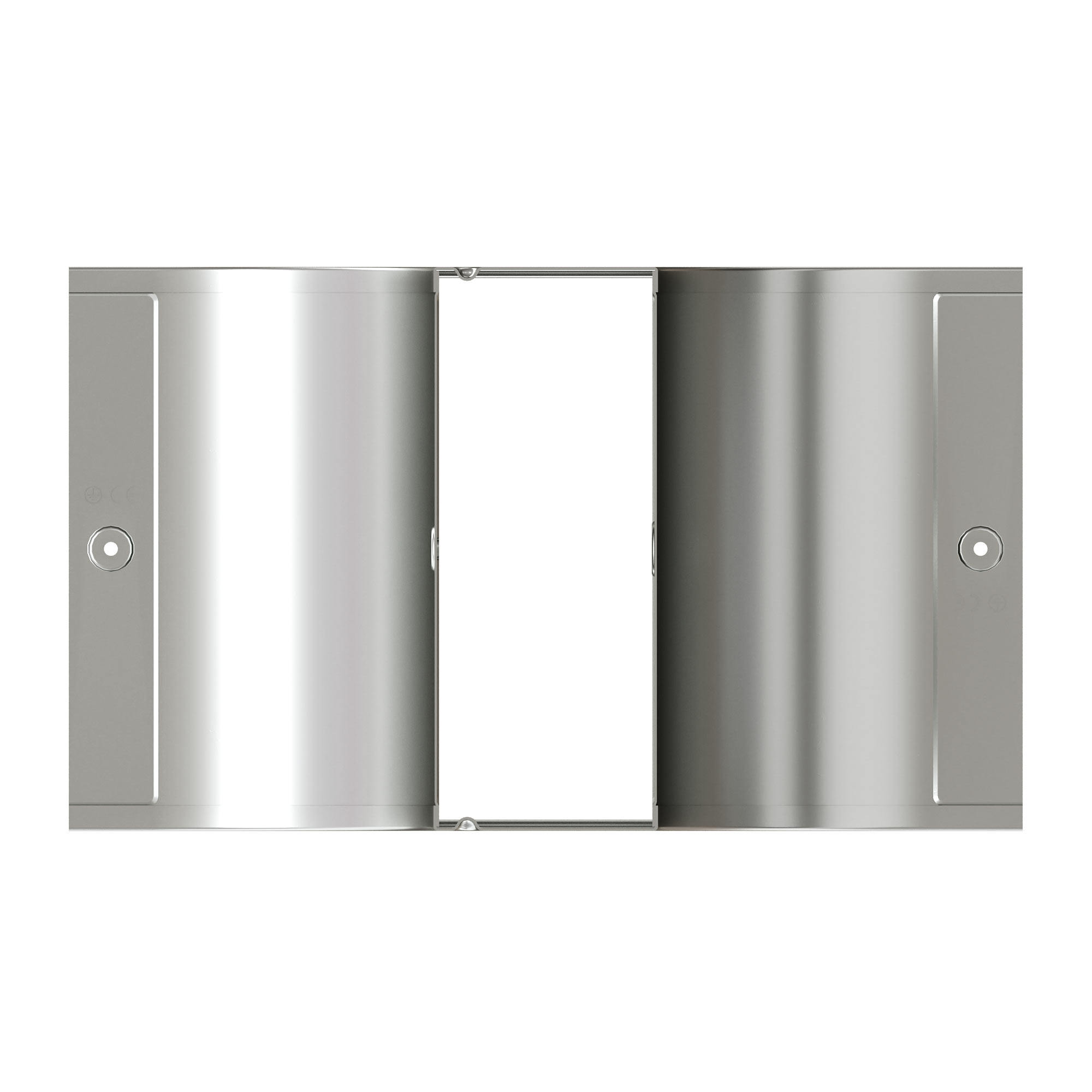

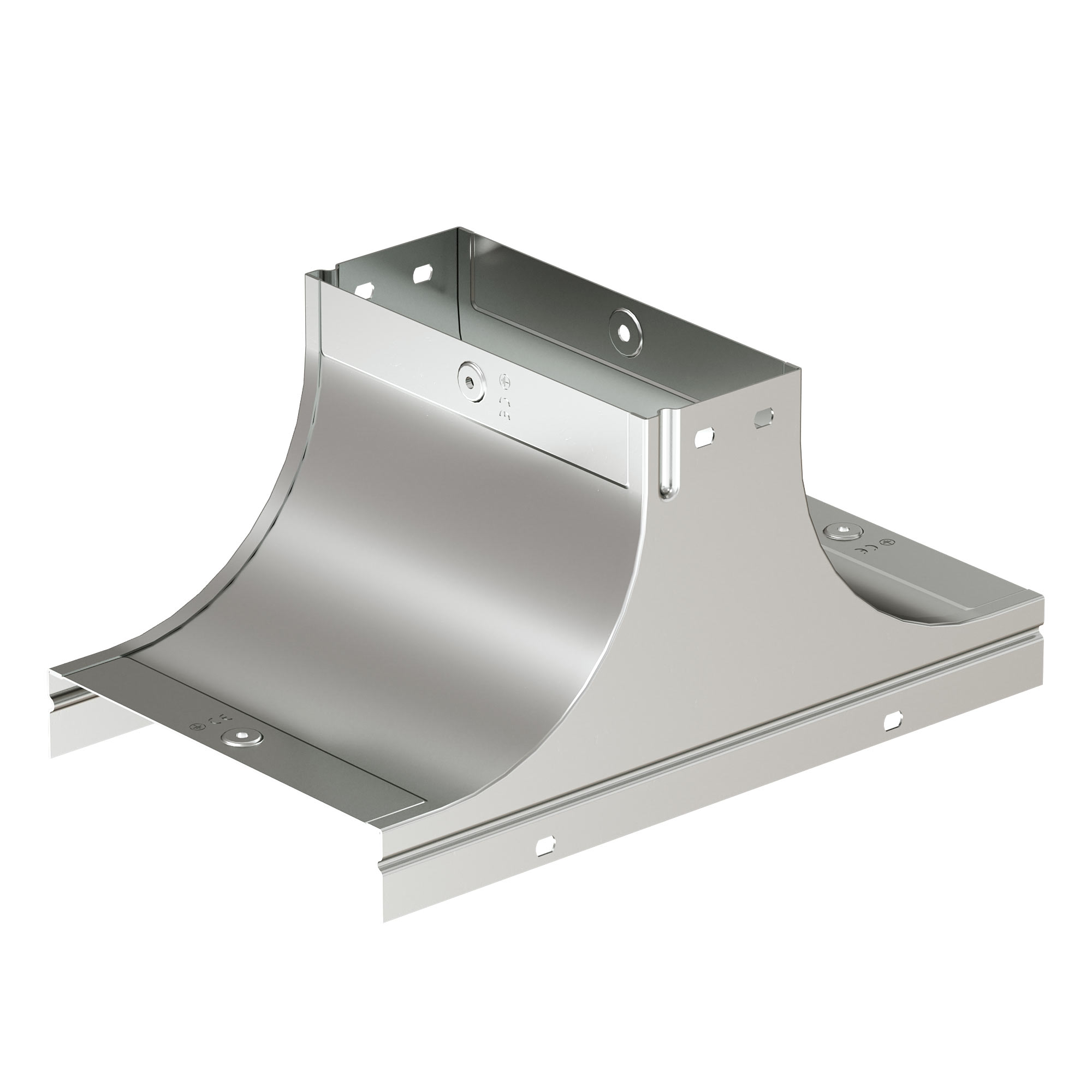

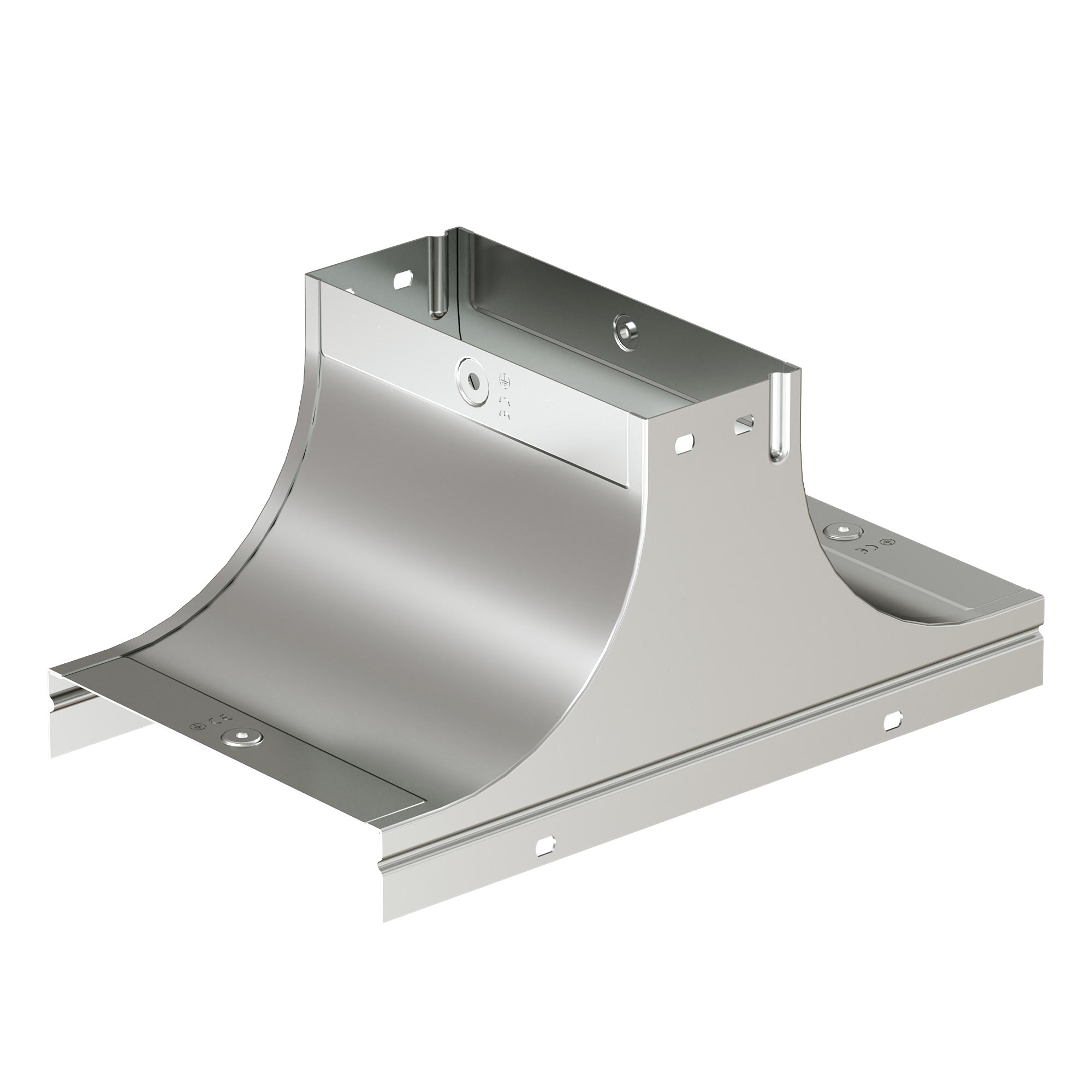

TS tapper-cover 100x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code:
37242KHDZ
TS tapper-cover 100x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code:
37242KHDZ
Colour | Light grey |
Surface protection | Hot-dip galvanized |
Height side wall, mm | 80 |
Material | Steel |
Tray width in horizontal direction, mm | 100 |
Tray width in vertical direction, mm | 100 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Material quality | Steel |
Product type | Covers for system accessories |
Type of accessories | Cover-branch TS |
Height | 80 mm |
Thickness | 1.0 mm |
Material | Hot-dip galvanized |
Width | 100 mm |
Kit accessory’s structure
Code | Name | Quantity |
37303HDZL | Joint Plate h. 80 HDZL | 2 pcs |
37501 | Copper earthing palte for equipotential connection CU | 1 pcs |
CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 14 pcs |
CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 14 pcs |

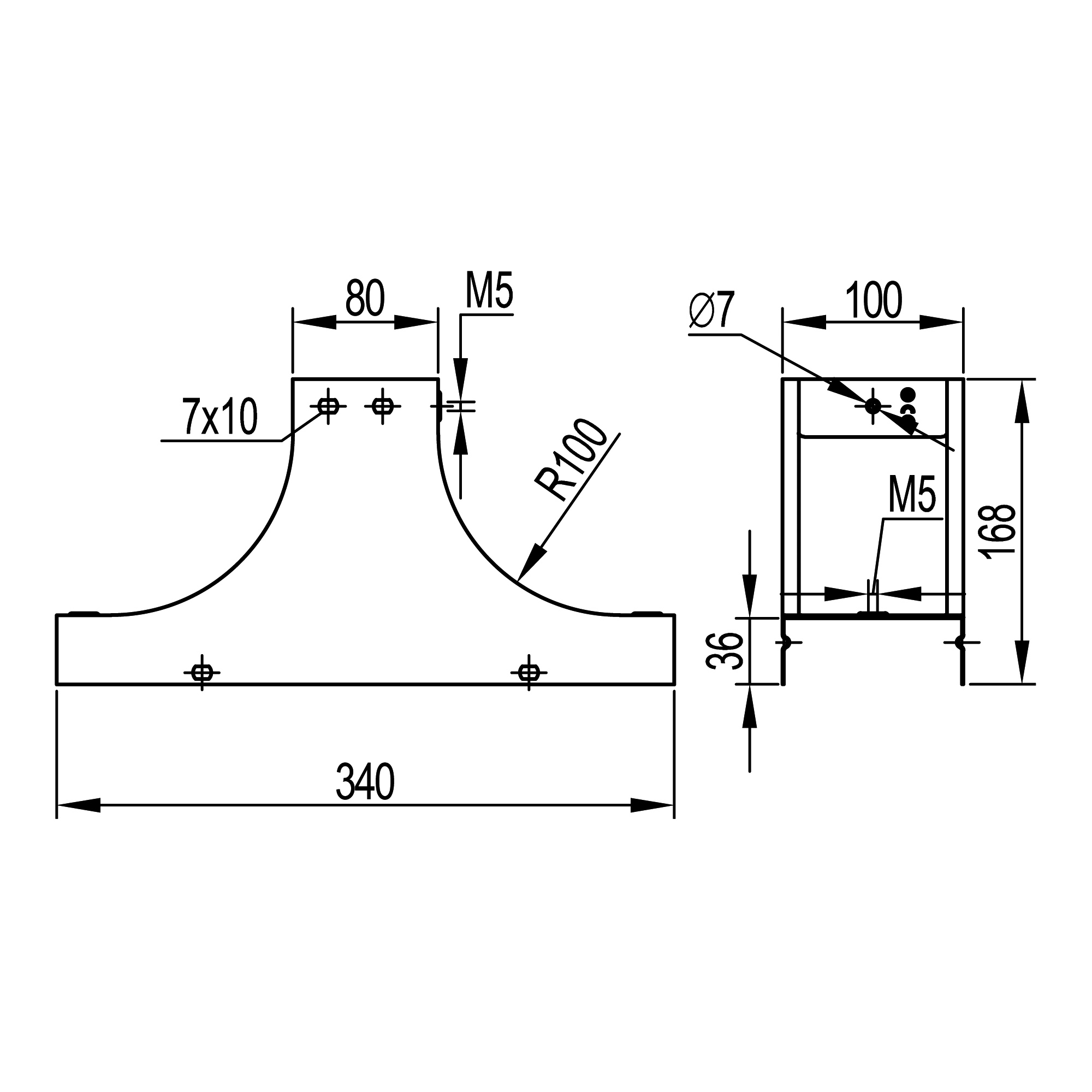

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
