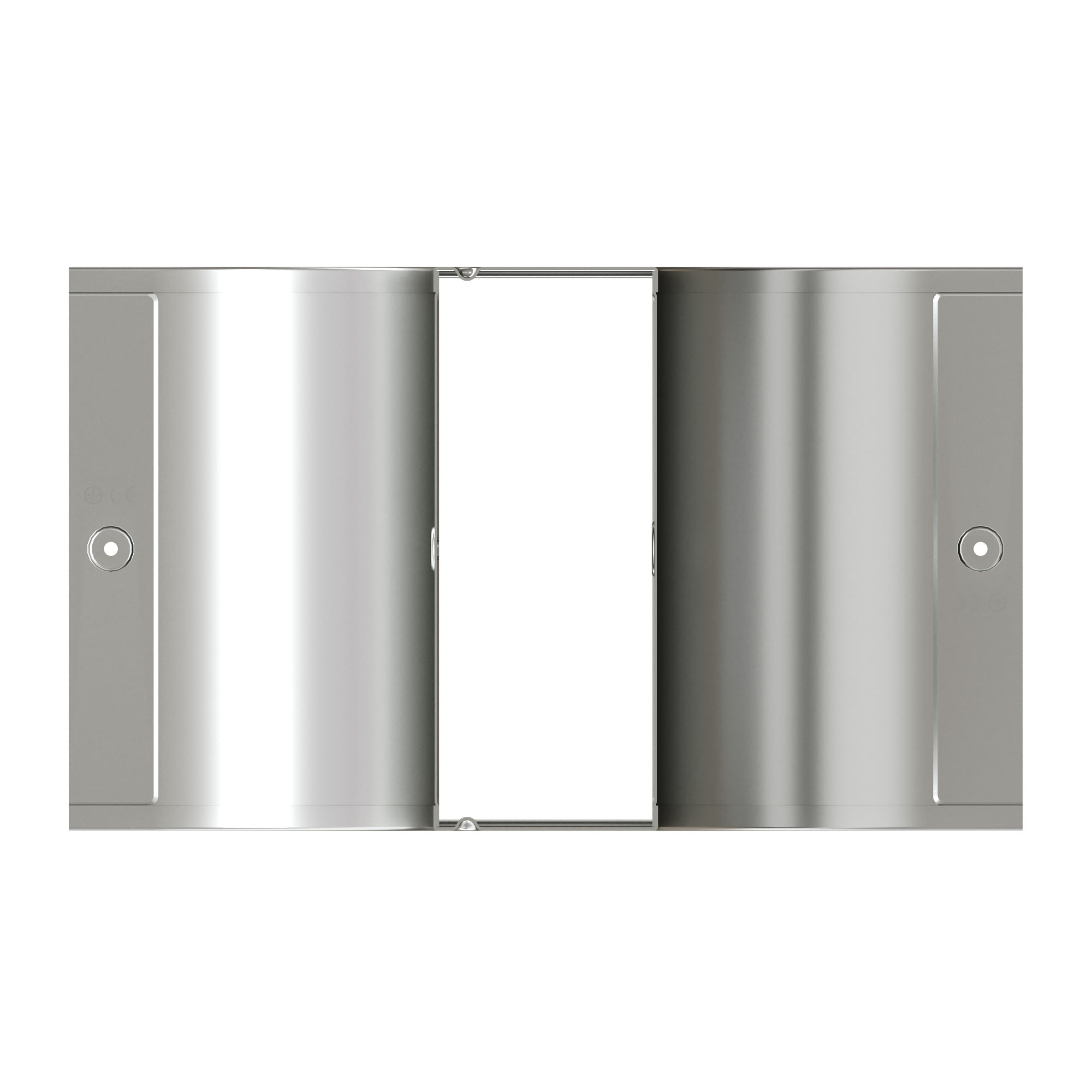

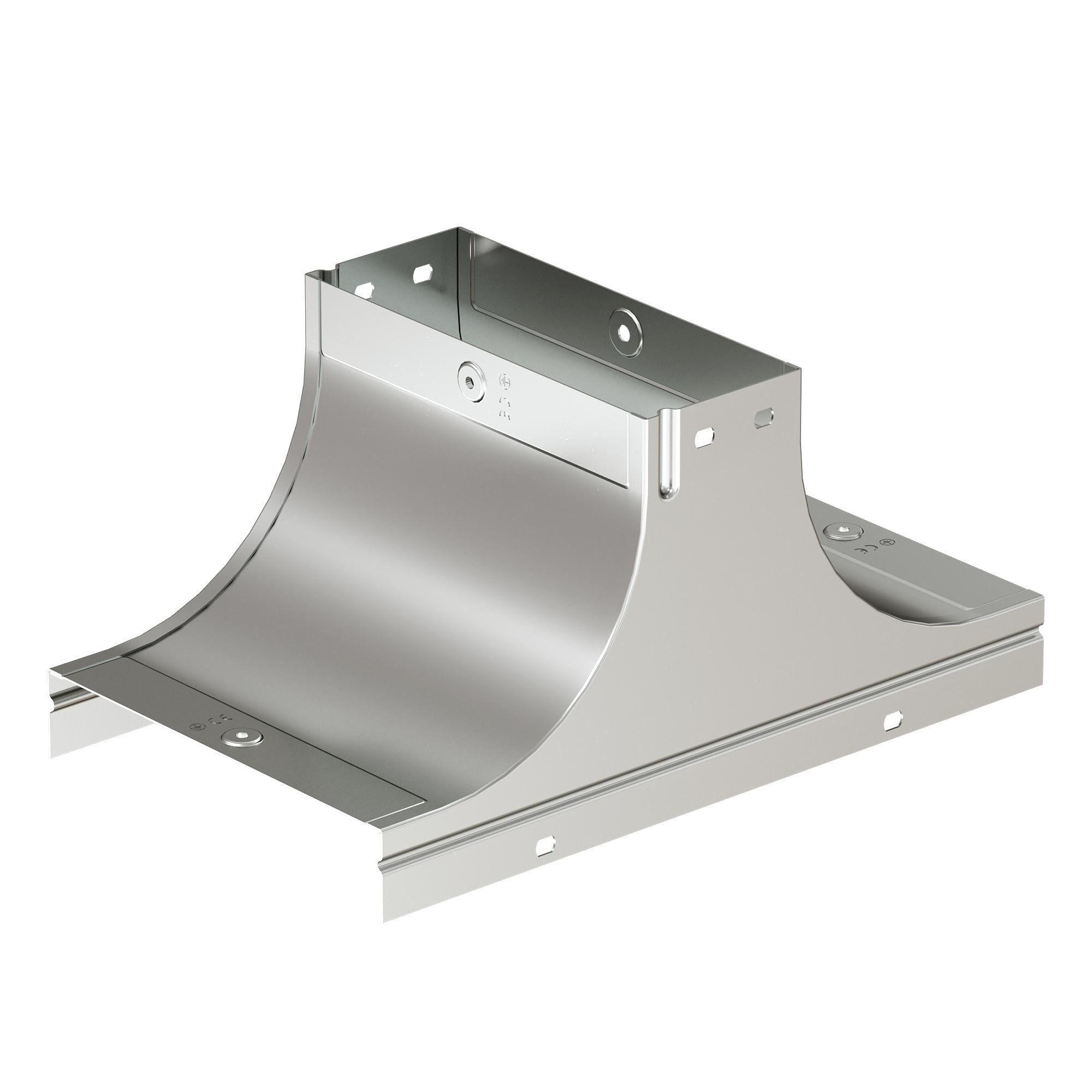

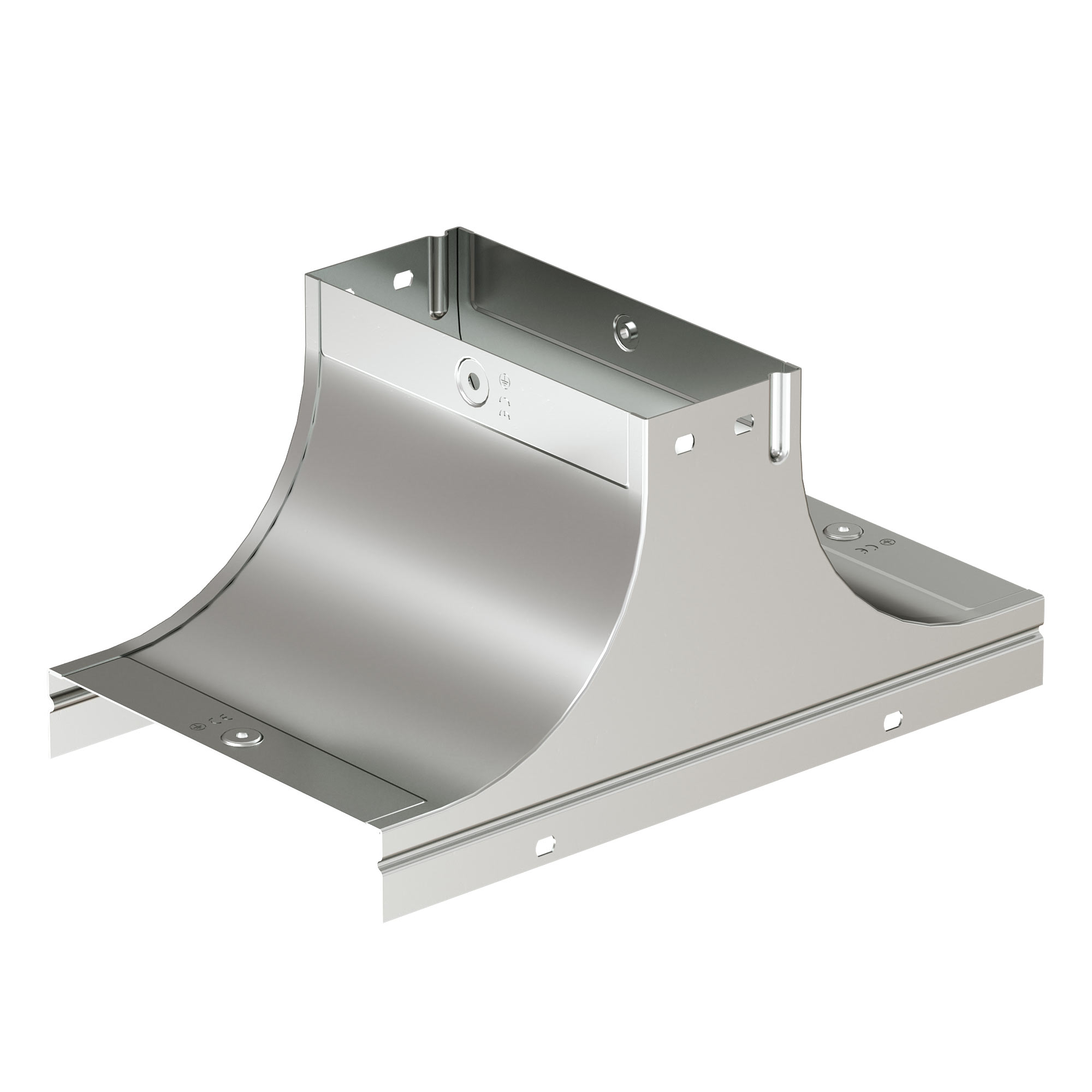

TS tapper-cover 400x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37206KHDZ

TS tapper-cover 400x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37206KHDZ
Colour Light grey
Surface protection Hot-dip galvanized
Height side wall, mm 80
Material Steel
Tray width in horizontal direction, mm 400
Tray width in vertical direction, mm 400
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Material quality Steel
Product type Covers for system accessories
Type of accessories Cover-branch TS
Height 80 mm
Thickness 1.0 mm
Material Hot-dip galvanized
Width 400 mm

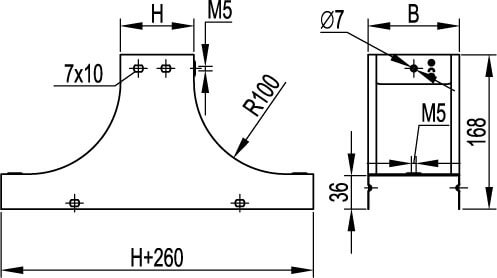

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
