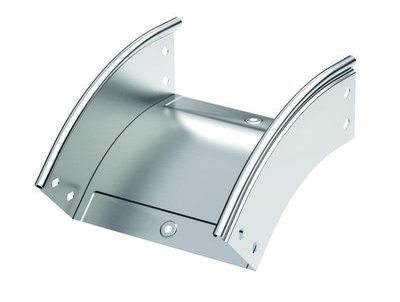

CD 45 external vertical angle 400x100, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36885KHDZ
CD 45 external vertical angle 400x100, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36885KHDZ
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 45° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 240 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 100 |
| Change of direction | Vertically descending |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | 45º vertical external bend |
| Height | 100 mm |
| Thickness | 0.8 mm |
| Material | Hot-dip galvanized |
| Width | 400 mm |
Kit accessory’s structure
The accompanying goods

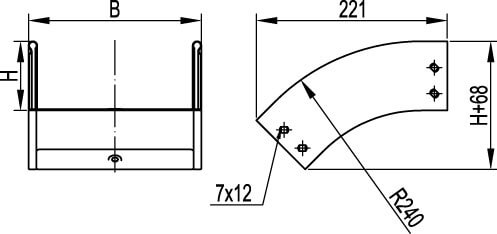

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
